Baomain NEMA L5-30R Extreme Weatherproof Locking Receptacle - 30A 125V IP67-Design Round Locking Cover

30 In Stock
$12.39
$12.39
Quantity

Ultimate "Extreme Protection" Series: Engineered for Harsh Environments

The Baomain Extreme Protection Series is our most robust electrical interface. Featuring a rotatable round locking cover and a professional-grade sealing system, this NEMA L5-30R receptacle is designed for locations where moisture, fine dust, and high vibrations are constant threats—such as marine docks, industrial wash-down areas, and professional pool systems.

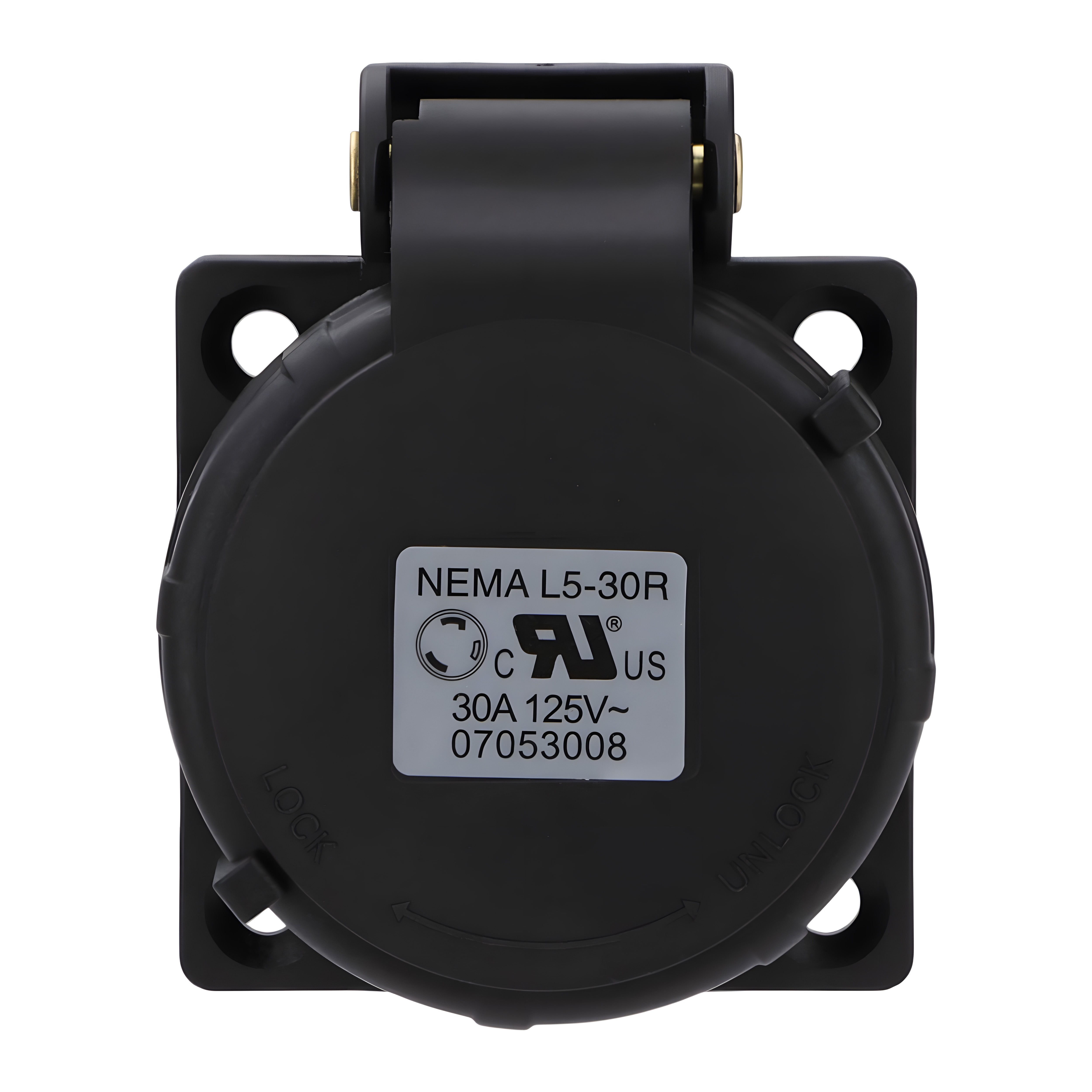

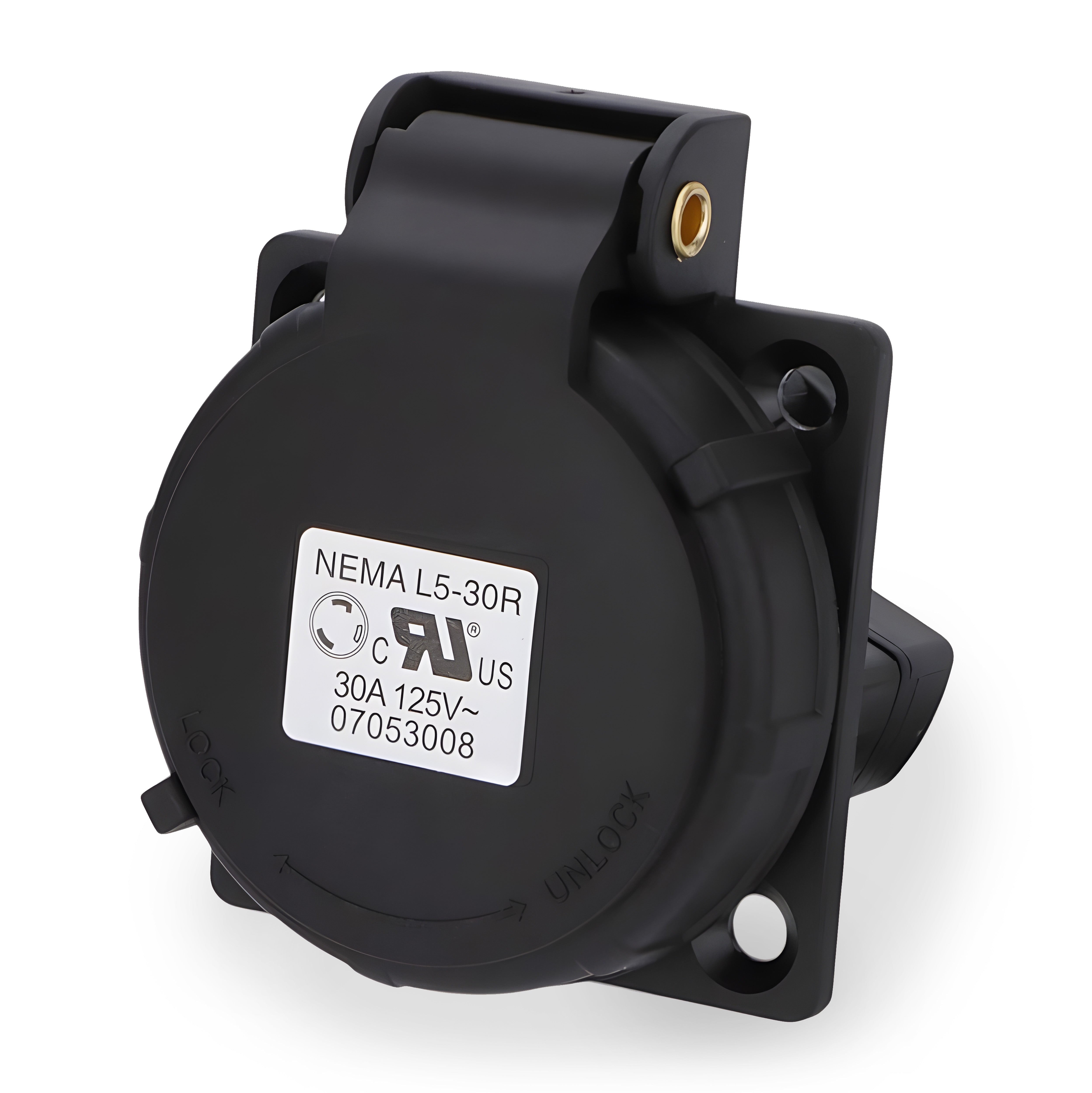

360° Superior Sealing Technology

Unlike standard flip-covers, our Round Twist-Lock Cover features an integrated internal gasket and a manual "Lock/Unlock" mechanism. Once rotated into the locked position, it creates an airtight and watertight barrier (IP67 equivalent), ensuring your critical systems stay powered even in the toughest conditions.

Key Features

  • Dual-Layer Moisture Barrier: Includes a pre-installed rear mounting gasket (soft foam seal). This essential pad creates a watertight seal between the receptacle flange and the mounting surface, preventing water from seeping into the electrical box.
  • cRUus Professional Certification: Fully recognized under cRUus standards (UL Recognized for US and Canada), guaranteeing peak fire resistance and electrical safety.
  • Mechanical Lock Security: The twist-lock interface provides a "set-and-forget" connection, eliminating accidental unplugs caused by gravity or heavy-duty motor vibrations.
  • Heavy-Duty Installation Kit: Comes with a dedicated hardware bag containing 4 sets of #8-32 stainless steel screws, nuts, and dual washers (flat & spring) for a rock-solid, vibration-proof mount.

Technical Specifications

NEMA Configuration L5-30R (Locking Type)
Electrical Rating 30 Amp, 125 Volt
Protection Level IP67 Equivalent (When Locked)
Certification cRUus Listed / UL Recognized
Material High-Impact Modified Nylon & Solid Brass

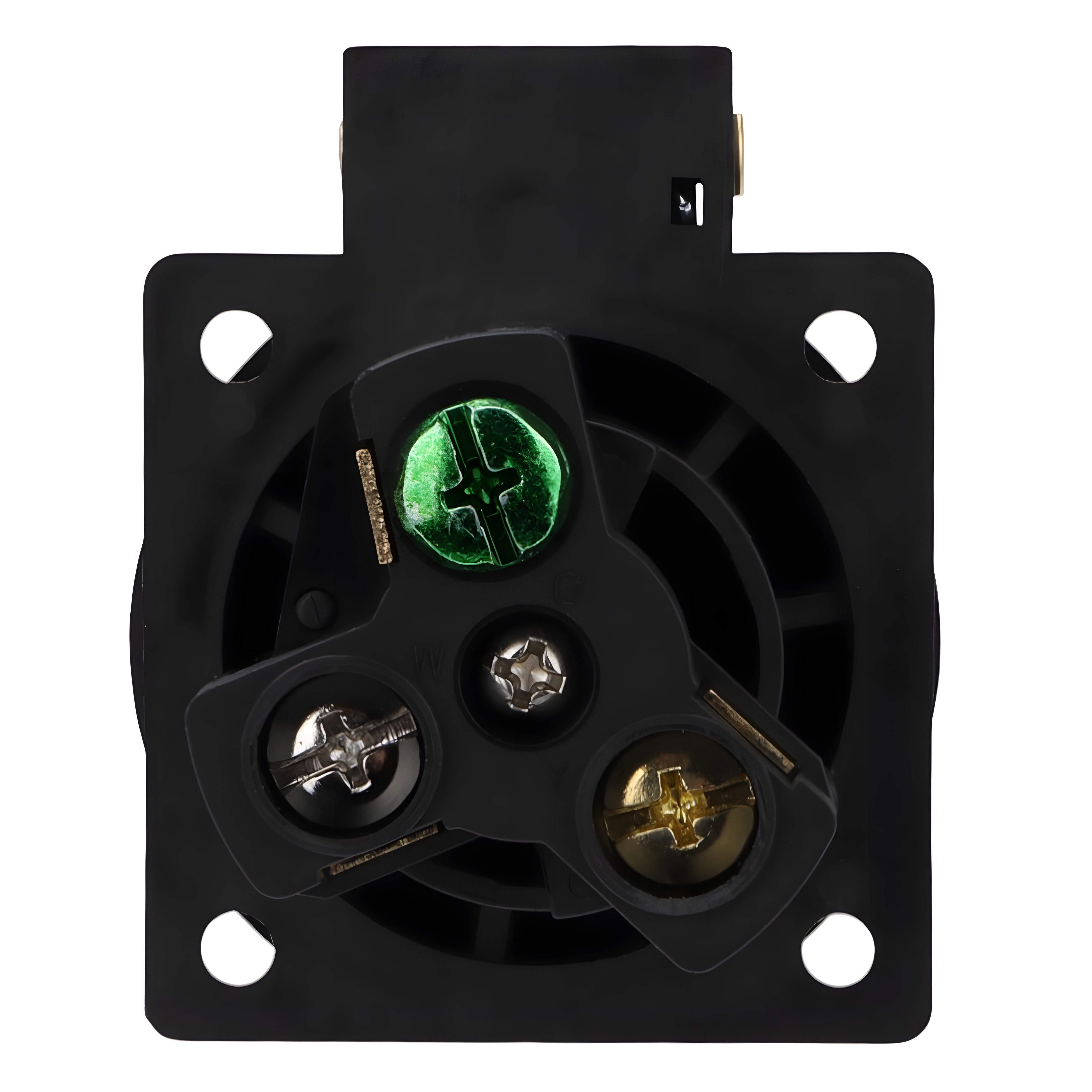

Simple Wiring Logic (L5-30R)

Color-coded terminals and embossed markings make professional wiring easy:

  • Green Screw (G): Safety Ground Wire.
  • Silver Terminal (W): Neutral Wire.
  • Brass Terminal (Y): Hot Lead Wire.

What's in the Box?

  • 1 x NEMA L5-30R Receptacle with Round Locking Cover
  • 1 x Pre-installed Rear Sealing Gasket (Foam Pad)
  • 4 x Sets of #8-32 Stainless Steel Mounting Hardware
  • 1 x Professional Installation Guide
