Baomain NEMA L6-30R Locking Receptacle - 30A 250V Industrial Grade Twist Lock Outlet
100 In Stock
- Regular price
- $9.39
- Sale price
- $9.39
- Regular price
-
Heavy-Duty Power Solution for High-Voltage Applications
The Baomain NEMA L6-30R Locking Receptacle is the industrial standard for secure, high-voltage power connections. Specifically engineered for 250V 30 Amp systems, this UL Listed outlet provides maximum safety and durability for HVAC units, industrial machinery, and high-efficiency pool pumps.
Why Choose a Twist-Lock Connection?
In high-vibration environments, standard straight-blade plugs can loosen, leading to dangerous electrical arcing. Our Twist-Locking mechanism ensures that once the plug is rotated, it is mechanically locked in place—providing "Set and Forget" security for continuous-duty motors and high-load heaters.
Key Features
- Industrial-Grade Build: Constructed with a high-impact modified nylon body that resists chemicals, heat, and physical abuse. Solid brass contacts ensure maximum conductivity.
- UL Listed Safety: Fully compliant with NEMA L6-30R standards. Engineered for professional workshops and residential high-power installations.
- Versatile Application: The go-to choice for EV chargers, HVAC systems, large air compressors, commercial welders, and 240V/250V pool heat pumps.
- Complete Installation Kit: Includes 2 sets of 304 stainless steel hardware (screws, nuts, and washers) and a clear wiring diagram for a hassle-free, flush-mount finish.
Technical Specifications
| NEMA Configuration | L6-30R (Locking Type) |
| Electrical Rating | 30 Amp, 250 Volt (Compatible with 240V) |
| Type | 2-Pole, 3-Wire Grounding |
| Material | High-Impact Nylon, Solid Brass Contacts |
| Certification | UL Listed |

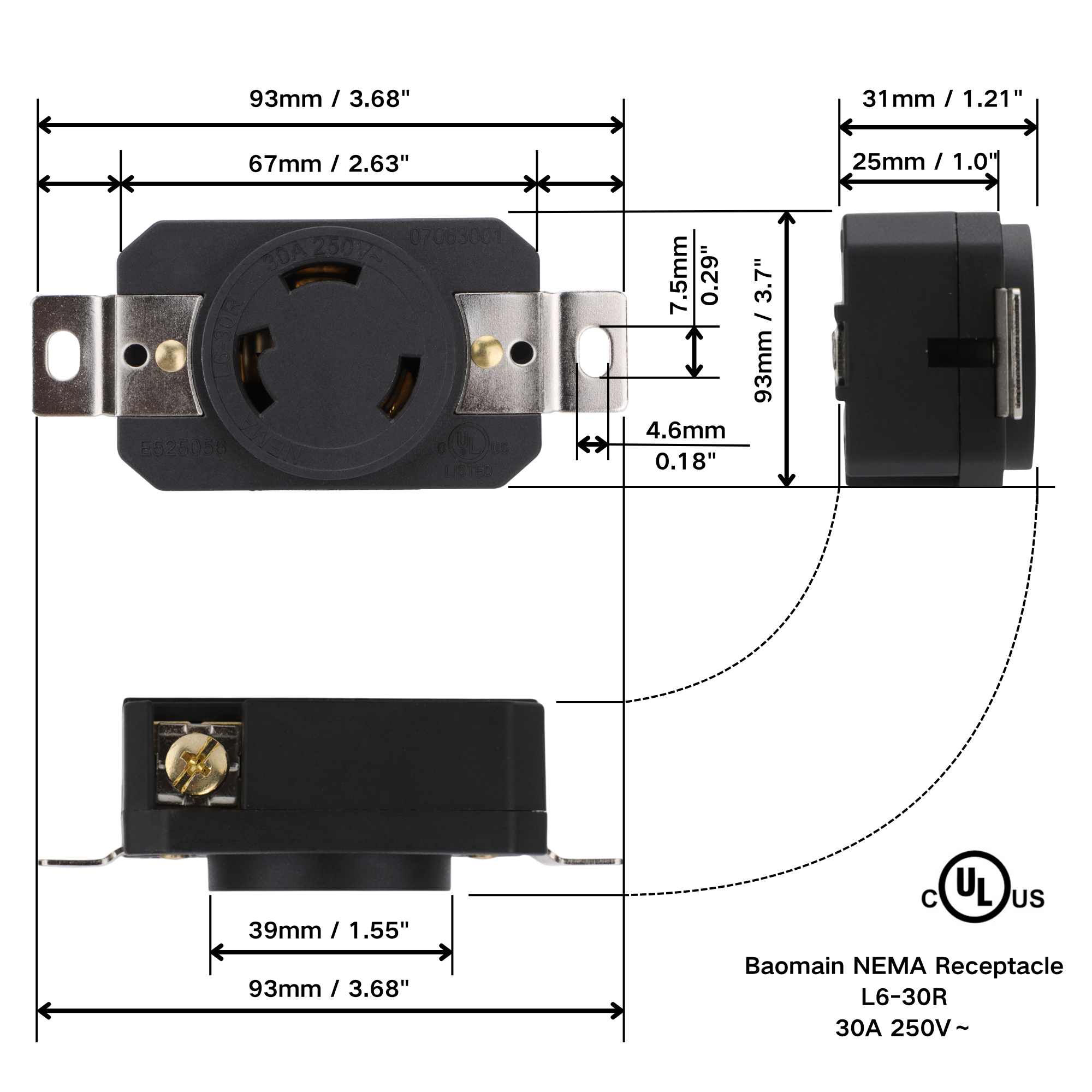

| Dimensions | 3.67"L x 1.69"W |
What's in the Box?
- 1 x NEMA L6-30R Receptacle

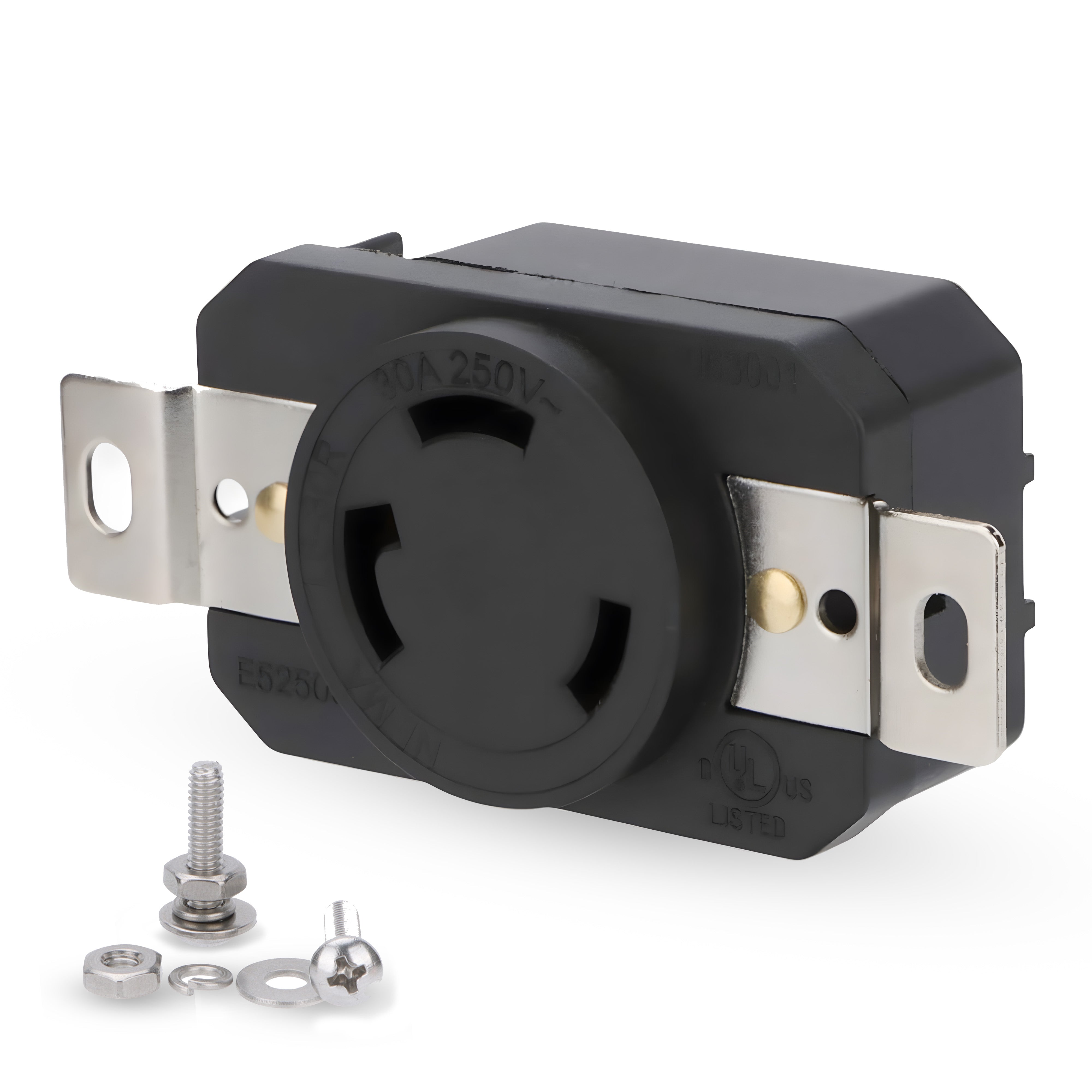

- 2 x Sets of 304 Stainless Steel Hardware
- 1 x Professional Wiring Diagram
