Baomain NEMA L6-30R Weatherproof Locking Receptacle - 30A 250V cRUus Certified Outlet

30 In Stock
$10.99
$10.99
Quantity

Heavy-Duty 250V Power Solution with Weatherproof Protection

The Baomain Pro-Series NEMA L6-30R Receptacle is a professional-grade power interface designed for high-voltage applications in demanding environments. Fully cRUus Certified, this 250V 30A outlet offers the perfect balance of electrical safety, fire resistance, and rugged durability for both industrial and residential use.

Quick-Flip Weatherproof Shield

Equipped with a spring-loaded Square Flip-Top Cover, this unit provides effortless, one-handed access while maintaining a clean, splash-proof seal when closed. It is designed to meet IP44 protection standards, shielding internal contacts from rain, dust, and debris—making it ideal for RV pedestals, marine docks, and outdoor generator setups.

Key Features

  • High-Voltage Twist-Lock Security: The mechanical locking mechanism ensures a rock-solid connection that won't loosen due to gravity or the high vibrations of industrial motors and portable generators.
  • Industrial-Grade Build: Constructed with a high-impact modified nylon housing and solid brass contacts for maximum heat resistance and superior electrical conductivity.
  • Safety Certified: Fully recognized under cRUus standards for North American markets, providing peace of mind for professional electricians and DIY enthusiasts alike.
  • Complete Pro Installation Kit: Includes 4 sets of #8-32 stainless steel screws, nuts, and dual-function washers (flat & spring) to ensure a vibration-proof, flush-mount fit.

Technical Specifications

NEMA Configuration L6-30R (Locking Type)
Electrical Rating 30 Amp, 250 Volt
Certification cRUus Listed / UL Recognized
Material Heat-Resistant Nylon & Solid Brass
Protection Rating IP44 Equivalent (Splash-Resistant)

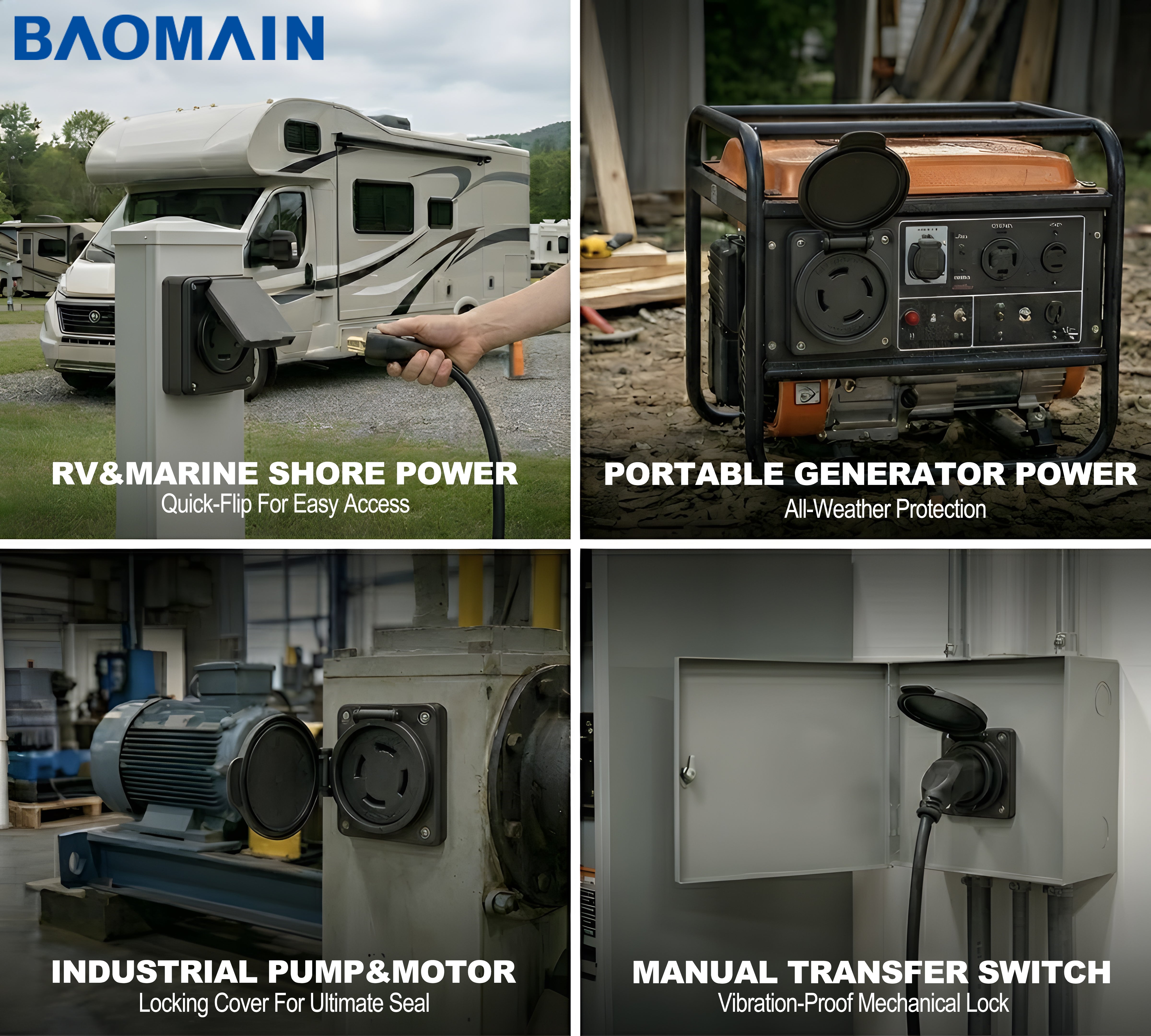

Common Applications 240V/250V Generators, Marine Docks, HVAC, Pool Pumps

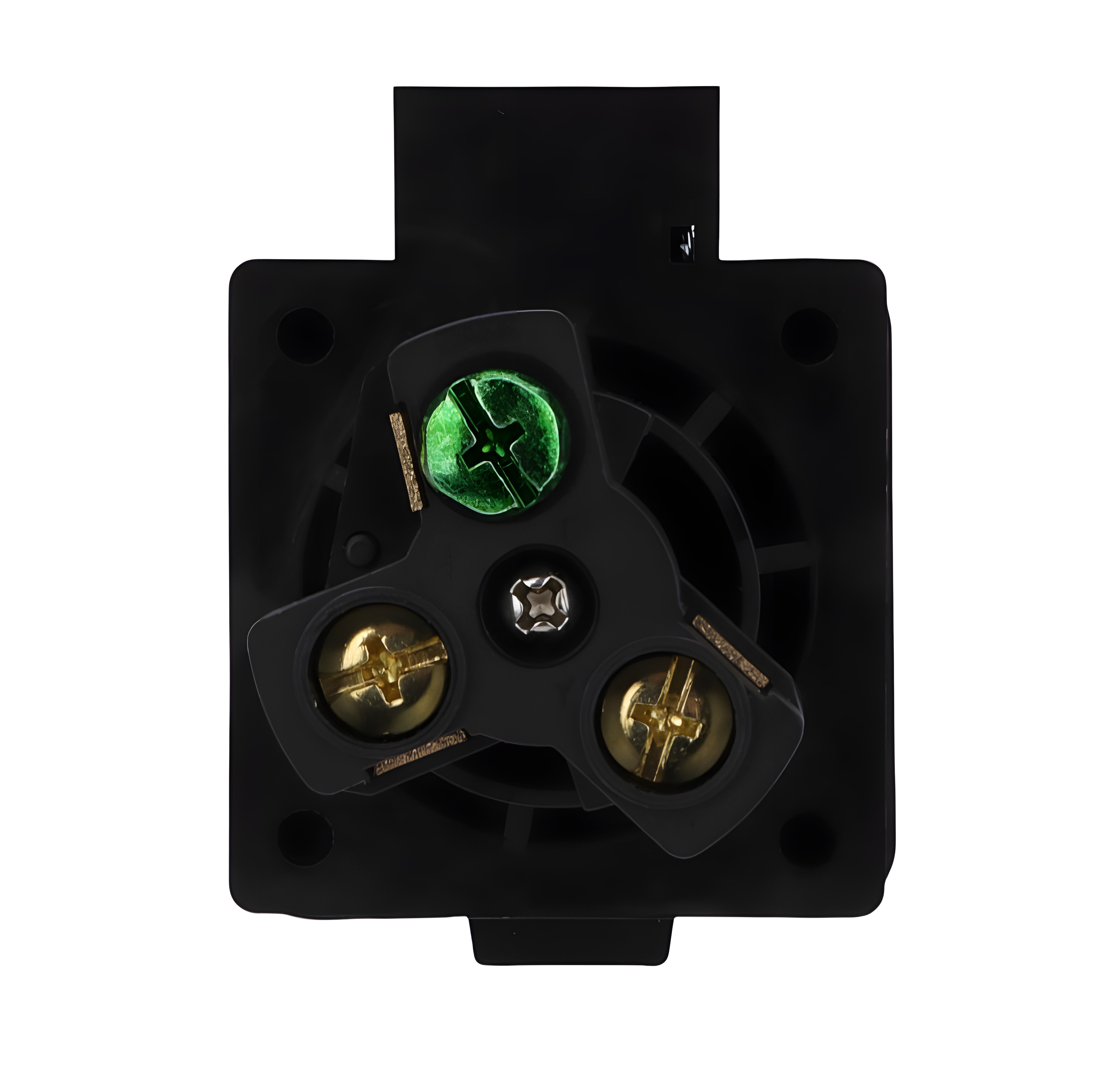

Simple Wiring Guide (250V Setup)

Achieve a safe and fast installation by following the markings on the rear housing:

  • Green Screw (G): Safety Ground Wire
  • X & Y Terminals: Hot Lead Wires

What's in the Box?

  • 1 x NEMA L6-30R Weatherproof Receptacle
  • 1 x Pre-installed Rear Sealing Gasket (Foam Pad)
  • 4 x Sets of #8-32 Stainless Steel Mounting Hardware
  • 1 x Professional Wiring Instructions
