Baomain Photoelectric Switch Sensor, E3Z-T62 DC 10-30V IR Photoelectric Infrared Sensor Switch NPN Output Sensing Distance 20-500cm for Automatic Equipment

  • $19.29
    Unit price per
Shipping calculated at checkout.

  • Voltage: 10-30VDC
  • Standard sensing object: Any object above 1mm (except colorless and transparent)
  • Pointing angle: Projection angle: 3-5°
  • Light source (wavelength): Infrared light (950)
  • Circuit protection: Reverse connection protection, short circuit protection, surge protection
  • Action state: Switchable L(NO), D(NC)
  • Current consumption/hour: <1.5W
  • Service life: 2,000,000
  • Response time: <2ms

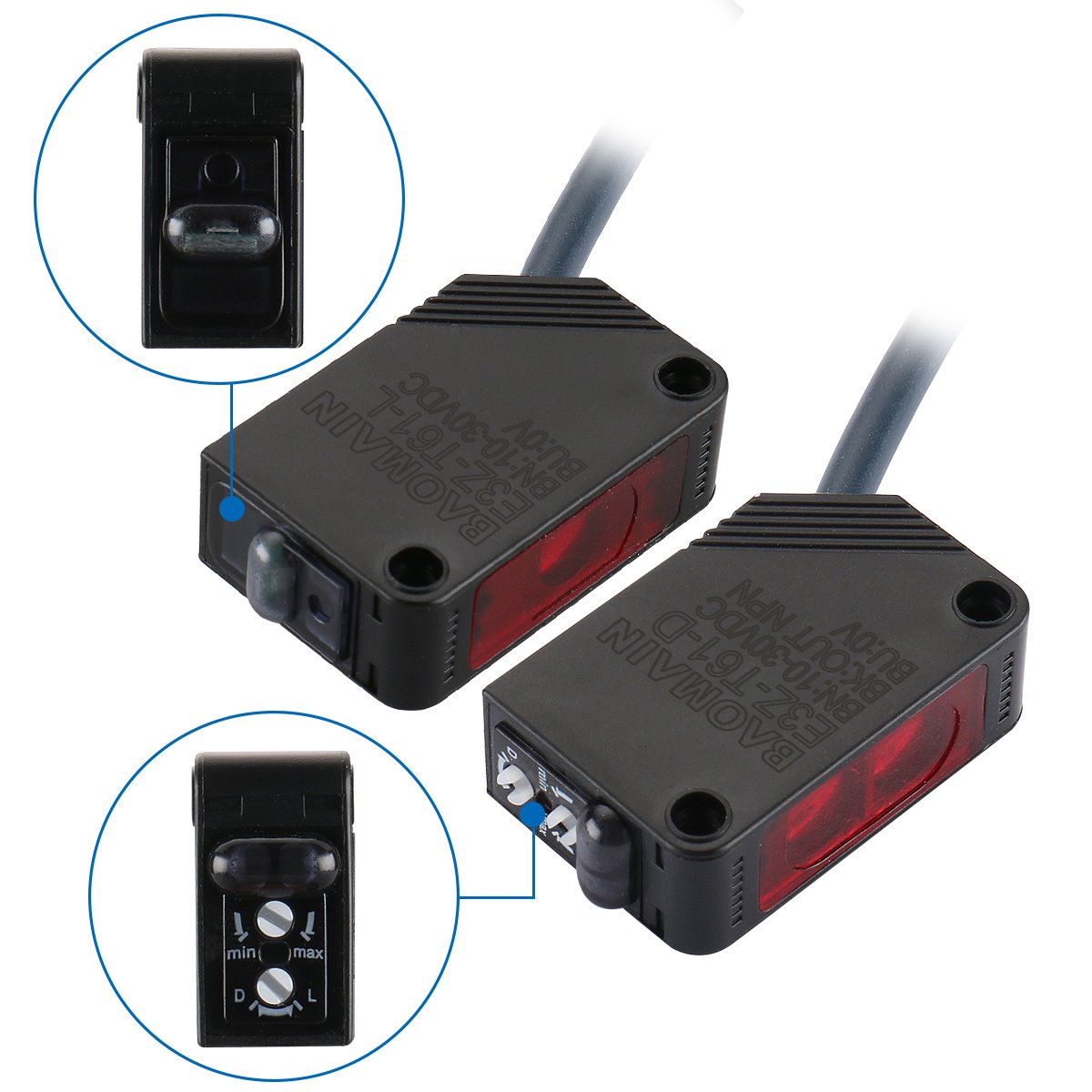

  • Sensitivity adjustment: Tail knob adjustment: clockwise becomes farther, counterclockwise becomes closer
  • Use environment illuminance: Affected by the illuminance of the light surface incandescent lamp, the distance is weak
  • Temp: -25~80°C
  • environment humidity: 35~80%
  • Insulation resistance: >20MΩ
  • shock: 10~50HZ 1.5mm double amplitude
  • Protection: IP65

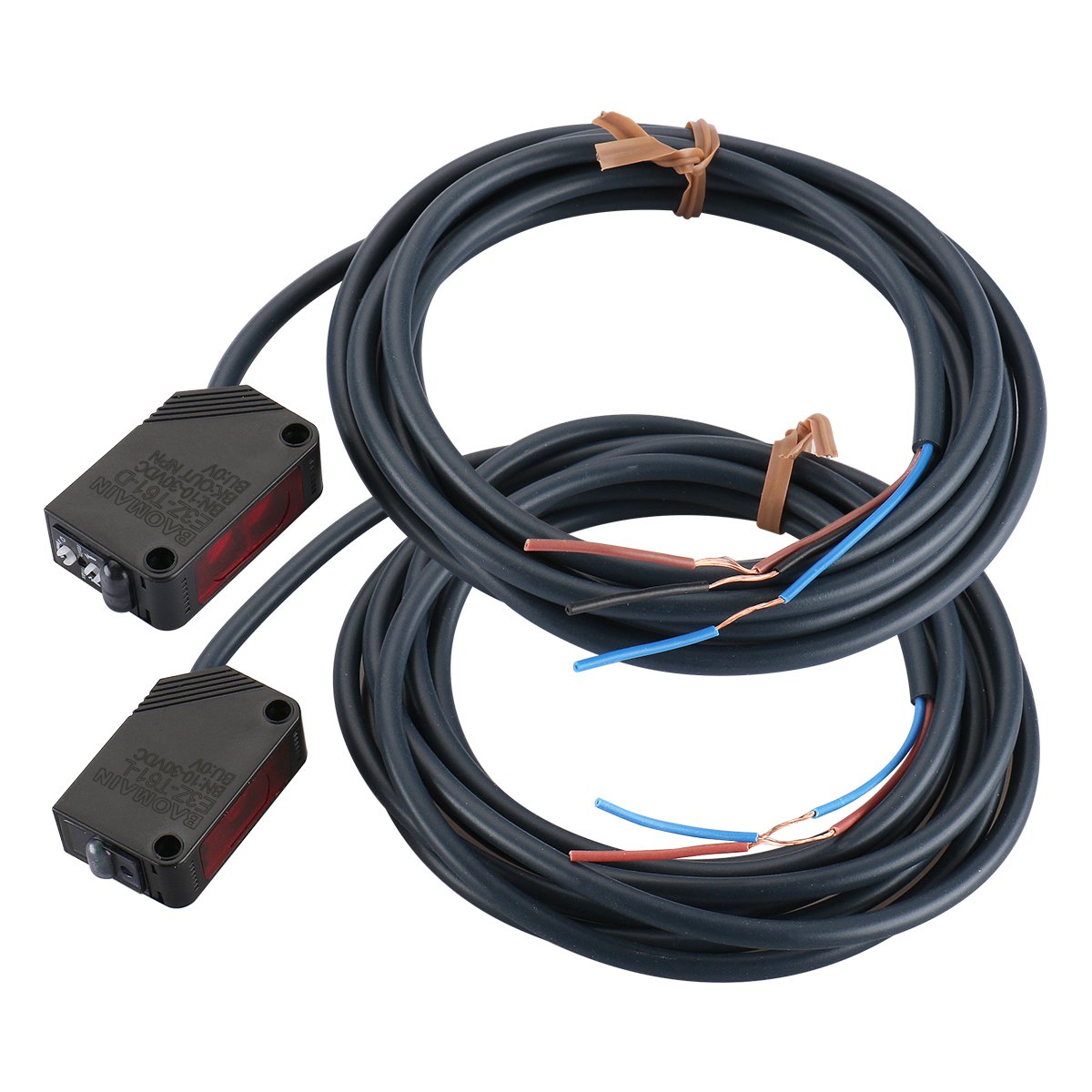

  • Cable Length: 2m
  • Material: shell: ABS; lens: Methacrylic resin; Knob: POM; Cable: PVC
