Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa
Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa
Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa
Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa
Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa
Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa
Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa

Baomain Pneumatic Air Cylinder with magnets SC 80 x 200-S PT 3/8'', Bore: 80mm, Stroke: 200mm(8''), Screwed Piston Rod Dual Action 1 Mpa

Shipping calculated at checkout.

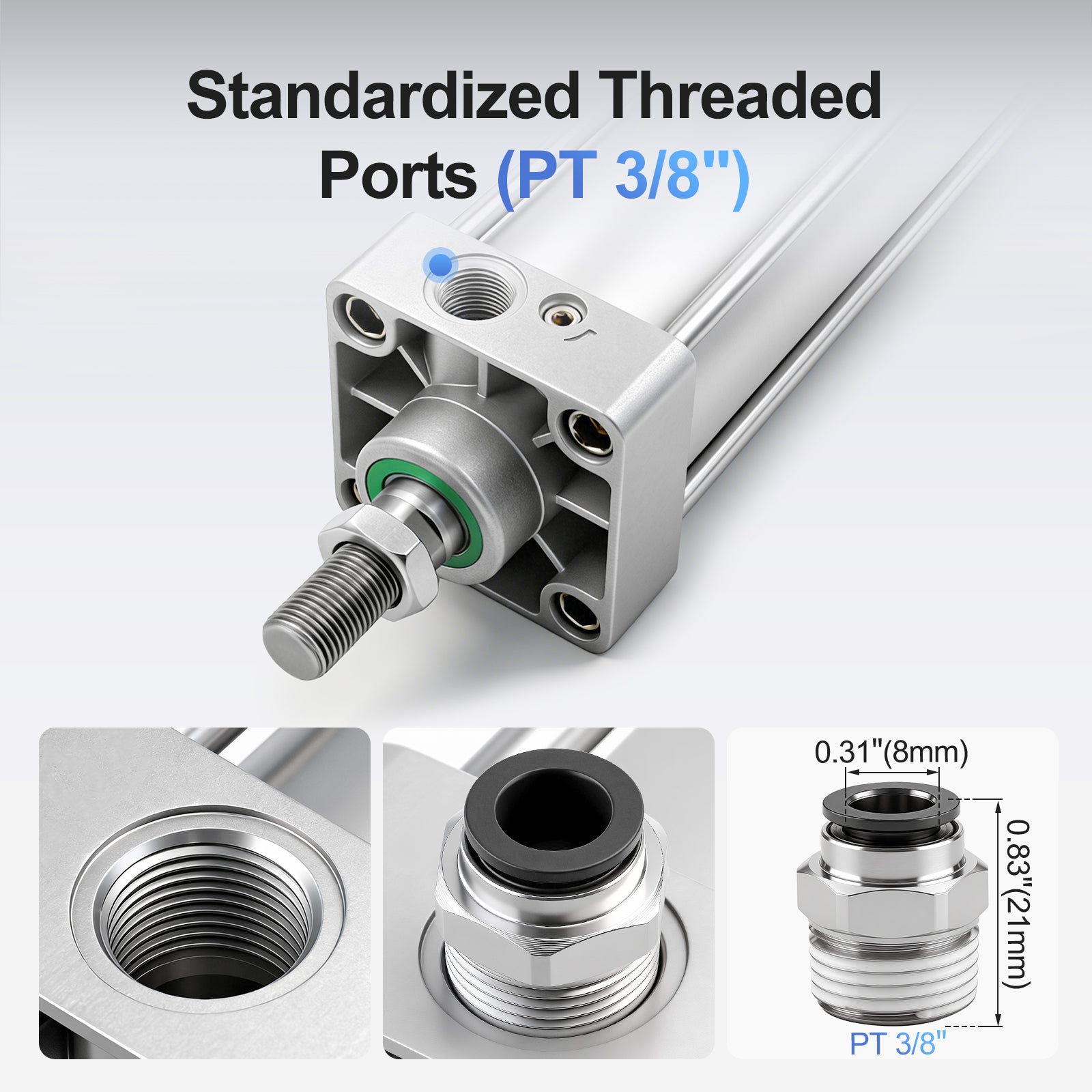

  • Port size: PT 3/8

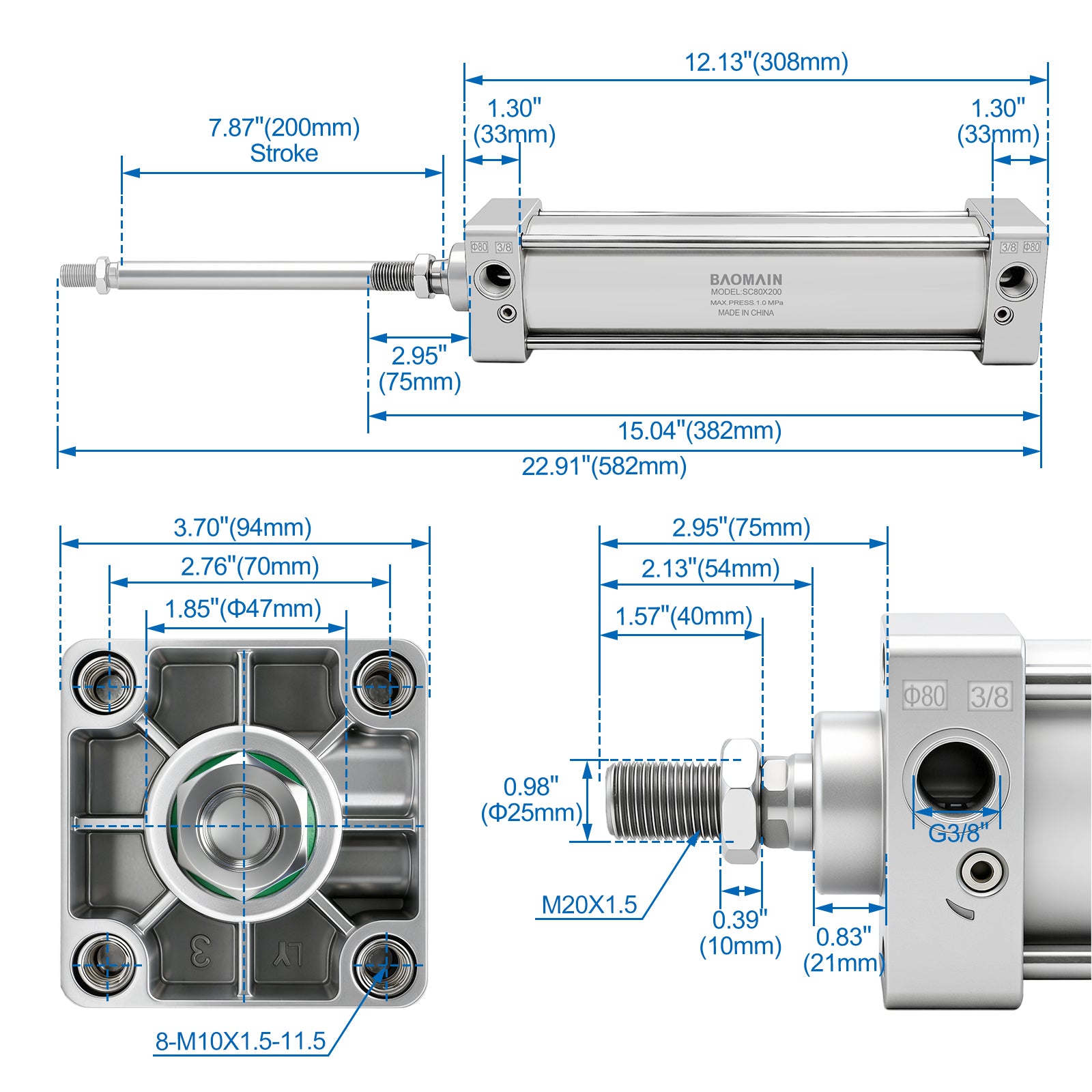

  • Bore: 80mm, Stroke: 200mm /8''
  • Insert the magnets.
  • Max. theoretical force: 450Kgf; Max Pressure: 1.0 MPa
  • Action Type: Double Acting; Rod Type: Single Rod
  • Piston port size: M20X1.5
  • Weight: 3.5kg
