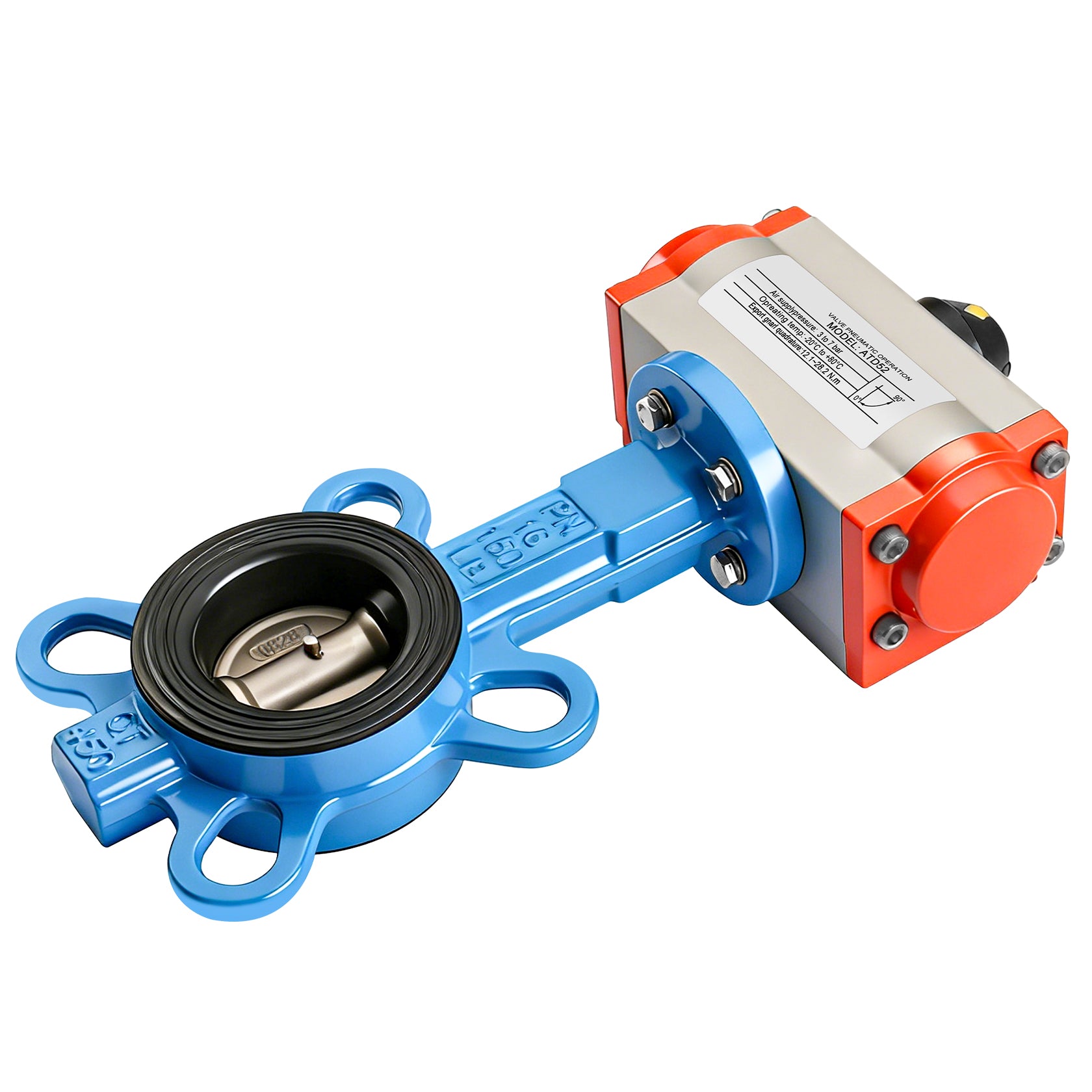

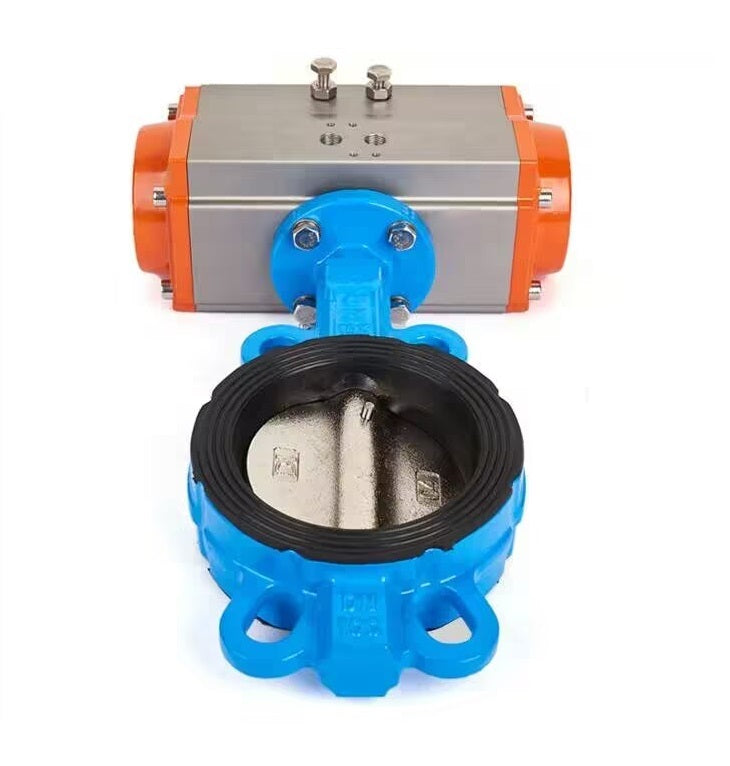

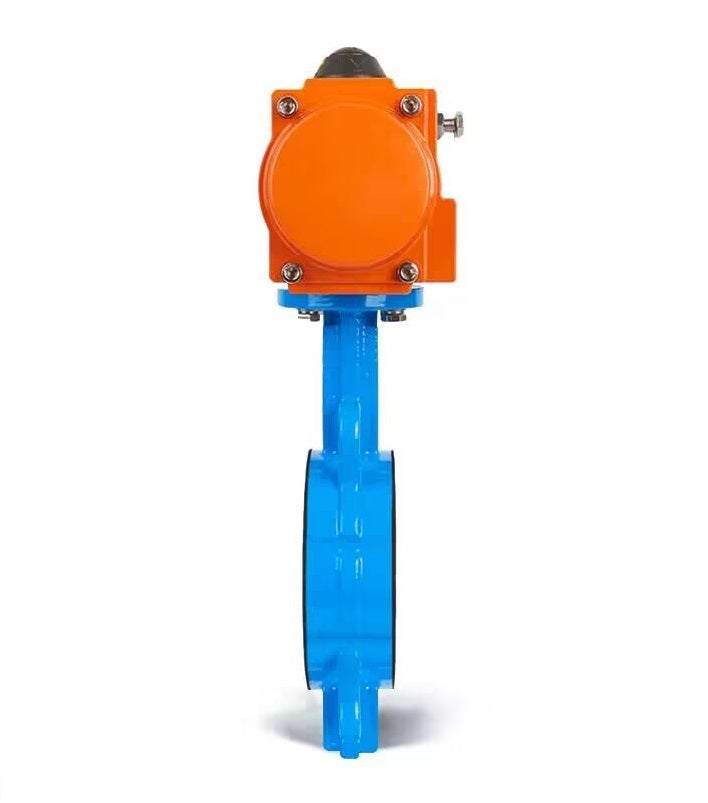

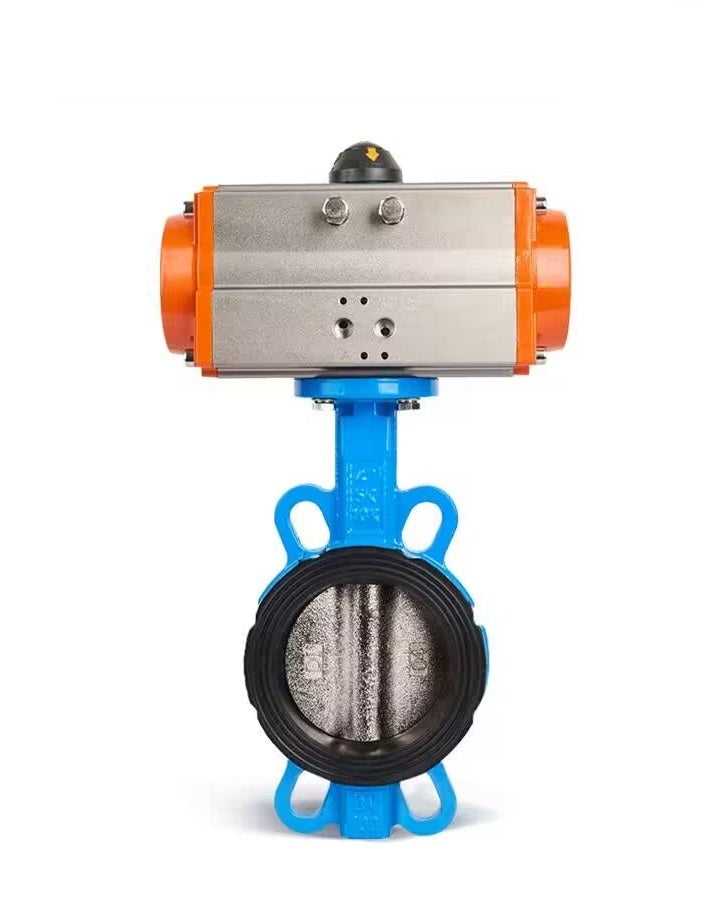

Baomain Pneumatic Valve DN40/DN50, Wafer type spherical lnk 304 stainless steel Butterfly Valve, Quick shut-off valve suitable for Industrial Fluid Control, Valve Pneumatic Operation

10 In Stock
$102.39
$102.39
Type

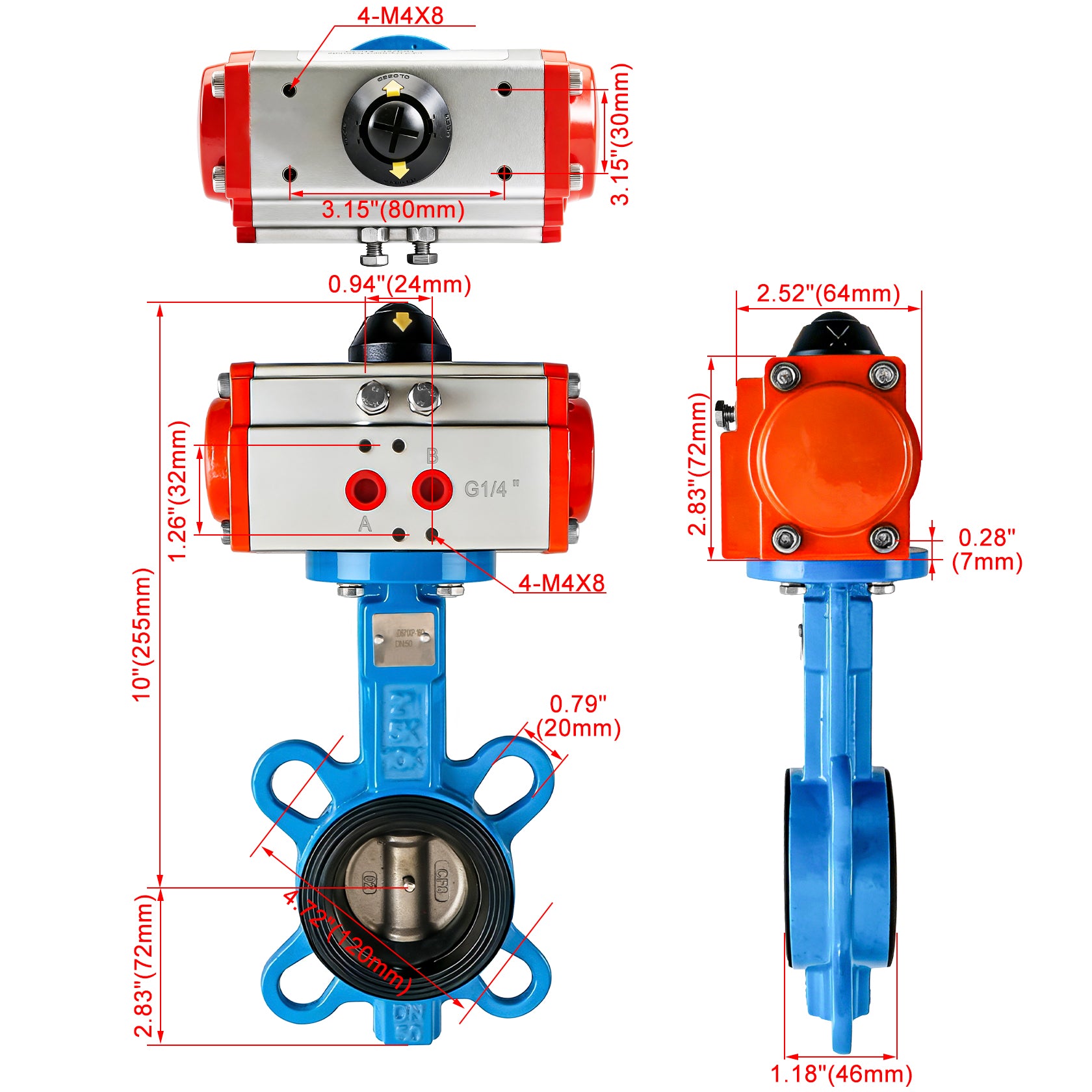

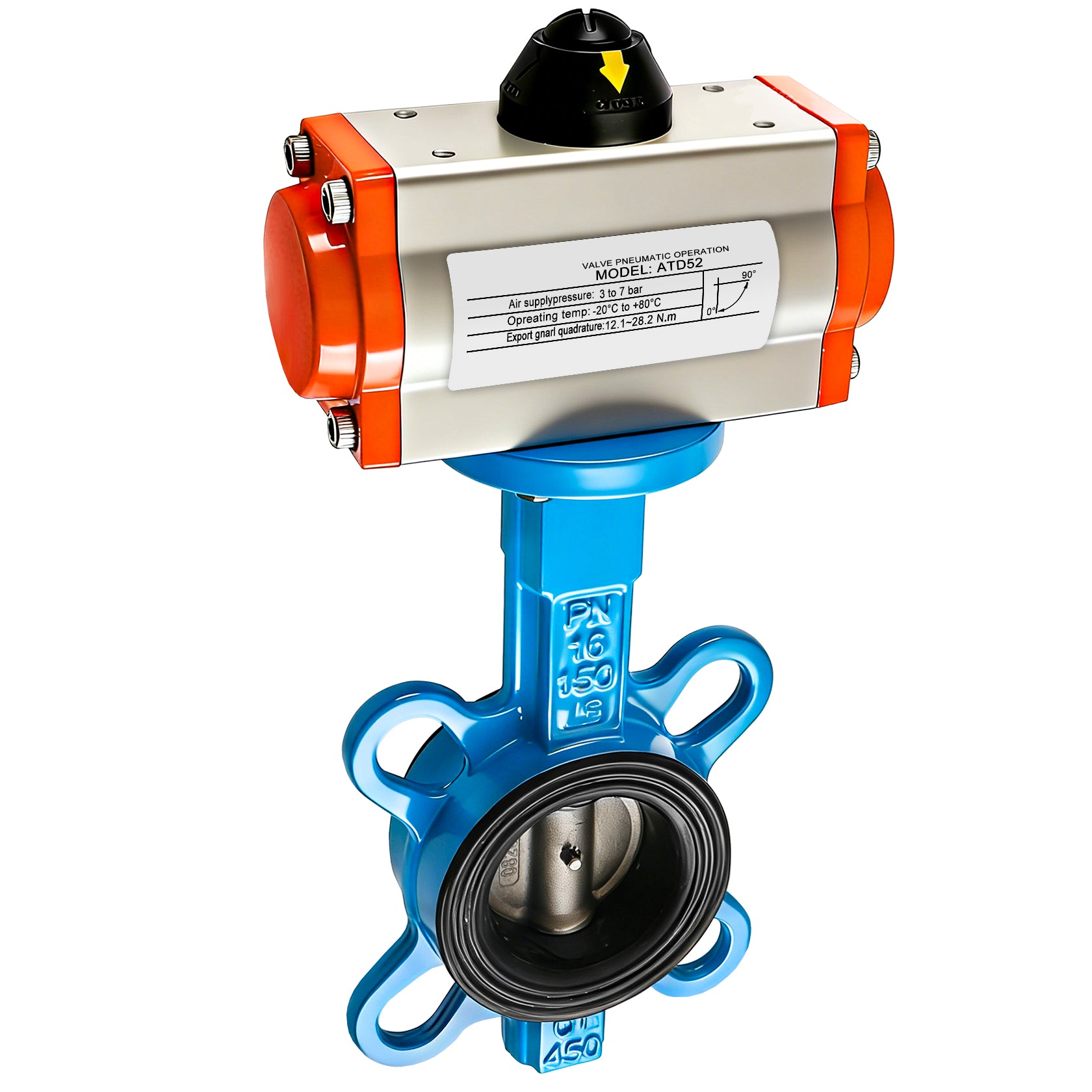

  • Model: D671XP-16Q-DN40
  • Port size : G 1/4''
  • Nominal pressure: 1.6Mpa
  • Air supply pressure: 3 to 7 bar
  • Export gnarl quadrature: 12.1~28.2 N.m
  • Operating Temperature: -20°C~ +80°C
  • Applicable Quality: Water
  • Weight: 3.0 KG

Double-Acting Actuator Description

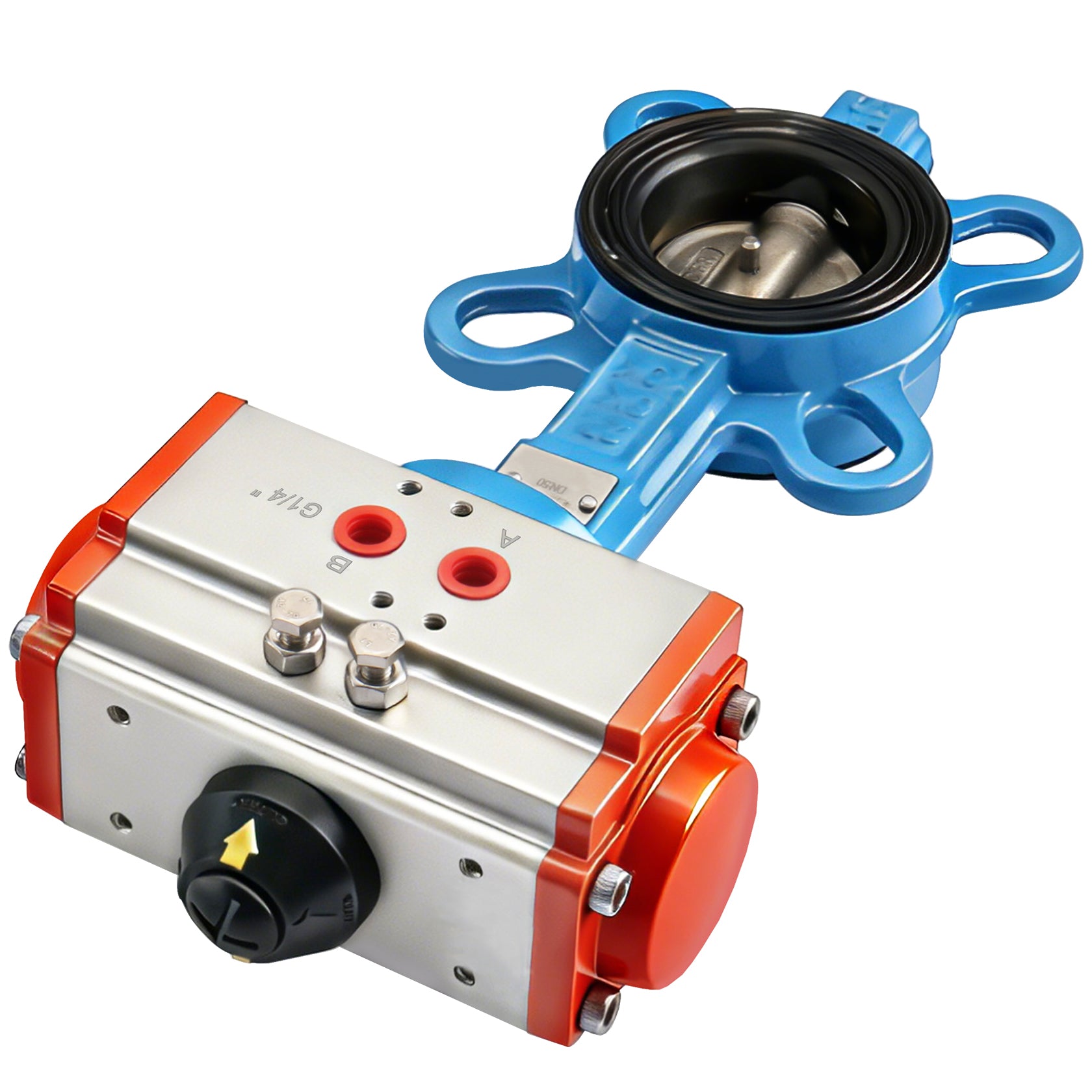

1) Compressed air enters through Port A, causing the left and right pistons to move in opposite directions. The output shaft rotates counterclockwise, opening the valve. Air from both sides of the pistons is discharged through Port B.
2) Compressed air enters through Port B, causing the left and right pistons to move in opposite directions. The output shaft rotates counterclockwise, closing the valve. Air from both sides of the pistons is discharged through Port A.
