Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE
Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE

Baomain Solar PV Fuses, 1500 VDC gPV Type Fuse Link BMPV-32L,10 X 85 mm 50kA,1A/2A/3A/4A/5A/6A/8A/10A/12A/15A/16A/20A/25A/30A/32A/35A,Photovoltaic Fuses, CE

Shipping calculated at checkout.
  • Model : PV-32L
  • Type: Fast Blow
  • Shape: Cylindrincal
  • Rated Voltage : 1500 VDC

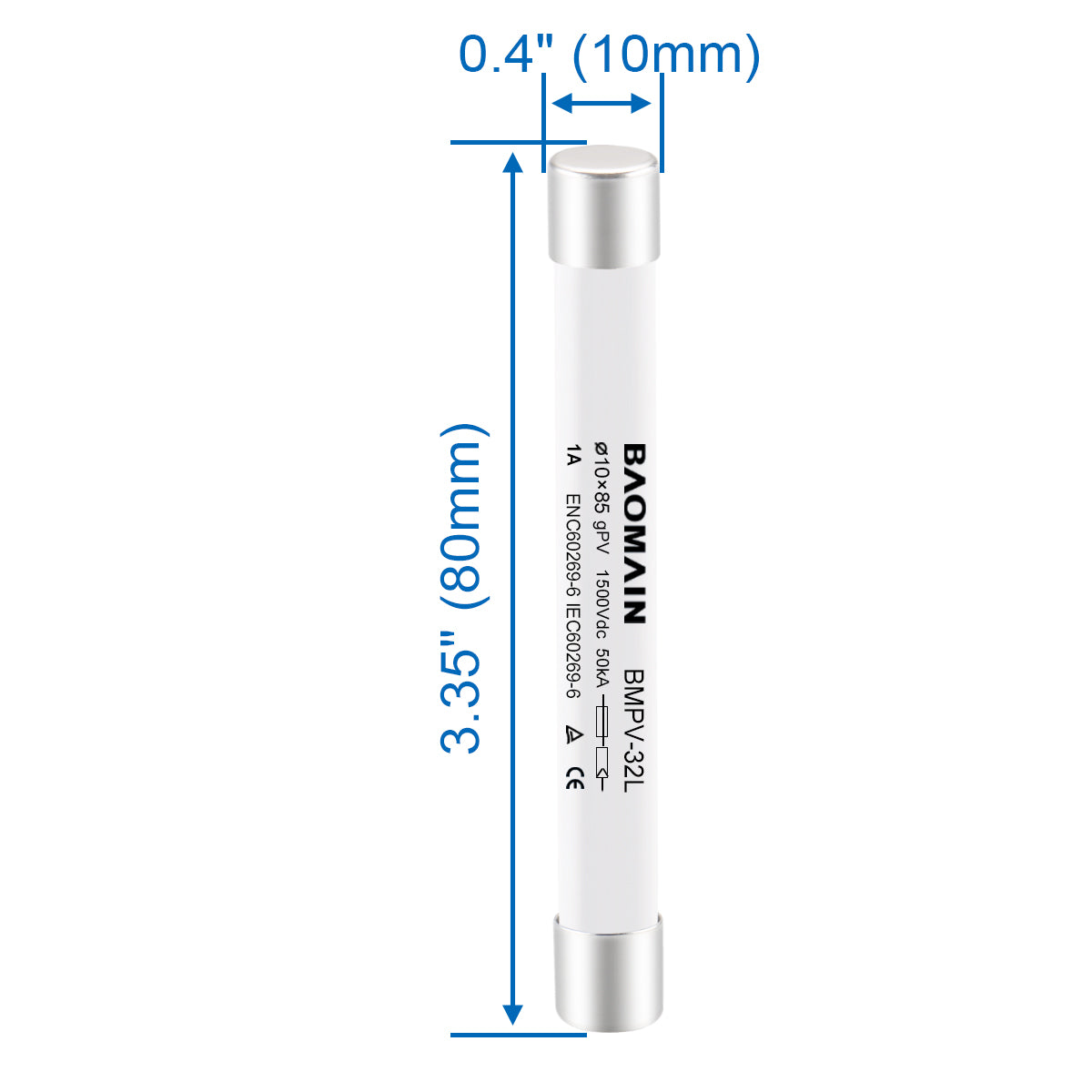

  • Size : 10 x 85mm/ 0.39" x 3.35" (D*L)
  • Package Content :  Ceramic Fuses
  • Breaking Capacity: I1=50kA
  • Watts Loss(w): ≤7
  • Standard: IEC60269-6,GB/T13539.6,CE listed
  • With forced arc extinguishing characteristics
  • Against damage due to over-load and short circuit current.
  • Cylindrical fuse link with cylindrical contact caps is designed for protecting electrical distributing with rated current up to according Amp.
