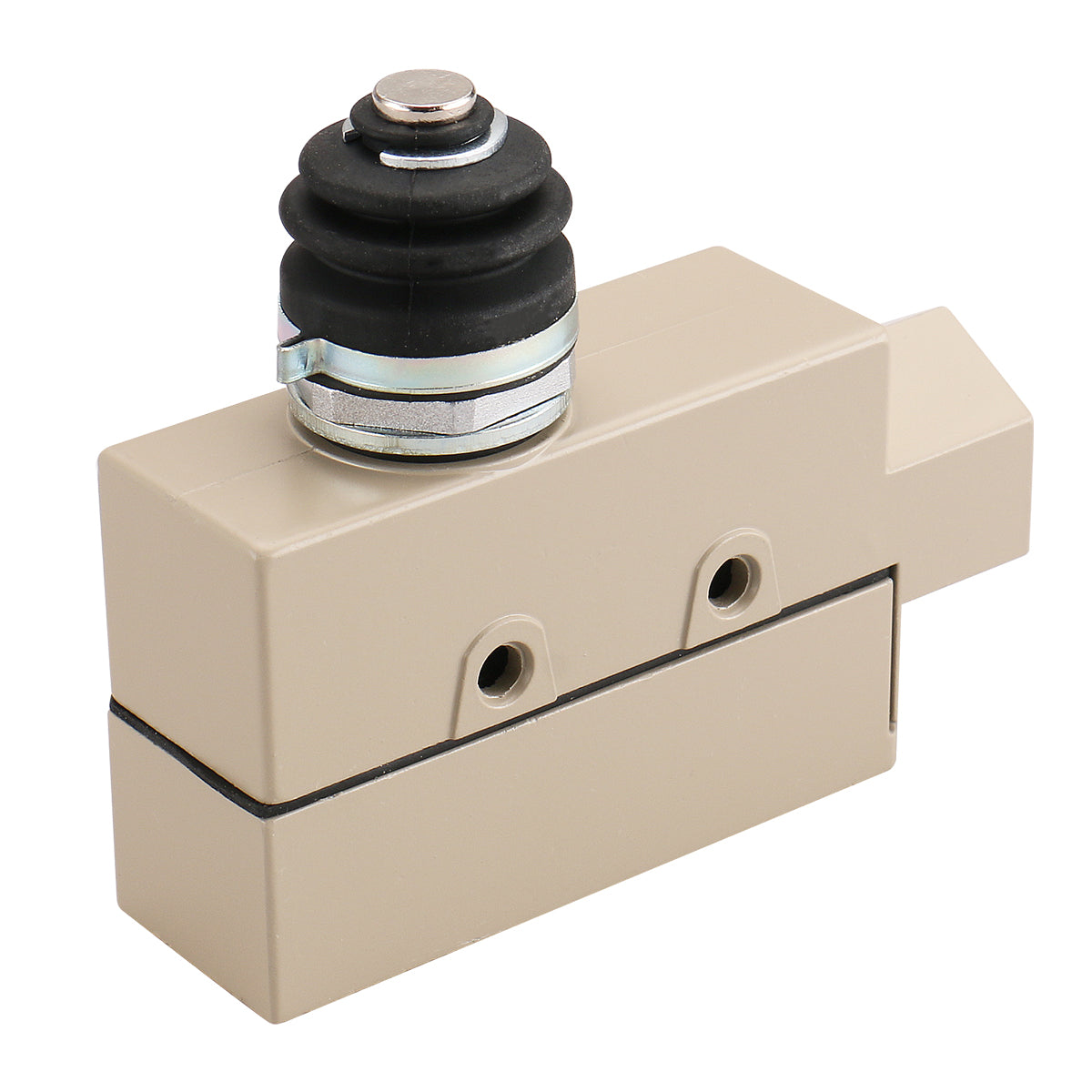

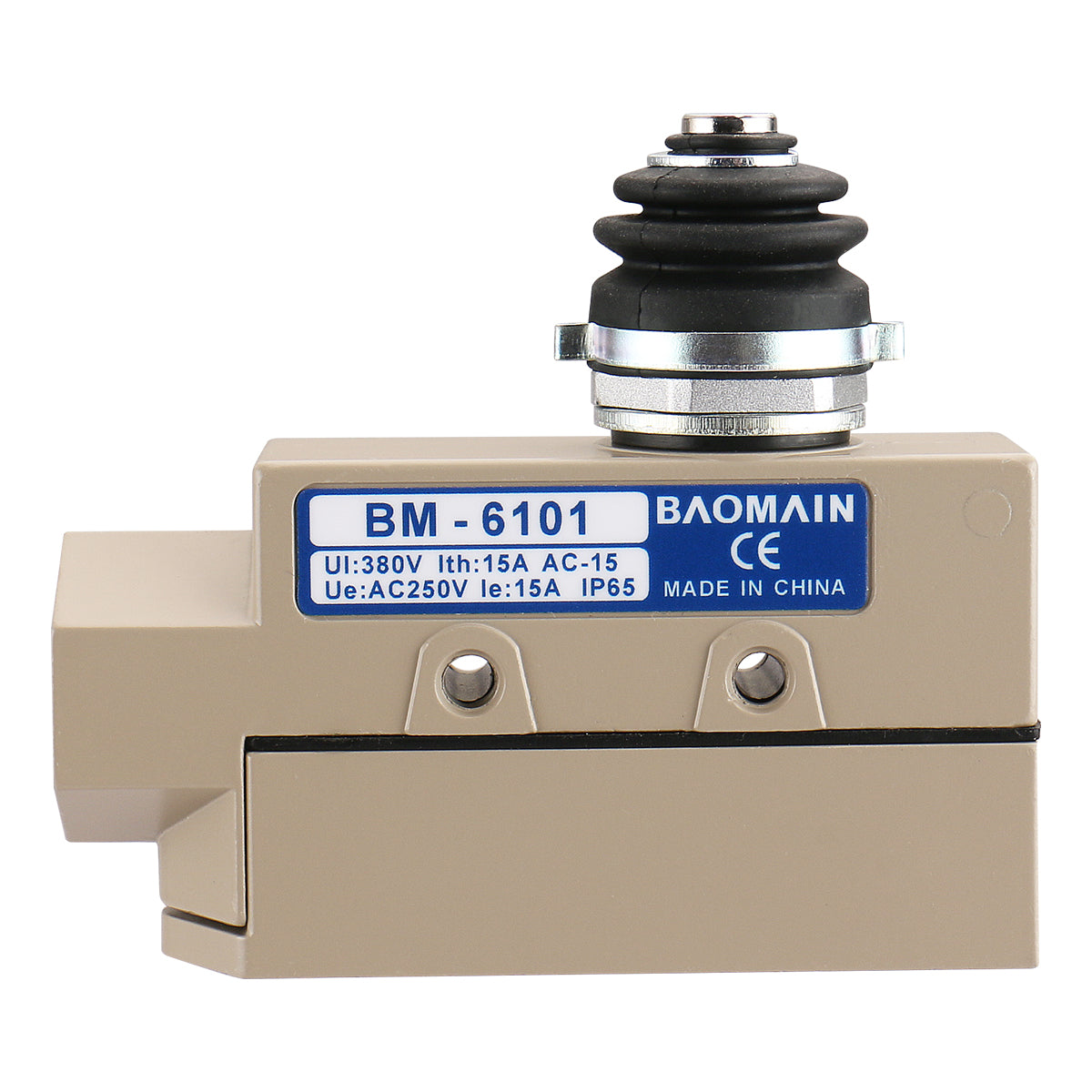

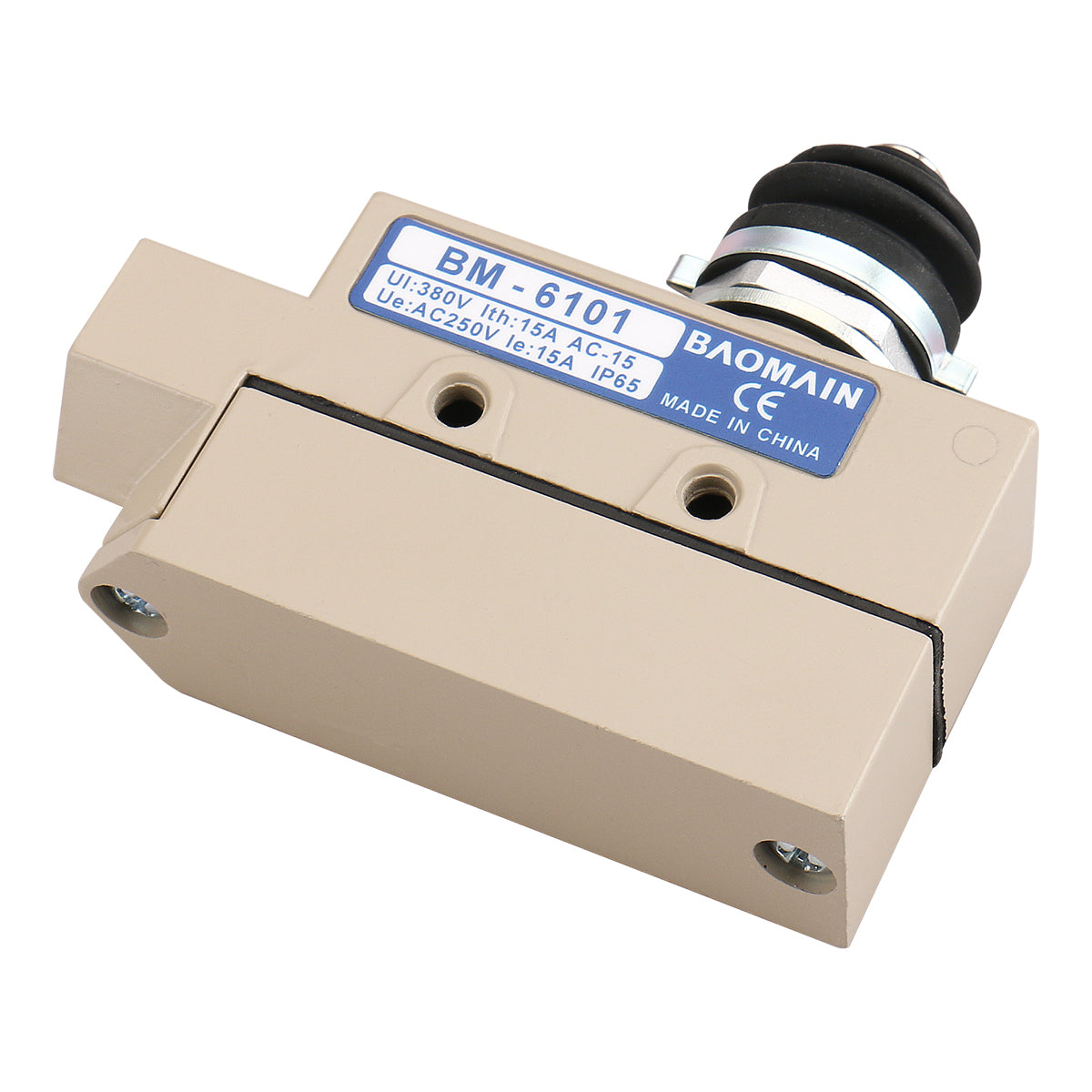

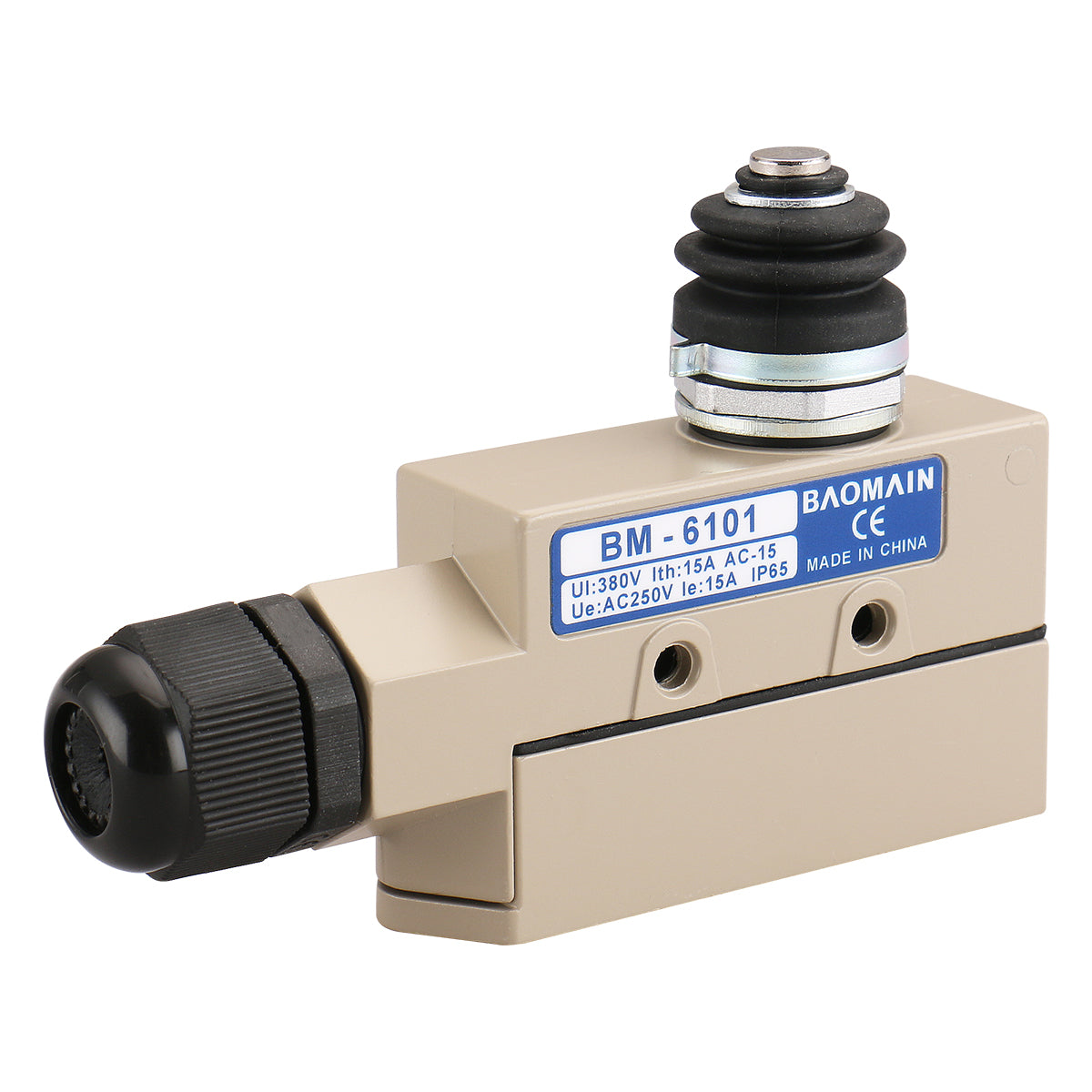

Baomain Plunger Limit Switch BM-6101 (TZ-6101) 15A/250VAC for Push & Pull Door/Roll-up Door
Baomain Plunger Limit Switch BM-6101 (TZ-6101) 15A/250VAC for Push & Pull Door/Roll-up Door
Baomain Plunger Limit Switch BM-6101 (TZ-6101) 15A/250VAC for Push & Pull Door/Roll-up Door
Baomain Plunger Limit Switch BM-6101 (TZ-6101) 15A/250VAC for Push & Pull Door/Roll-up Door
Baomain Plunger Limit Switch BM-6101 (TZ-6101) 15A/250VAC for Push & Pull Door/Roll-up Door
Baomain Plunger Limit Switch BM-6101 (TZ-6101) 15A/250VAC for Push & Pull Door/Roll-up Door

Baomain Plunger Limit Switch BM-6101 (TZ-6101) 15A/250VAC for Push & Pull Door/Roll-up Door

Shipping calculated at checkout.

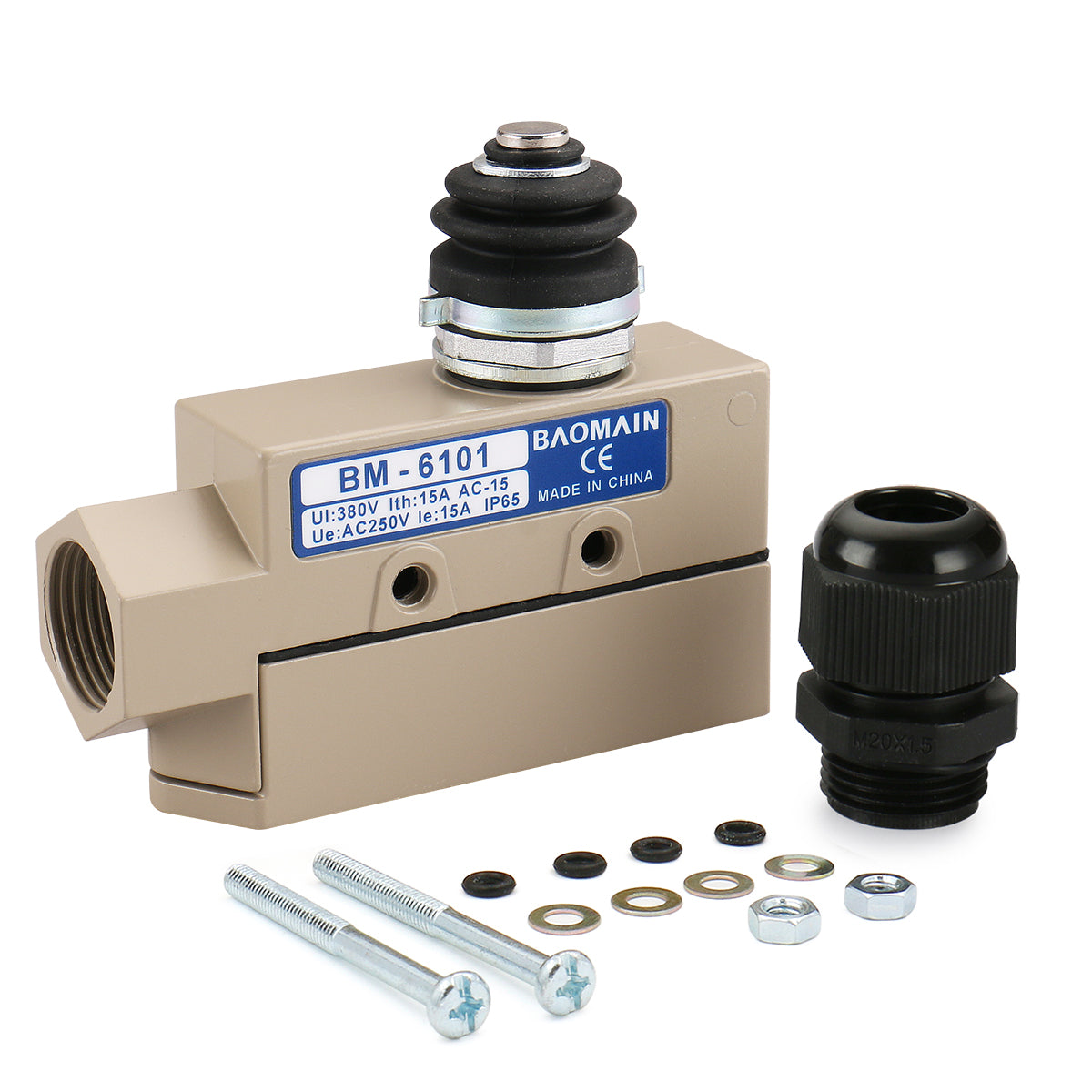

Built-in BM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof. It is the same as BM micro switch in the rated value and characteristics. Various of actuators that are taken convenience for using. Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut.

  • Type of the head: Metal cylinder
  • Power of starting: 350
  • Power of release: 115
  • Switching position (mm): 0.5mm
  • Rated current In(А): 15A active load. 5A inductive load
  • Insulation resistance: 100
  • Rated voltage: 250V
  • IP code: IP65 Waterproof
  • Section of the power supply conductor: up to 1.5mm2
  • Standards: GB14048.5
