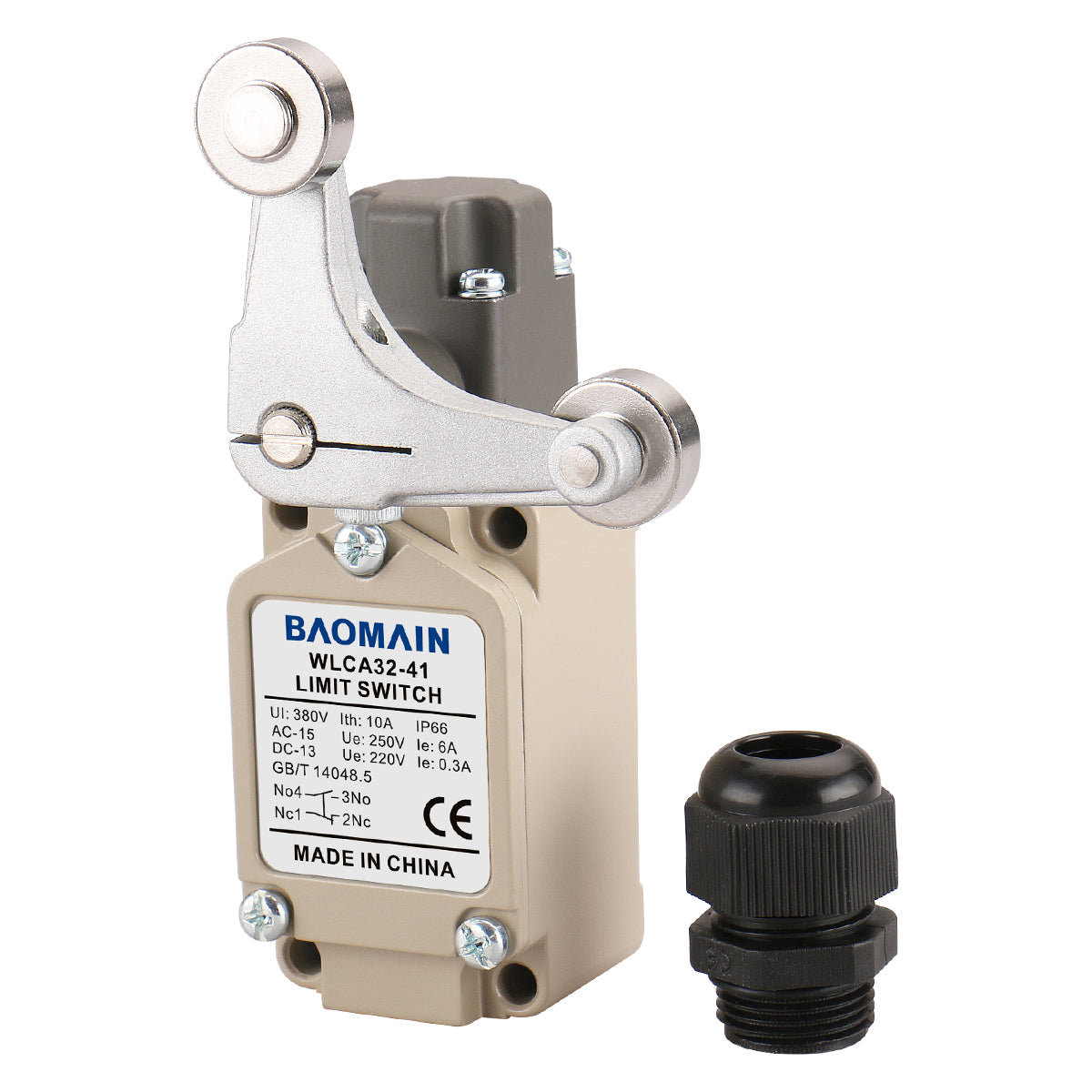

Baomain Limit Switch WLCA32-41 (TZ-5105) Double Rotary Roller Lever Momentary 380V 10A

Baomain Limit Switch WLCA32-41 (TZ-5105) Double Rotary Roller Lever Momentary 380V 10A

$19.29
Unit price per

Shipping calculated at checkout.

Actuator Action: Momentary
Actuator Type: Double Rotary Roller Lever Arm

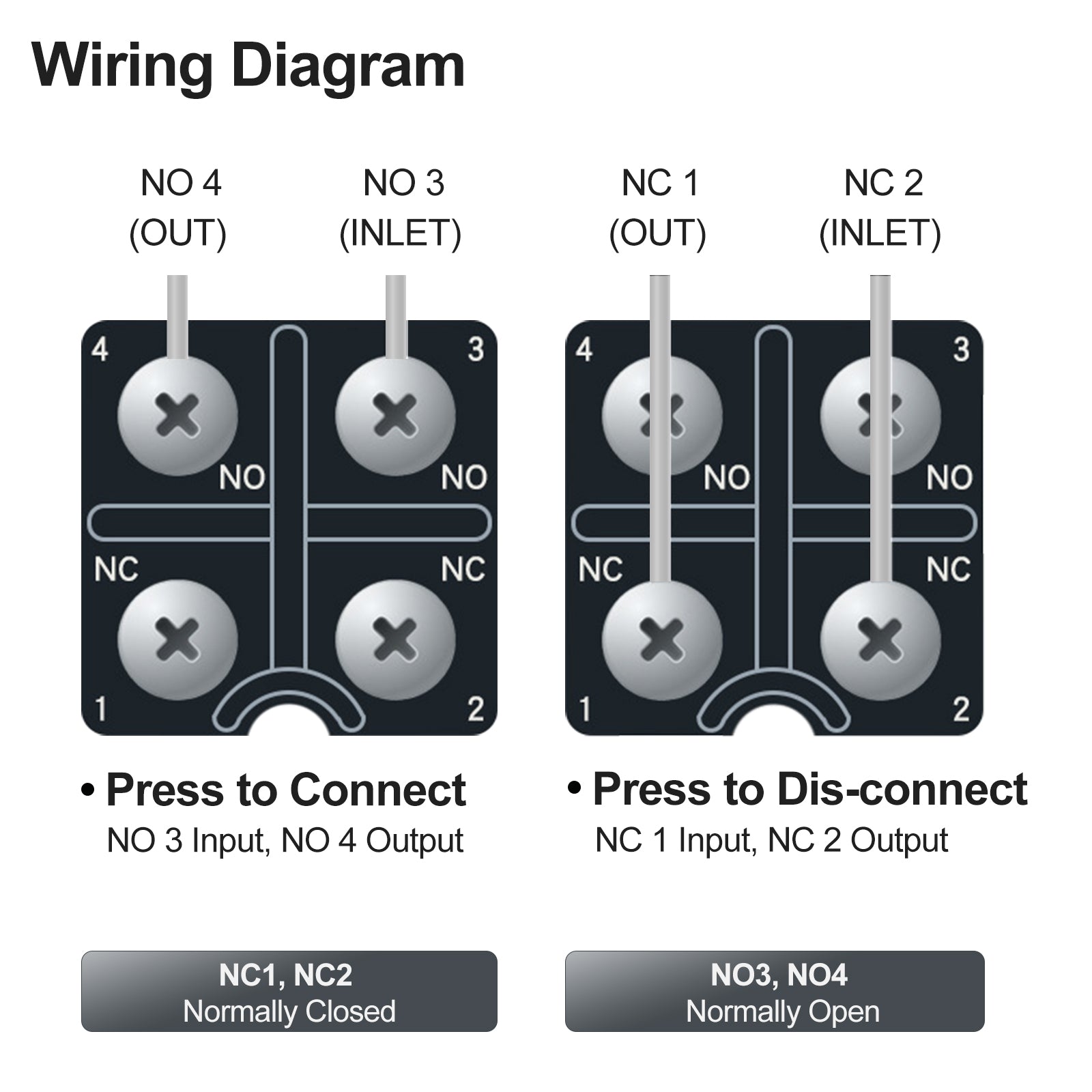

Contact Type: 1NC + 1NO
Ui: 380V, Ith: 10A,AC-15, Ue: 250V, Ie: 1.5A
Roller Size: 16 x 6mm / 0.63" x 0.24"(D*H)
Fit Cable Diameter: 12.7mm / 1/2"
Mounting Hole Diameter : 5.2mm / 0.2"
Installing Hole Distance(center): 58 x 30mm / 2.3" x 1.2"(L*W);
Net Weight : 320g
