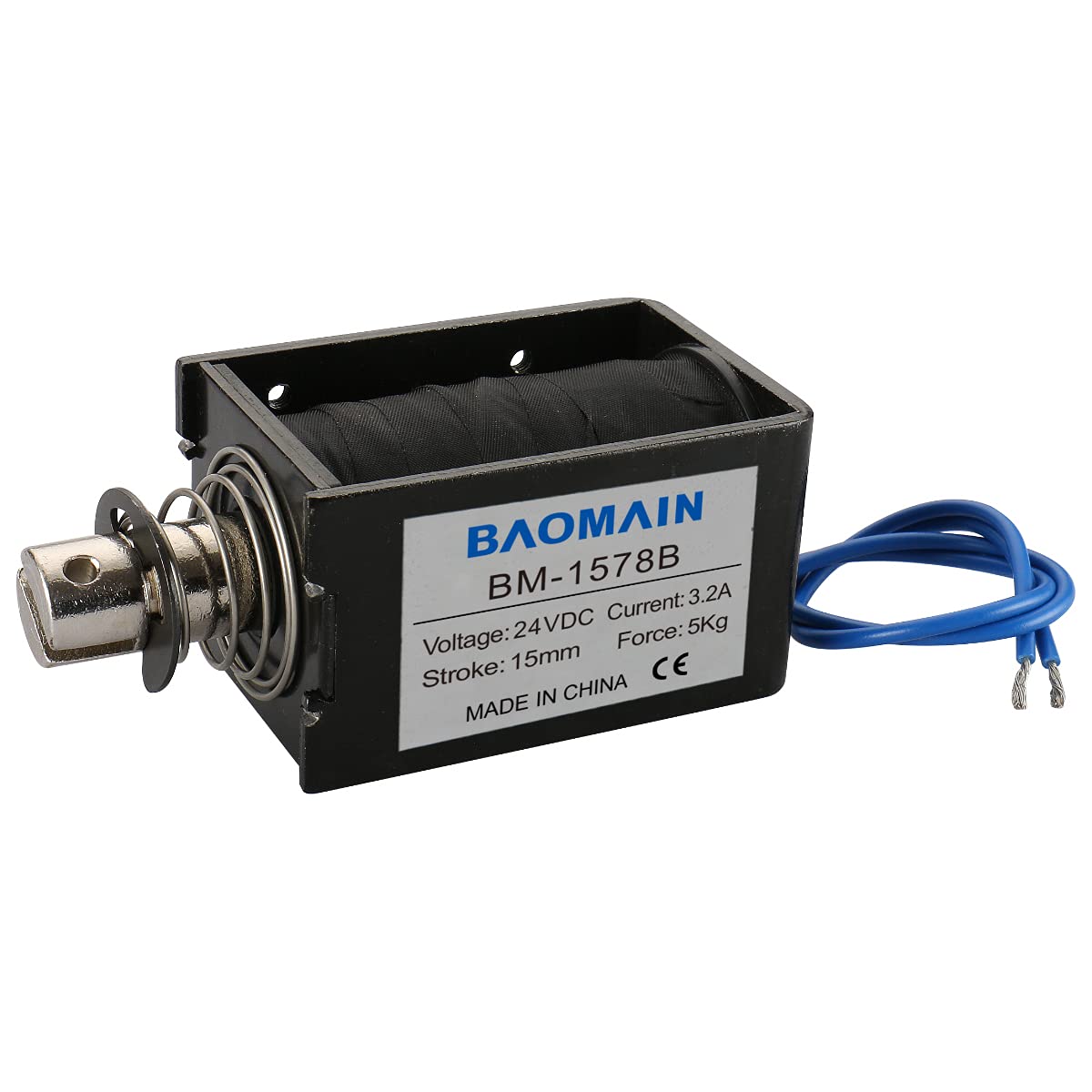

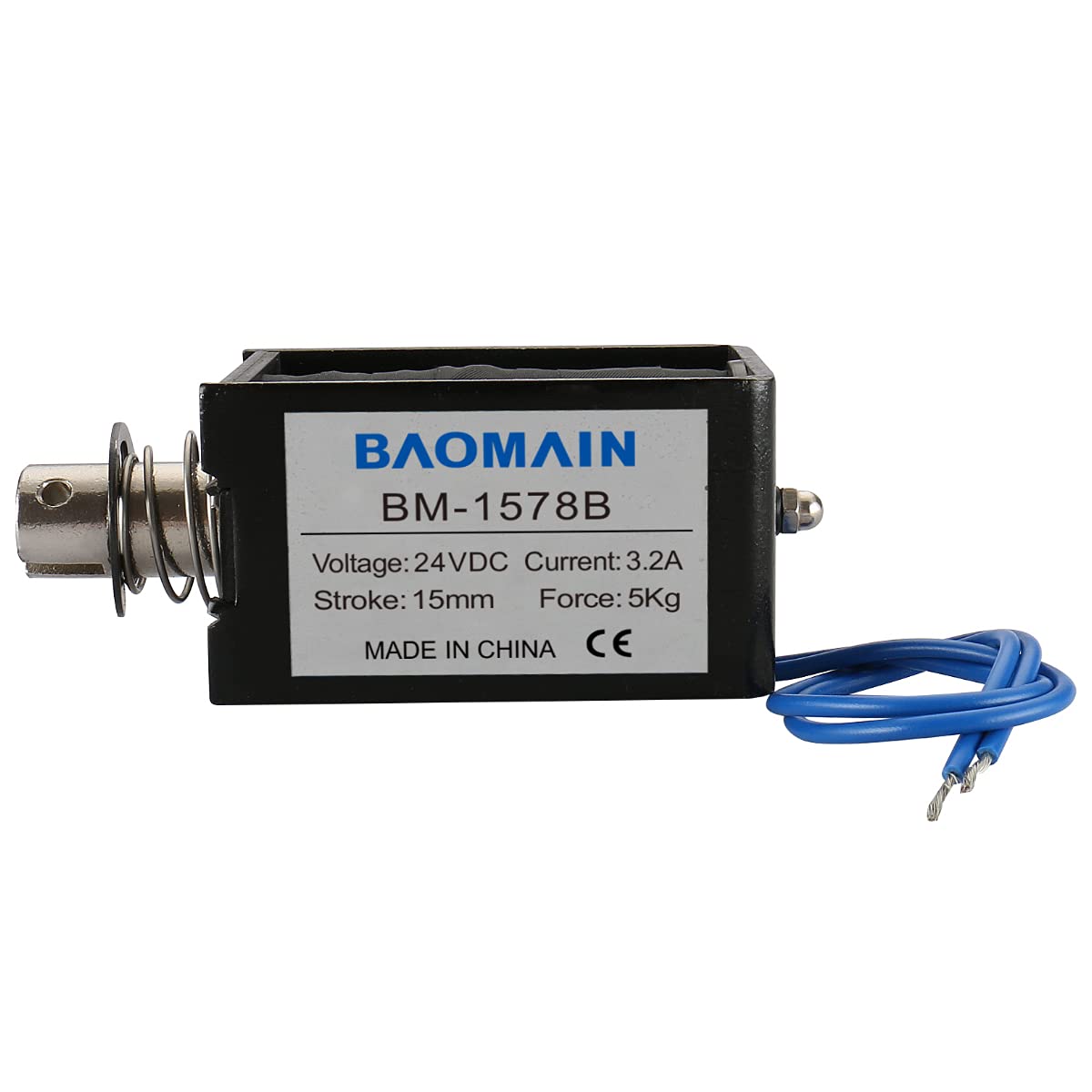

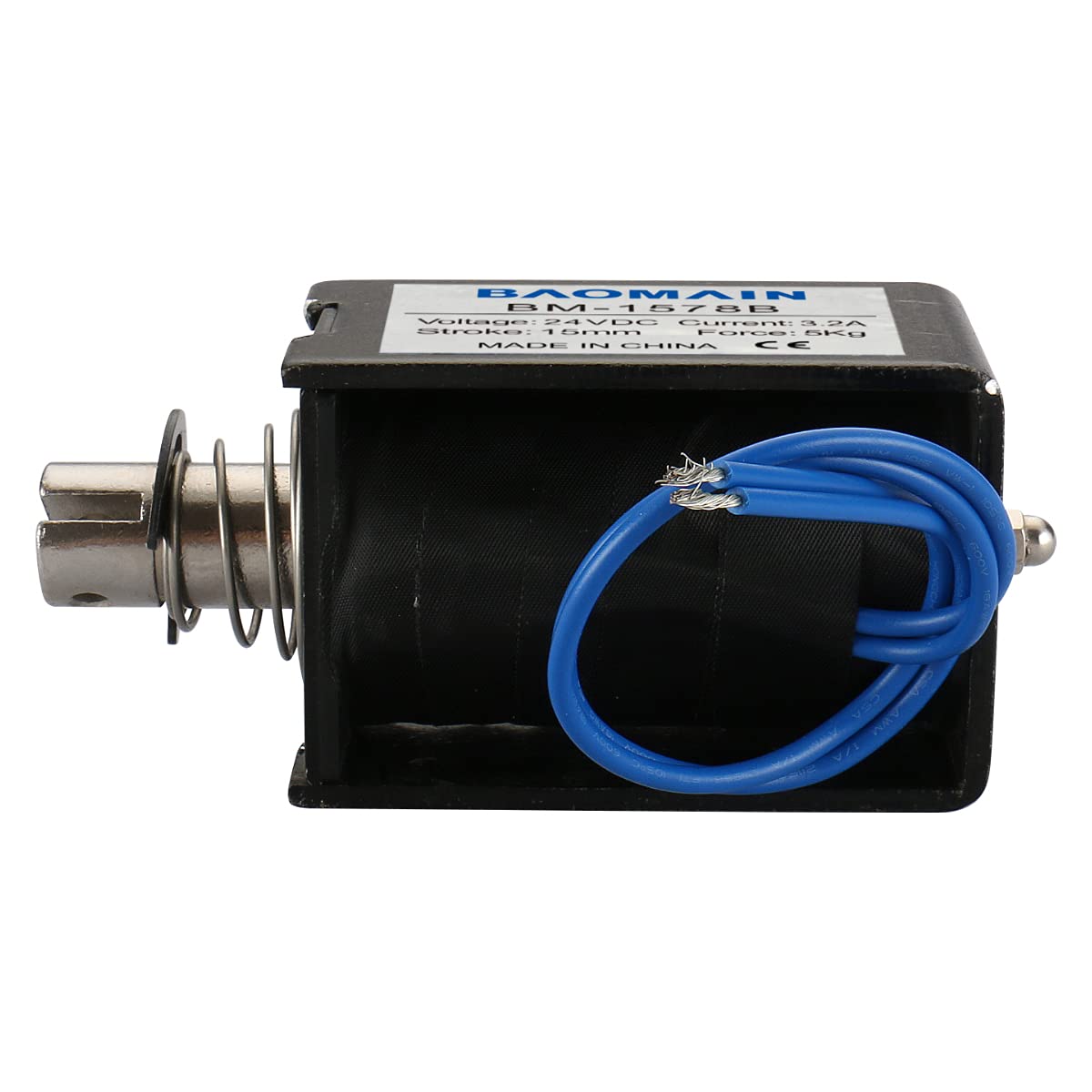

Baomain 15mm Open Frame Linear Actuator Electromagnet Solenoid BM-1578B DC 24V 3.2A 5Kgf 50N Push Pull Force
Baomain 15mm Open Frame Linear Actuator Electromagnet Solenoid BM-1578B DC 24V 3.2A 5Kgf 50N Push Pull Force
Baomain 15mm Open Frame Linear Actuator Electromagnet Solenoid BM-1578B DC 24V 3.2A 5Kgf 50N Push Pull Force
Baomain 15mm Open Frame Linear Actuator Electromagnet Solenoid BM-1578B DC 24V 3.2A 5Kgf 50N Push Pull Force

Baomain 15mm Open Frame Linear Actuator Electromagnet Solenoid BM-1578B DC 24V 3.2A 5Kgf 50N Push Pull Force

Shipping calculated at checkout.

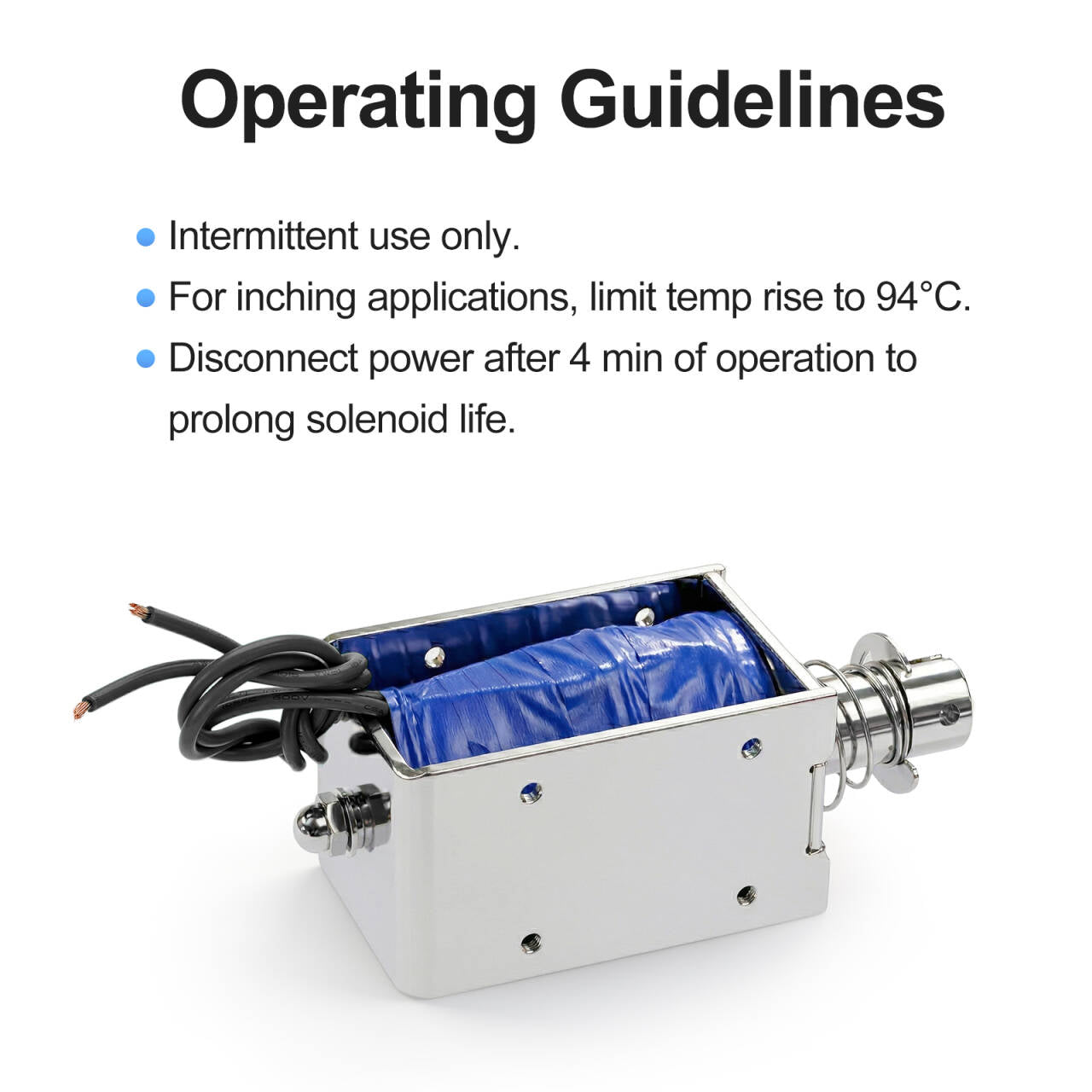

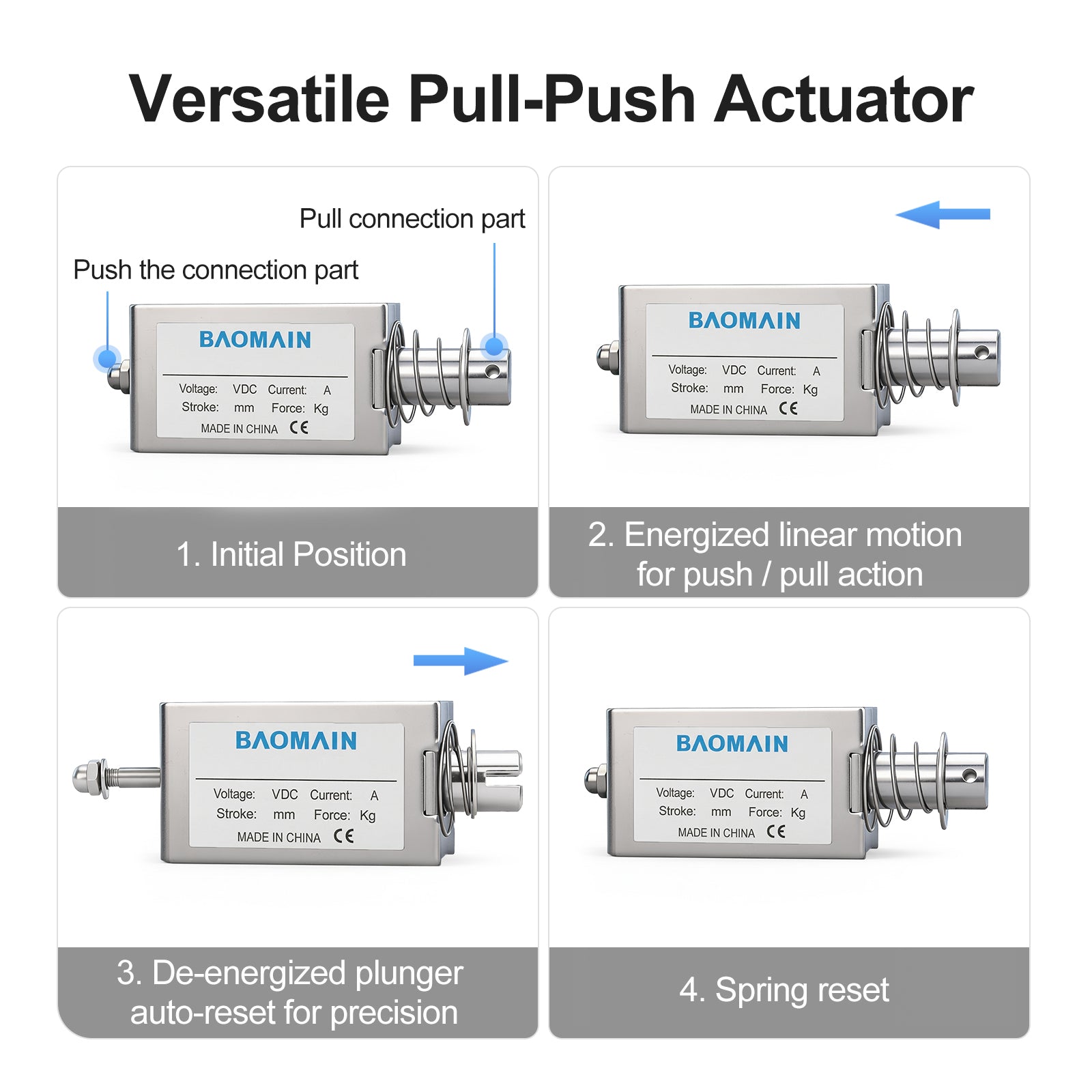

Pull push type, linear motion, open frame, plunger spring return, DC solenoid electronmagnet. DC Solenoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc. Solenoids of this category work externally through pulling pushing in plunger. When energized, doing work through pulling pushing in plunger joined object.  Warning：Please don't power for a long time, Just turn off after few minutes to protect the life cycle of Electronmagnet.

  • Raring: DC 24V, 3.2Amp
  • Stroke: 15mm
  • Force: 50N/5Kgf/11Lb

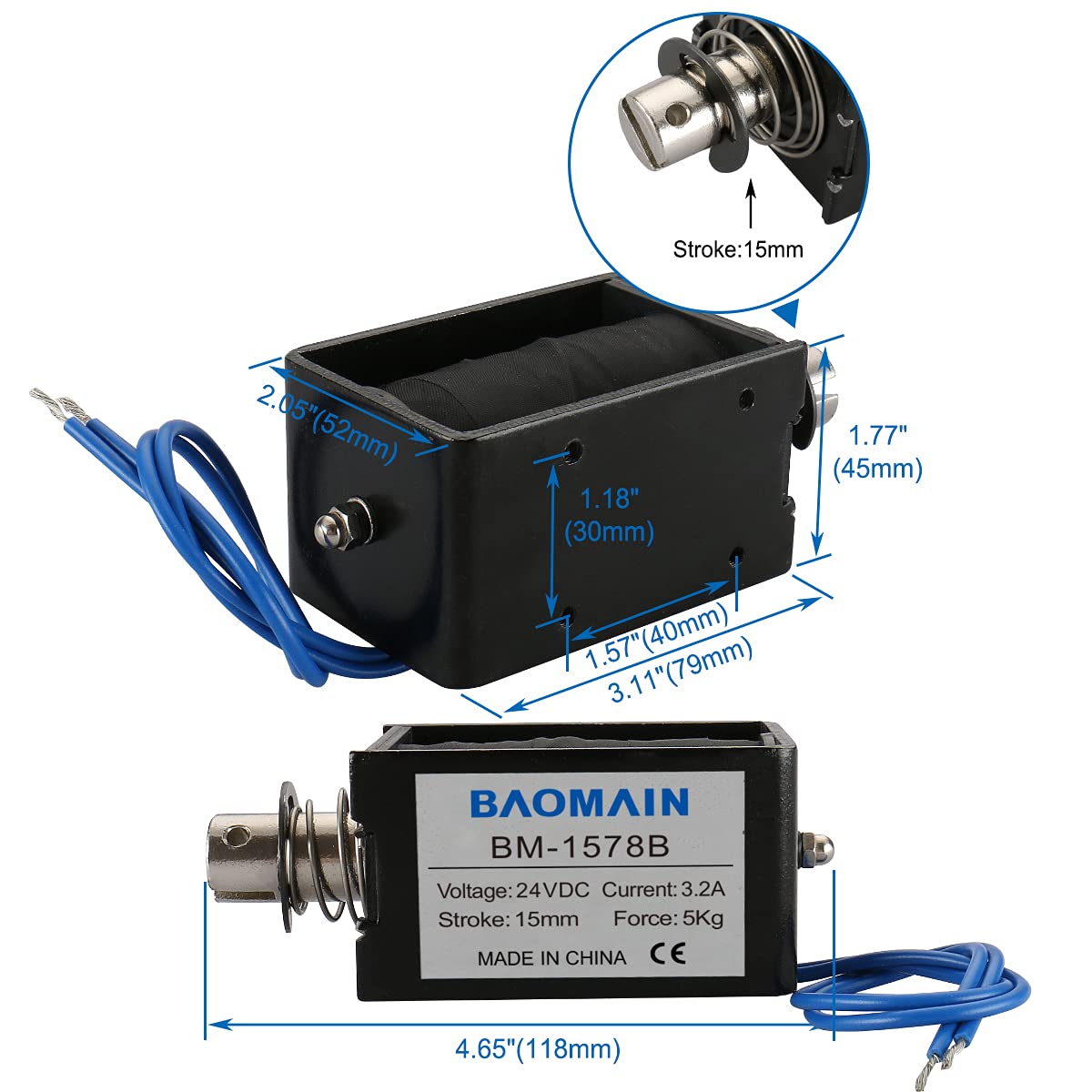

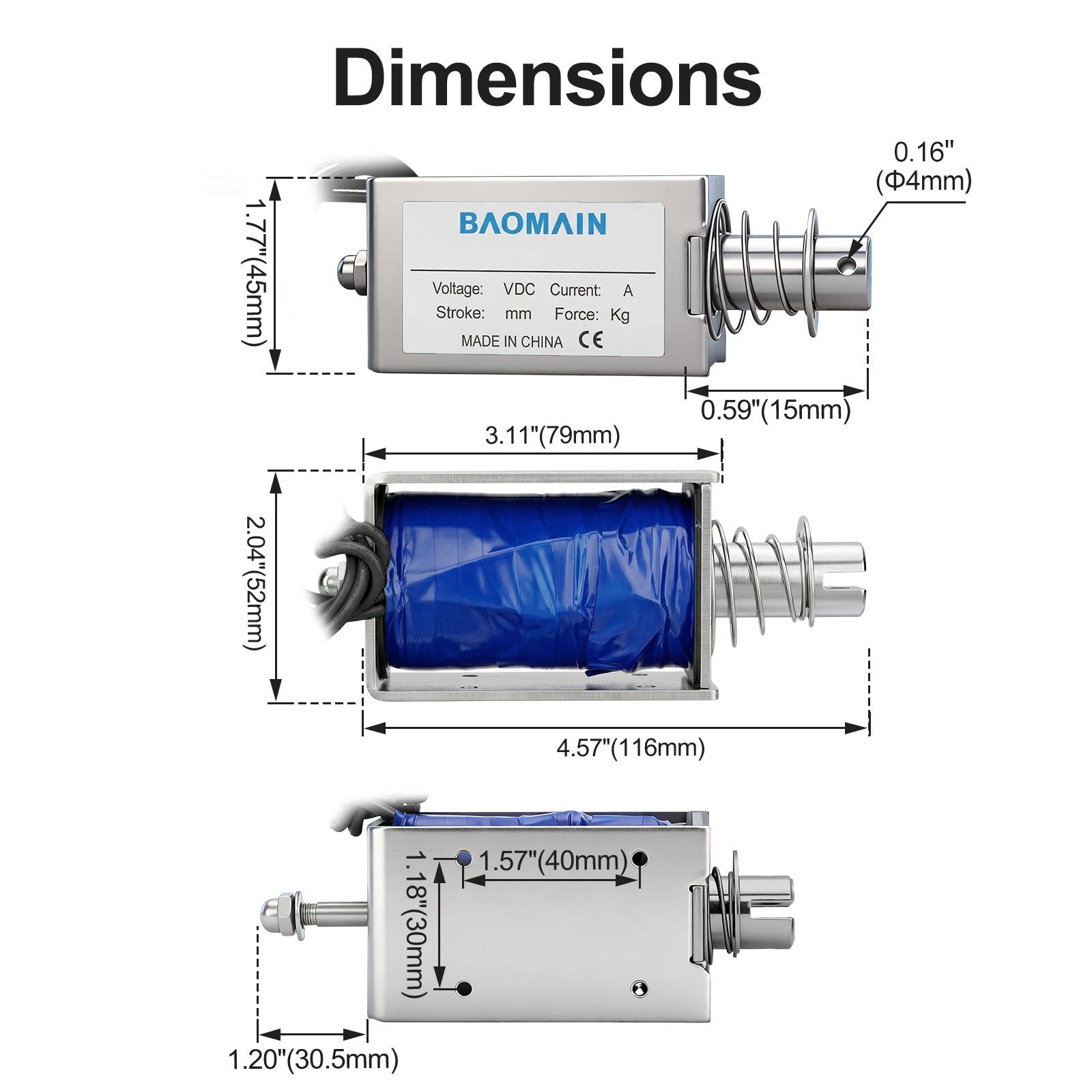

  • Size: 78 x 50 x 45mm/3.07" x 1.97" x 1.77"(L*W*H)
  • Weight: 860g
