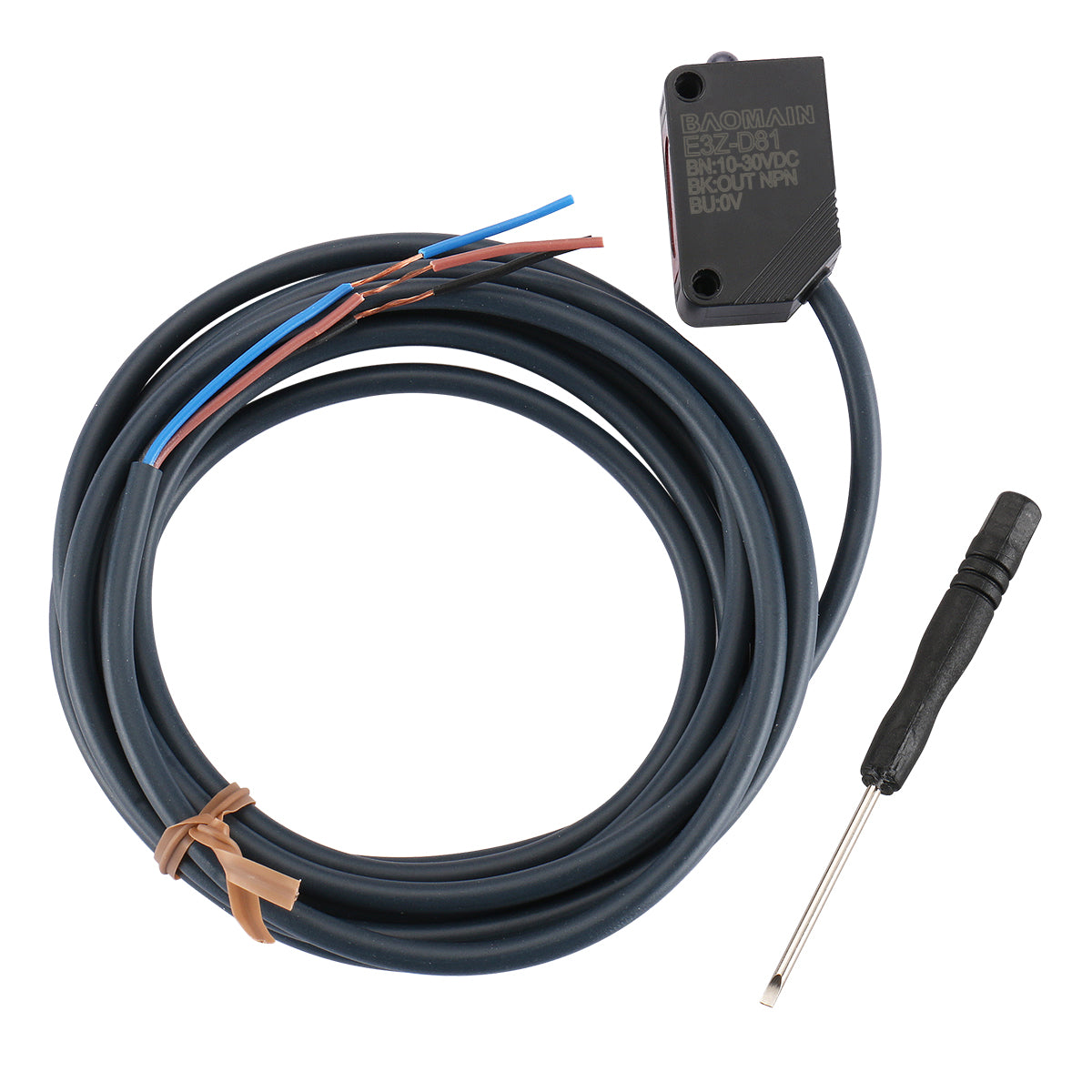

Baomain Diffuse Reflection Photoelectric Sensor Switch E3Z-D81, DC 10-30V, 200mA, PNP, Detection 30-100mm for Machine Tools Metallurgy, Chemicals, Automatic Doors
Baomain Diffuse Reflection Photoelectric Sensor Switch E3Z-D81, DC 10-30V, 200mA, PNP, Detection 30-100mm for Machine Tools Metallurgy, Chemicals, Automatic Doors
Baomain Diffuse Reflection Photoelectric Sensor Switch E3Z-D81, DC 10-30V, 200mA, PNP, Detection 30-100mm for Machine Tools Metallurgy, Chemicals, Automatic Doors
Baomain Diffuse Reflection Photoelectric Sensor Switch E3Z-D81, DC 10-30V, 200mA, PNP, Detection 30-100mm for Machine Tools Metallurgy, Chemicals, Automatic Doors
Baomain Diffuse Reflection Photoelectric Sensor Switch E3Z-D81, DC 10-30V, 200mA, PNP, Detection 30-100mm for Machine Tools Metallurgy, Chemicals, Automatic Doors

Baomain Diffuse Reflection Photoelectric Sensor Switch E3Z-D81, DC 10-30V, 200mA, PNP, Detection 30-100mm for Machine Tools Metallurgy, Chemicals, Automatic Doors

Shipping calculated at checkout.
  • Voltage: 10-30VDC
  • Standard sensing object: Any object above 1mm (except colorless and transparent)
  • Pointing angle: Projection angle: 3-5°
  • Light source (wavelength): Infrared light (950)
  • Circuit protection: Reverse connection protection, short circuit protection, surge protection
  • Action state: Switchable L(NO), D(NC)
  • Current consumption/hour: <1.5W
  • Service life: 2,000,000
  • Response time: <2ms

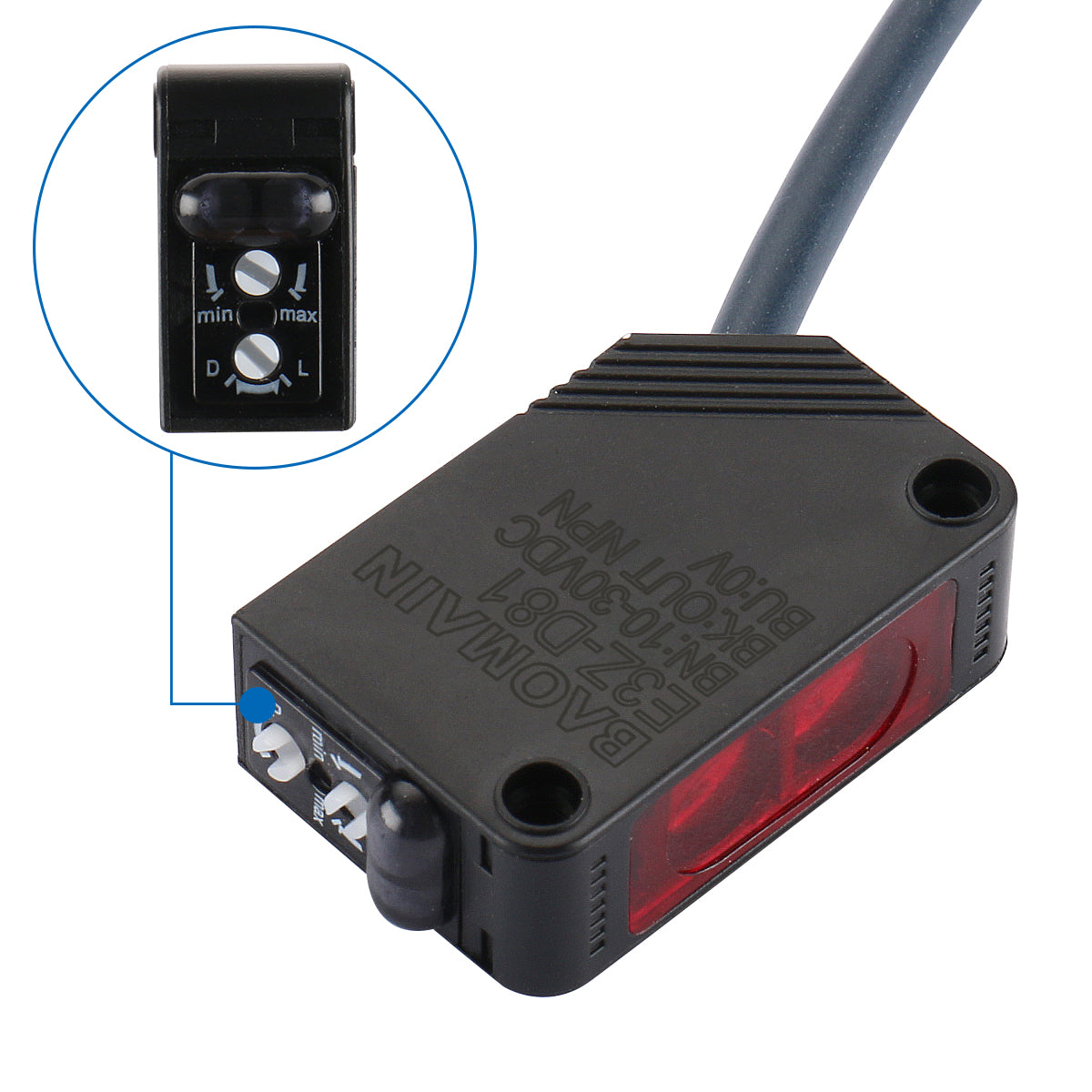

  • Sensitivity adjustment: Tail knob adjustment: clockwise becomes farther, counterclockwise becomes closer
  • Use environment illuminance: Affected by the illuminance of the light surface incandescent lamp, the distance is weak
  • Temp: -25～80°C
  • environment humidity: 35～80%
  • Insulation resistance: >20MΩ
  • shock: 10～50HZ 1.5mm double amplitude

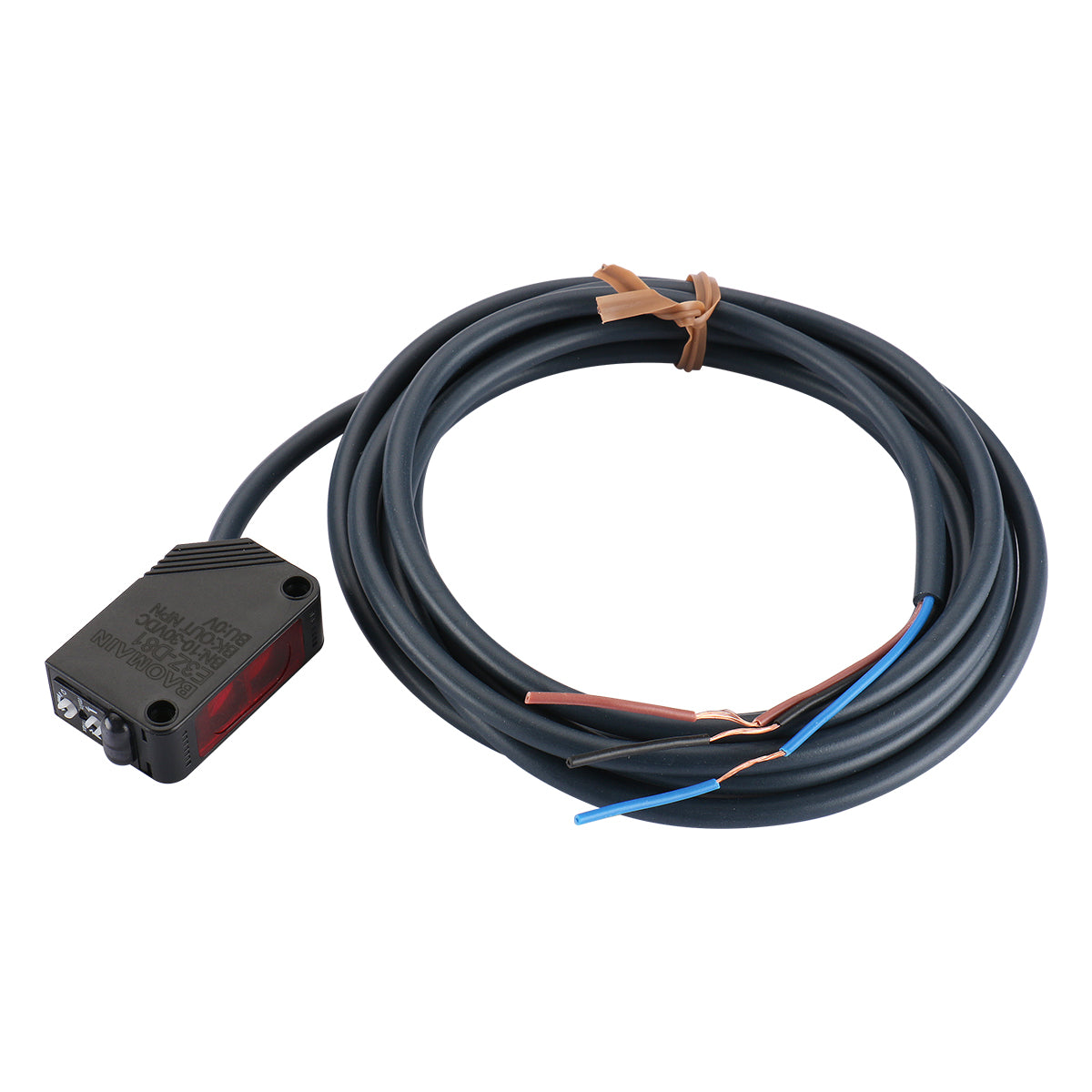

  • Protection: IP65</li><li>Cable Length: 2m
  • Material: shell: ABS; lens: Methacrylic resin; Knob: POM; Cable: PVC
