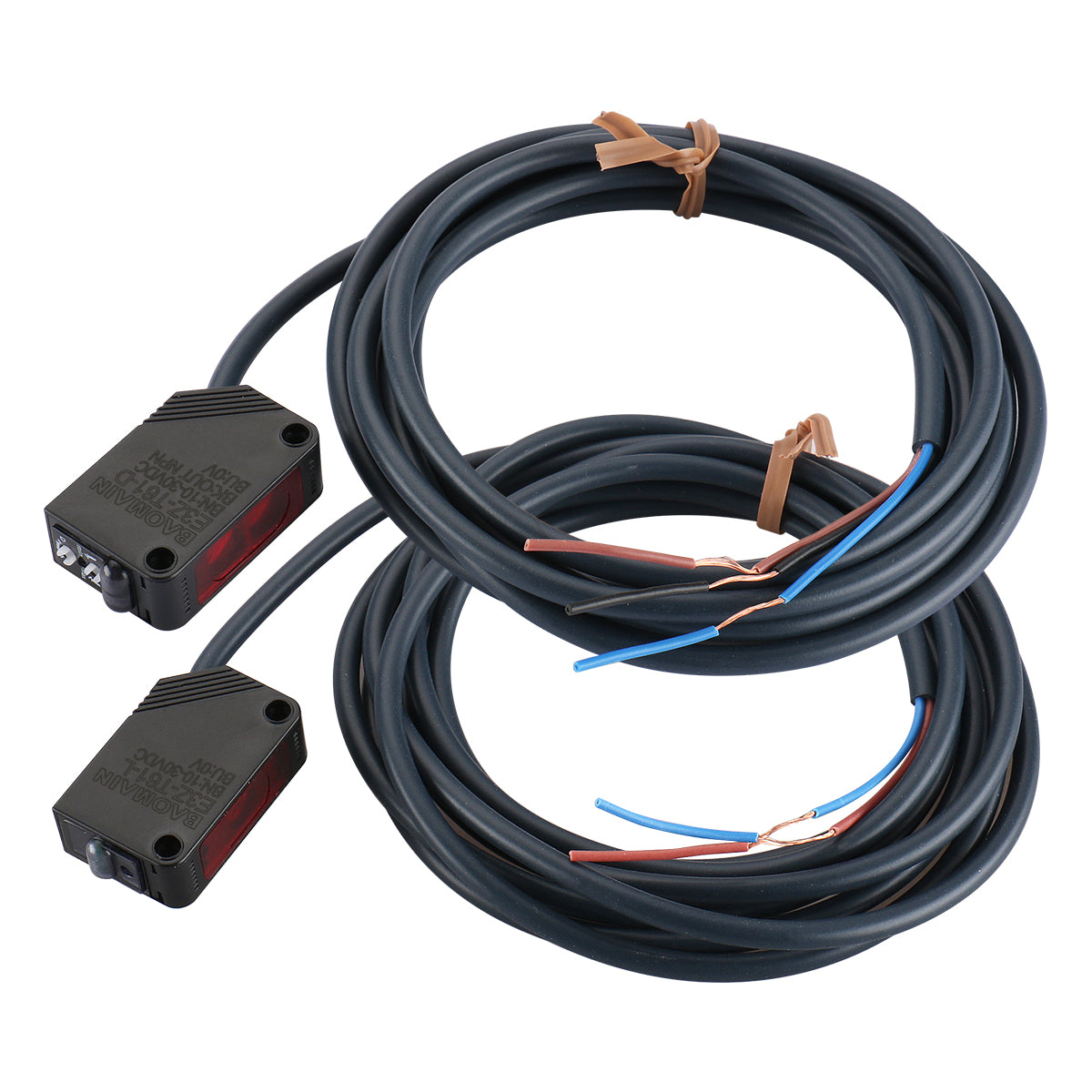

Baomain Photoelectric Switch Sensor, E3Z-T61 DC 10-30V IR Photoelectric Infrared Sensor Switch NPN Output Sensing Distance 20-350cm for Automatic Equipment
- Voltage: 10-30VDC
- Standard sensing object: Any object above 1mm (except colorless and transparent)
- Pointing angle: Projection angle: 3-5°
- Light source (wavelength): Infrared light (950)
- Circuit protection: Reverse connection protection, short circuit protection, surge protection
- Action state: Switchable L(NO), D(NC)
- Current consumption/hour: <1.5W
- Service life: 2,000,000
- Response time: <2ms

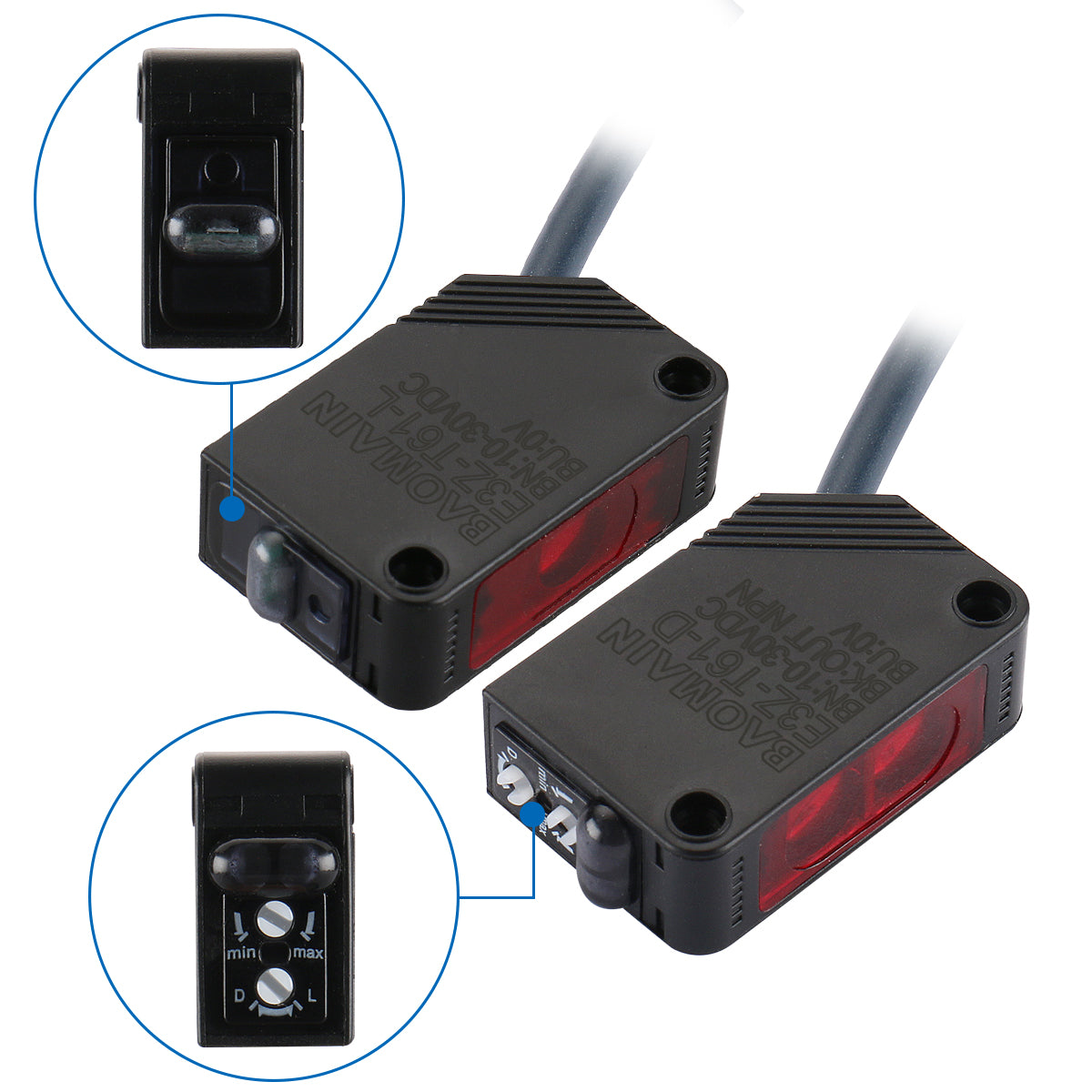

- Sensitivity adjustment: Tail knob adjustment: clockwise becomes farther, counterclockwise becomes closer
- Use environment illuminance: Affected by the illuminance of the light surface incandescent lamp, the distance is weak
- Temp: -25～80°C
- environment humidity: 35～80%
- Insulation resistance: >20MΩ
- shock: 10～50HZ 1.5mm double amplitude
- Protection: IP65
- Cable Length: 2m
- Material: shell: ABS; lens: Methacrylic resin; Knob: POM; Cable: PVC
