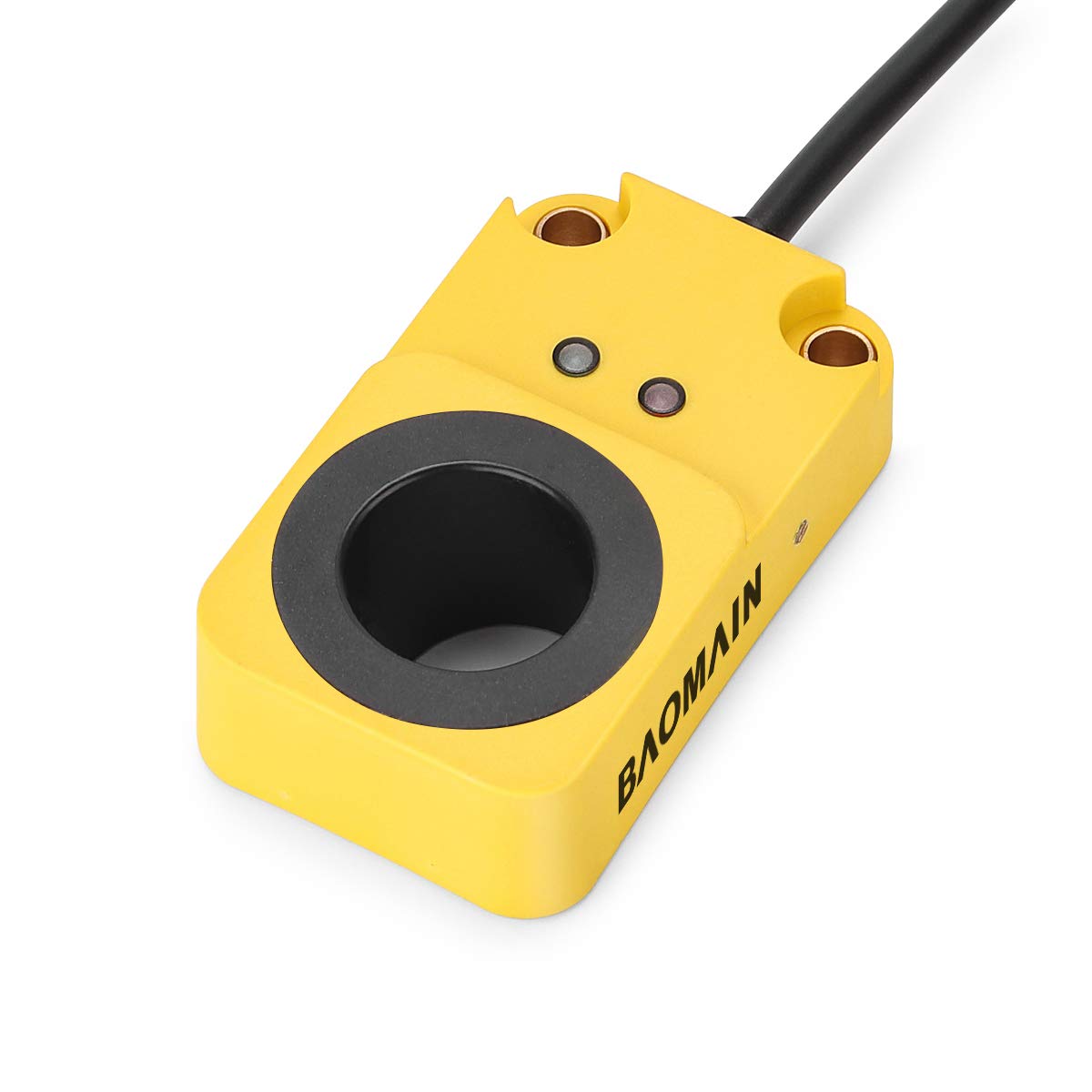

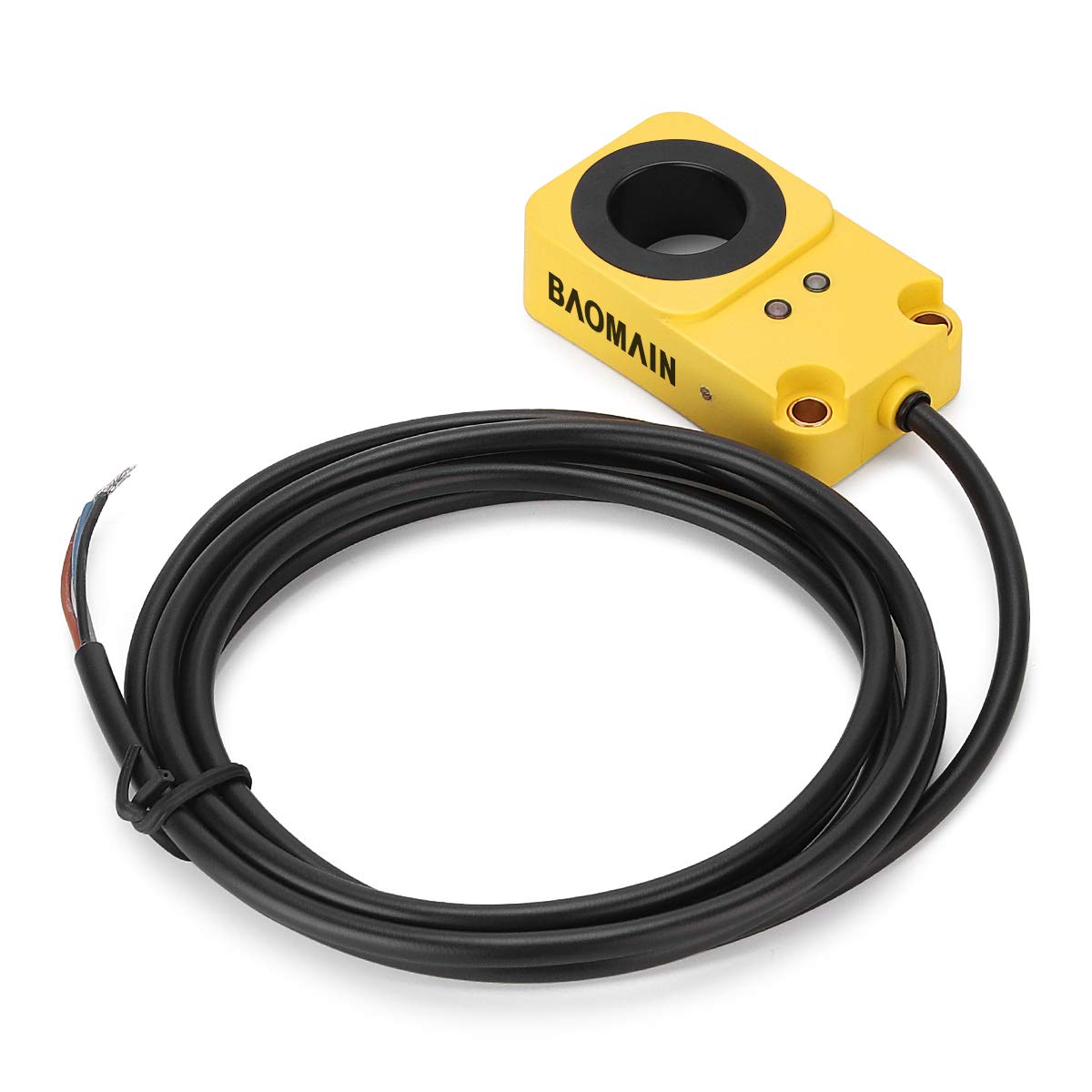

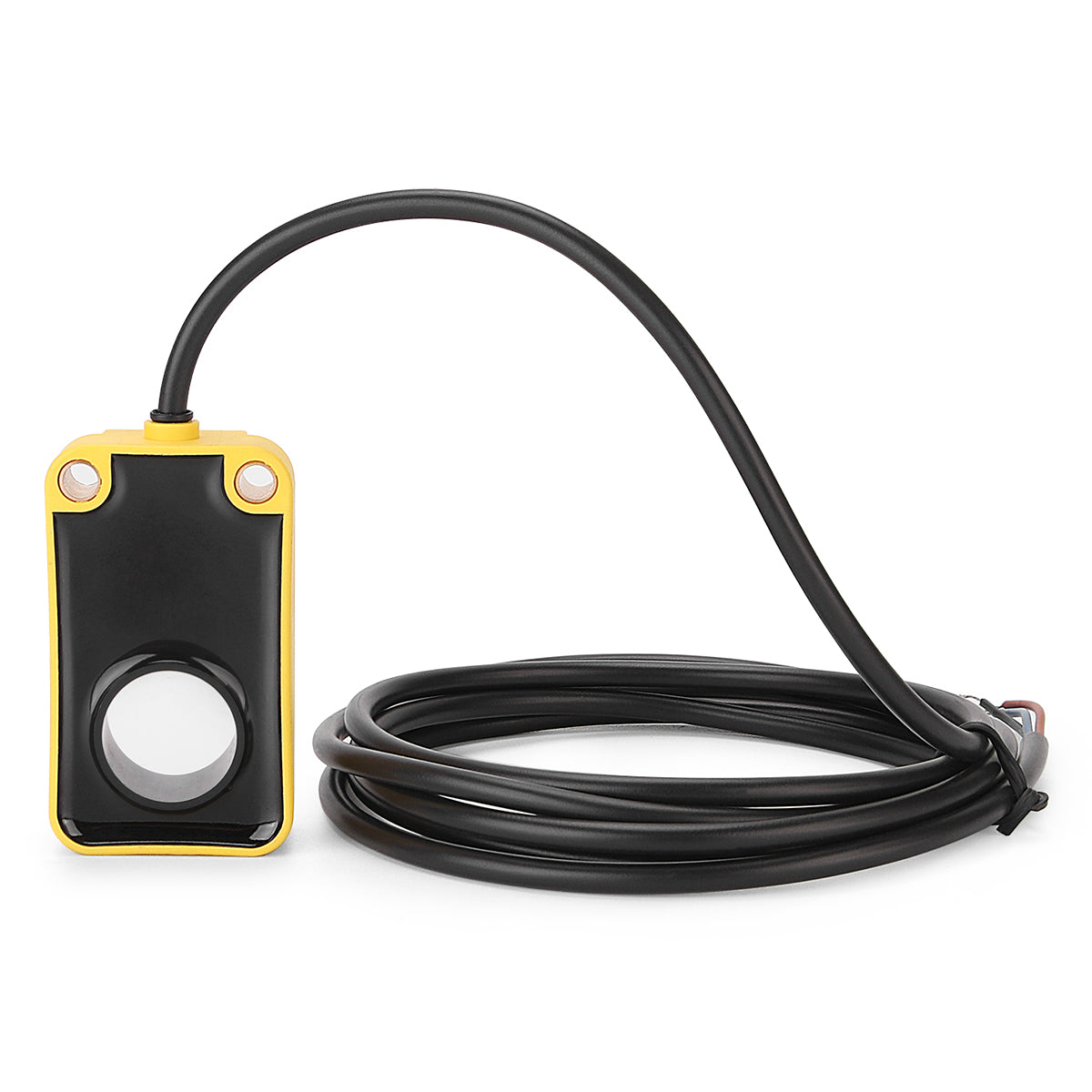

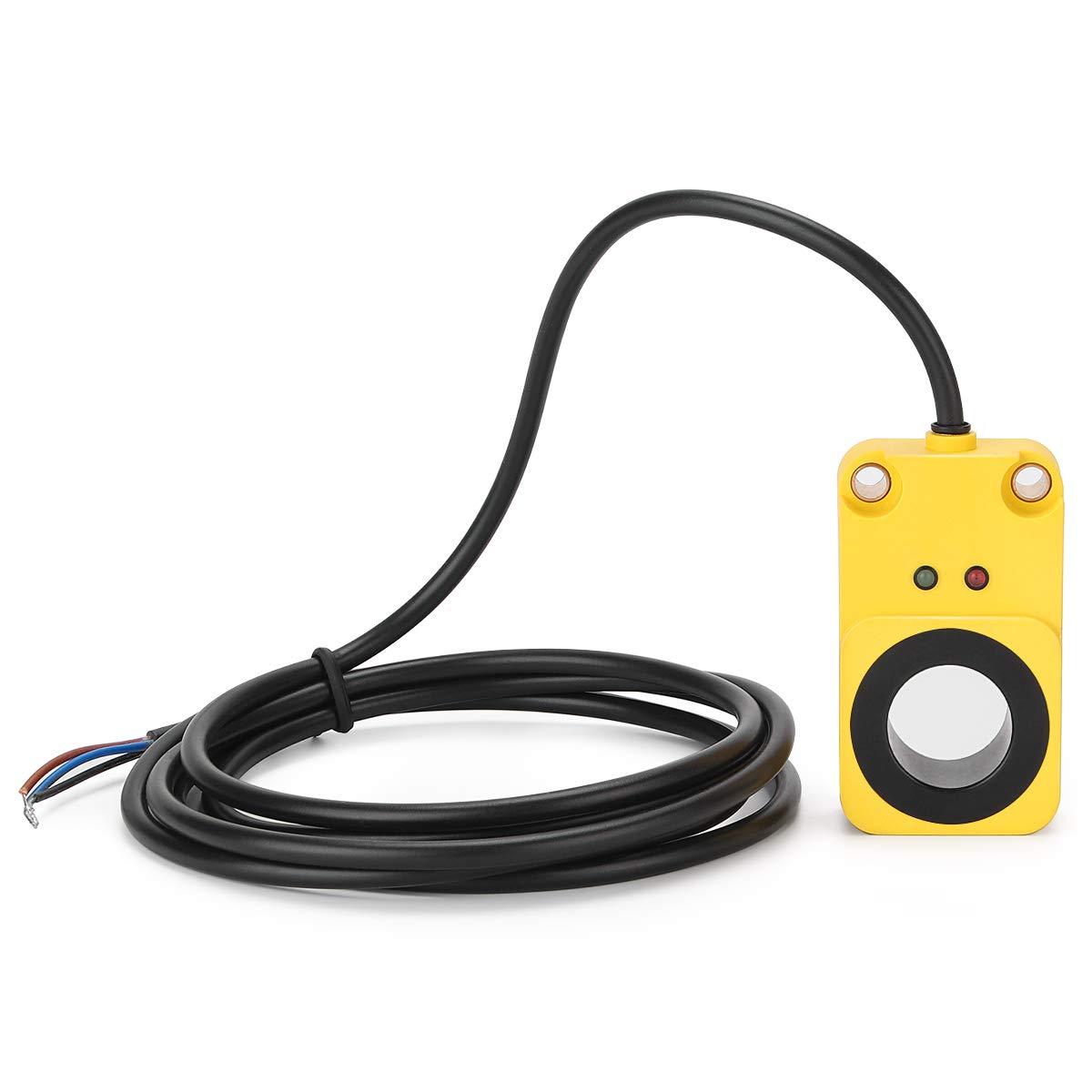

Baomain Ring Proximity Switch Ring Sensor BM-M68-10DN2 NPN, NC(Normally Closed) 10mm Diameter Sensor Screw Machine Feeding Detection and Counting
Baomain Ring Proximity Switch Ring Sensor BM-M68-10DN2 NPN, NC(Normally Closed) 10mm Diameter Sensor Screw Machine Feeding Detection and Counting
Baomain Ring Proximity Switch Ring Sensor BM-M68-10DN2 NPN, NC(Normally Closed) 10mm Diameter Sensor Screw Machine Feeding Detection and Counting
Baomain Ring Proximity Switch Ring Sensor BM-M68-10DN2 NPN, NC(Normally Closed) 10mm Diameter Sensor Screw Machine Feeding Detection and Counting
Baomain Ring Proximity Switch Ring Sensor BM-M68-10DN2 NPN, NC(Normally Closed) 10mm Diameter Sensor Screw Machine Feeding Detection and Counting

Baomain Ring Proximity Switch Ring Sensor BM-M68-10DN2 NPN, NC(Normally Closed) 10mm Diameter Sensor Screw Machine Feeding Detection and Counting

Shipping calculated at checkout.
  • Model：BM-M68-10DN2
  • Detection Distance: 10mm
  • Type: NPN, NC(Normally Closed
  • Supply Voltage : DC 10-30V
  • Current Consumption: 15mA; Load Current: 100mA
  • Detectable Object: iron, steel
  • Min Detectable Object：1.0 mm
  • Green LED indicator Power, Red LED indicator Sensor
  • Waterproof: IP67
  • Wiring method: φ4.0×2M/3-wires
  • Residual voltage: <1.0V @100mA
  • Leakage; current: ≤0.01mA
  • Operating Temperature: -30°C-+65°C
