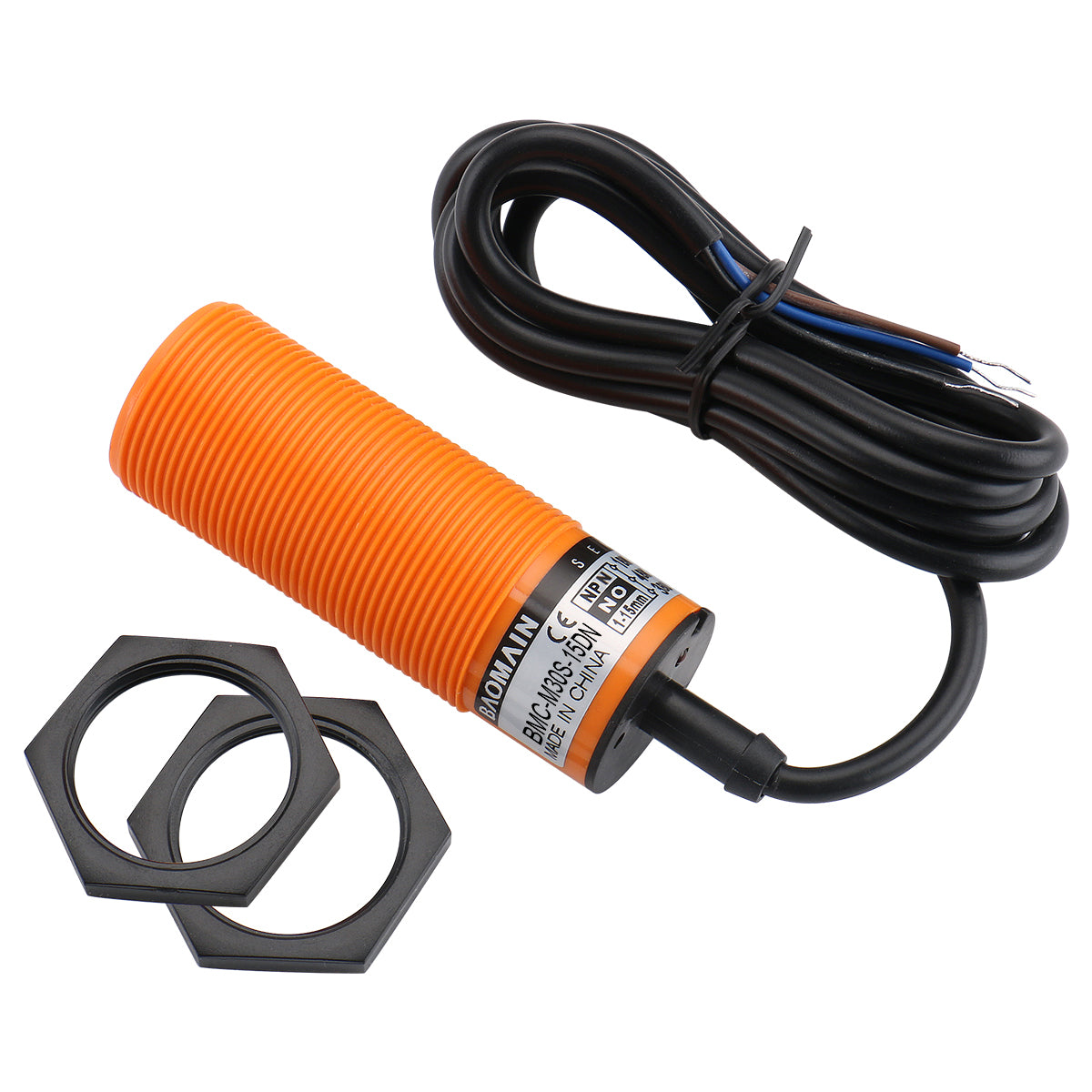

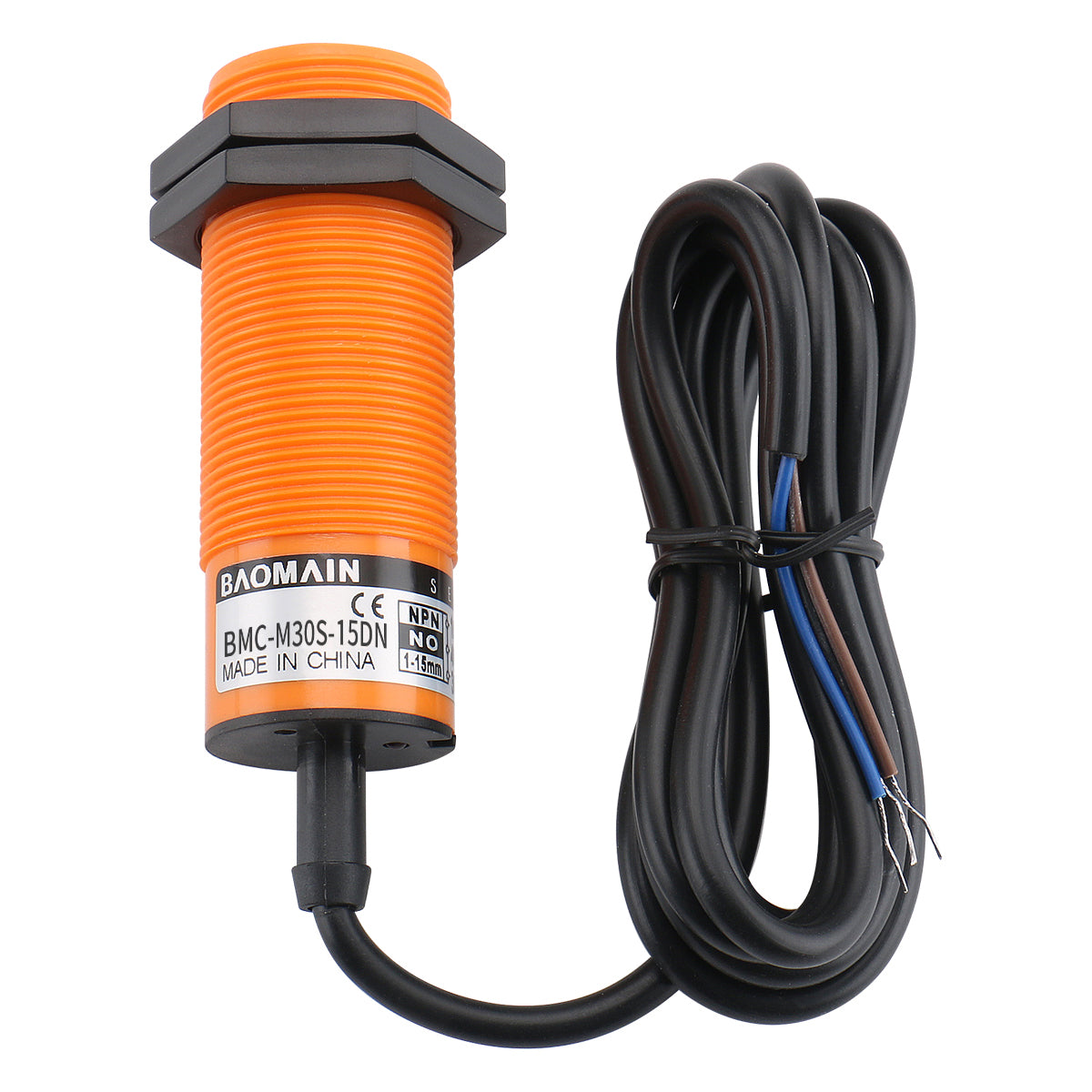

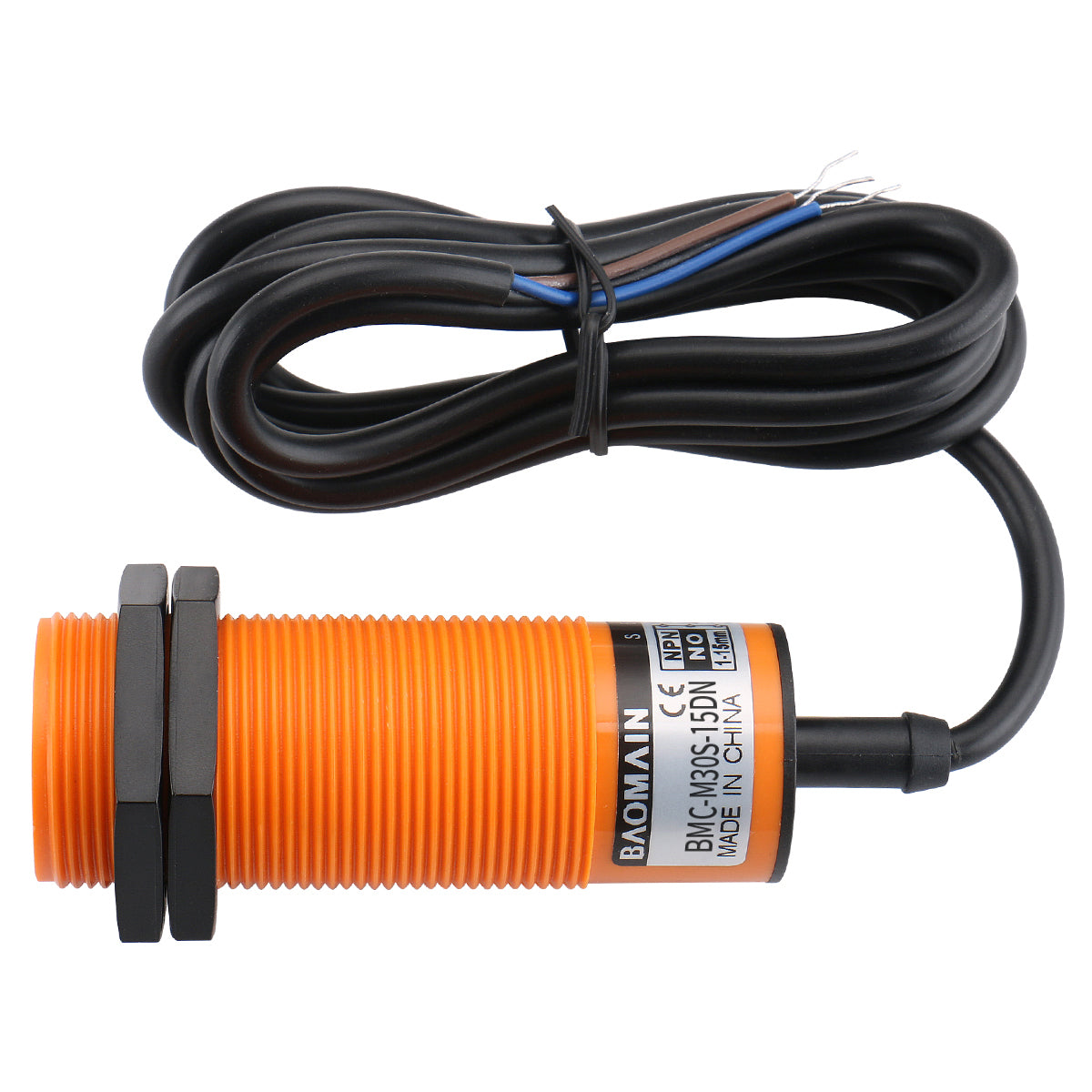

Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire NPN Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DN
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire NPN Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DN
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire NPN Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DN
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire NPN Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DN
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire NPN Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DN
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire NPN Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DN

Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire NPN Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DN

Shipping calculated at checkout.
  • Sensor type: Capacitive proximity sensor

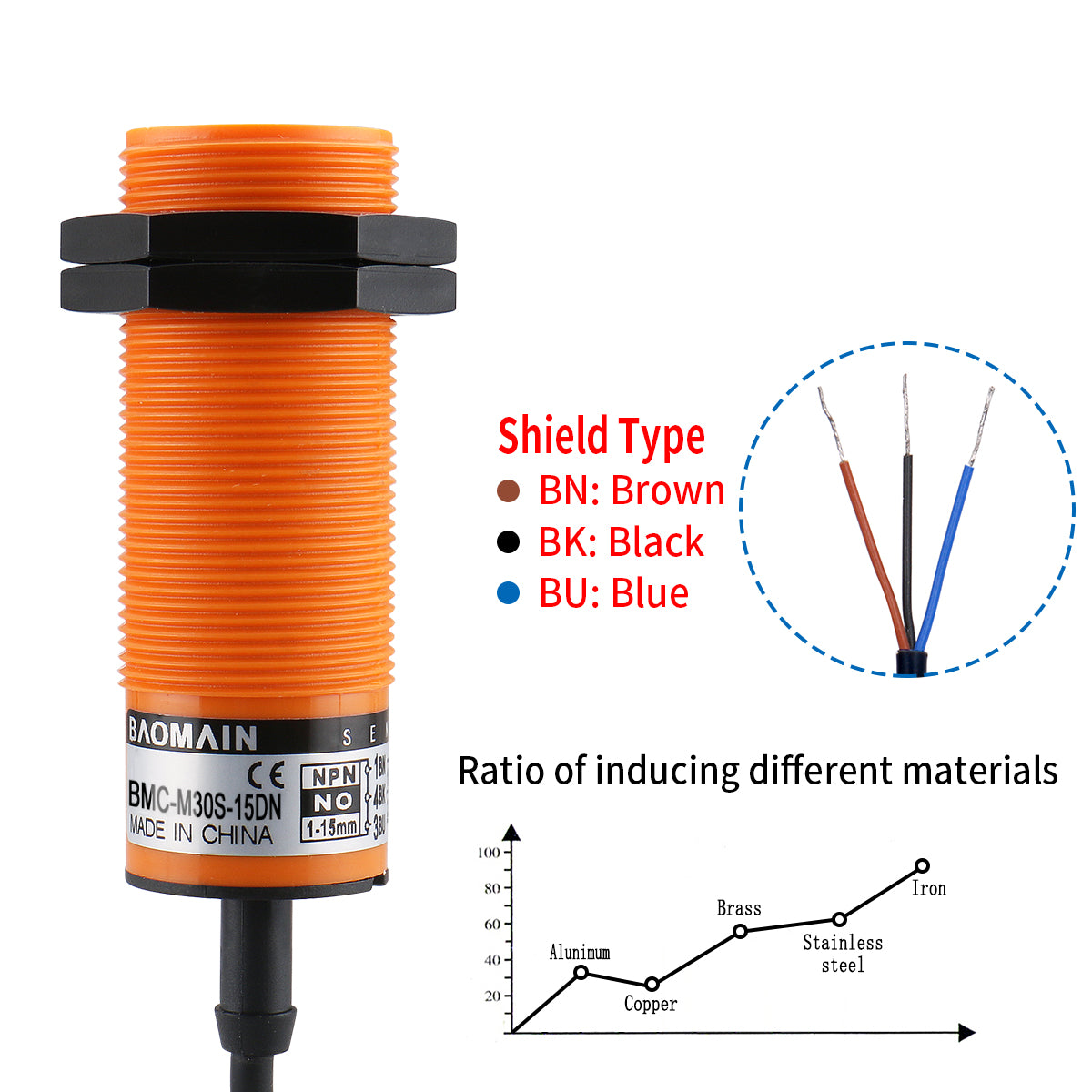

  • Product specific application: Detection of insulated or conductive materials

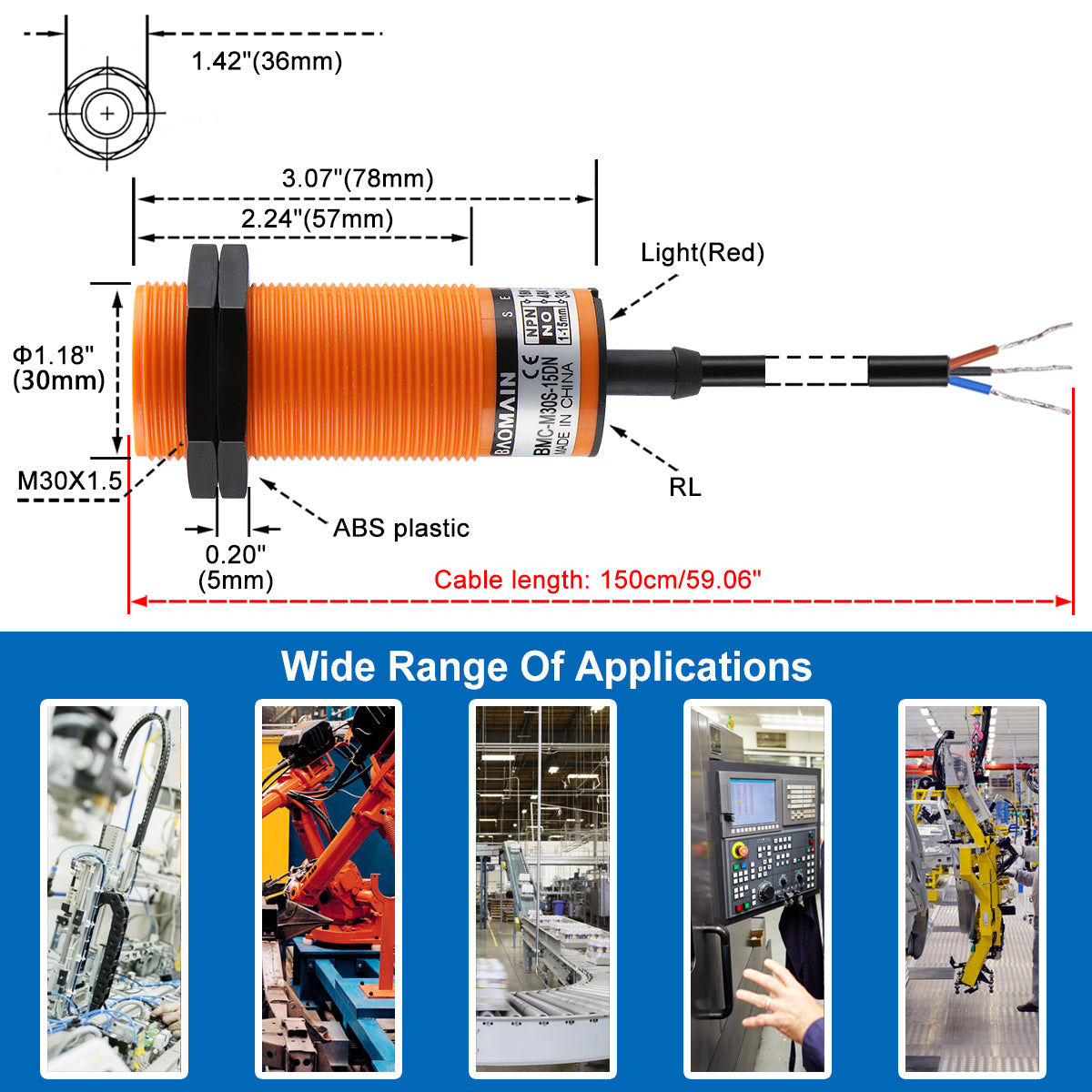

  • Sensor design: Cylindrical M30
  • Detector flush mounting acceptance: Non flush mountable

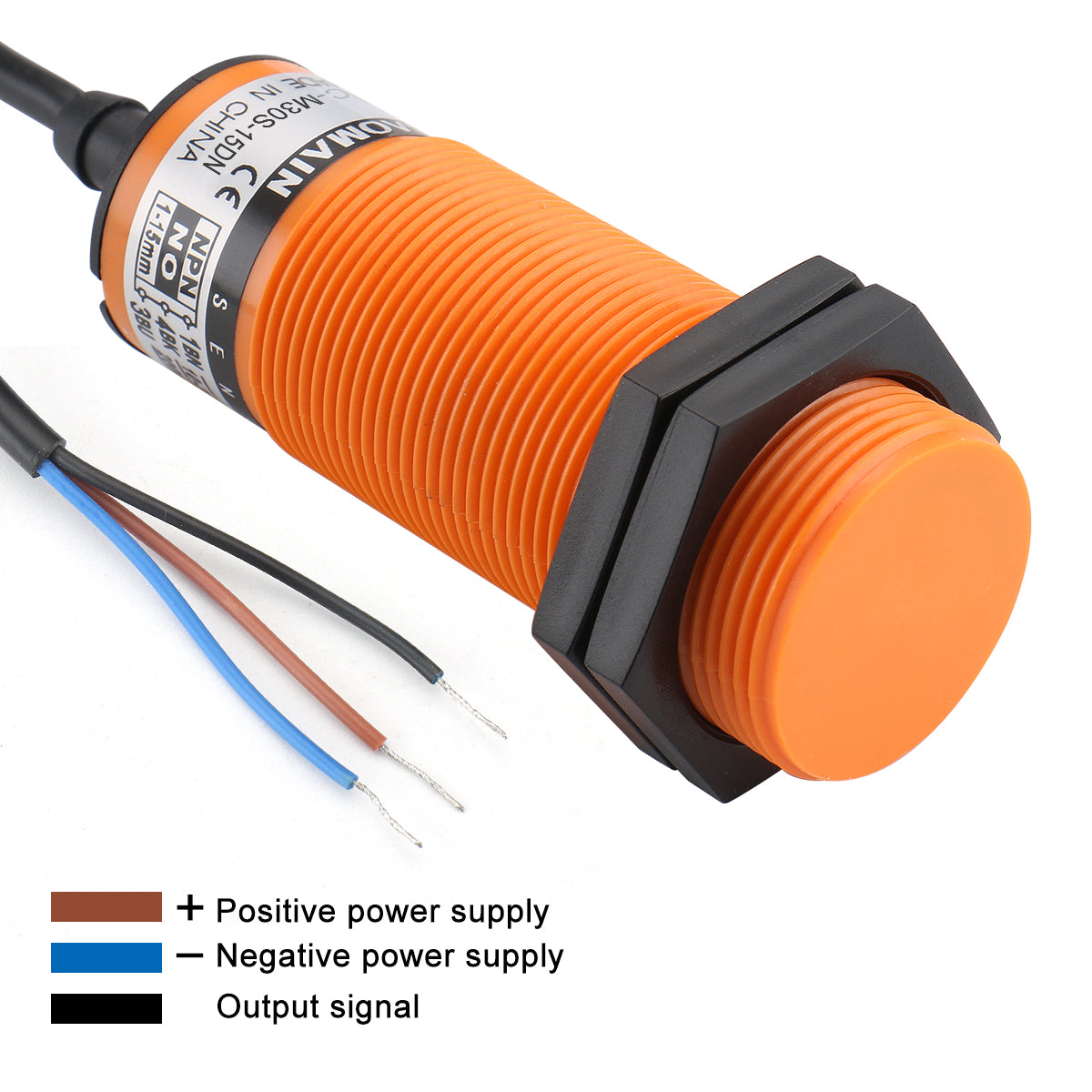

  • Wiring technique: 3-wire
      • [Sd] sensing range: 8...15 mm
      • [Sn] nominal sensing distance: 15mm
      • Discrete output function: 1 NO
      • Output circuit type: DC
      • Discrete output type: NPN
      • Electrical connection: Cable
      • Cable length: 2 m
      • [Us] rated supply voltage: 12...24 V DC with reverse polarity protection
      • Delay response: <10 ms
      • IP degree of protection: IP67 double insulation conforming to IEC 60529
      • [Sa] assured operating distance: 0...11 mm
      • Adjustment zone: 0...17 mm
      • Status LED: 1 LED for output state indication
      • Supply voltage limits: 10...30 V DC
      • Residual current: <100 mA open state
      • Switching frequency: <150Hz
      • Voltage drop: <2.5 V (closed)
