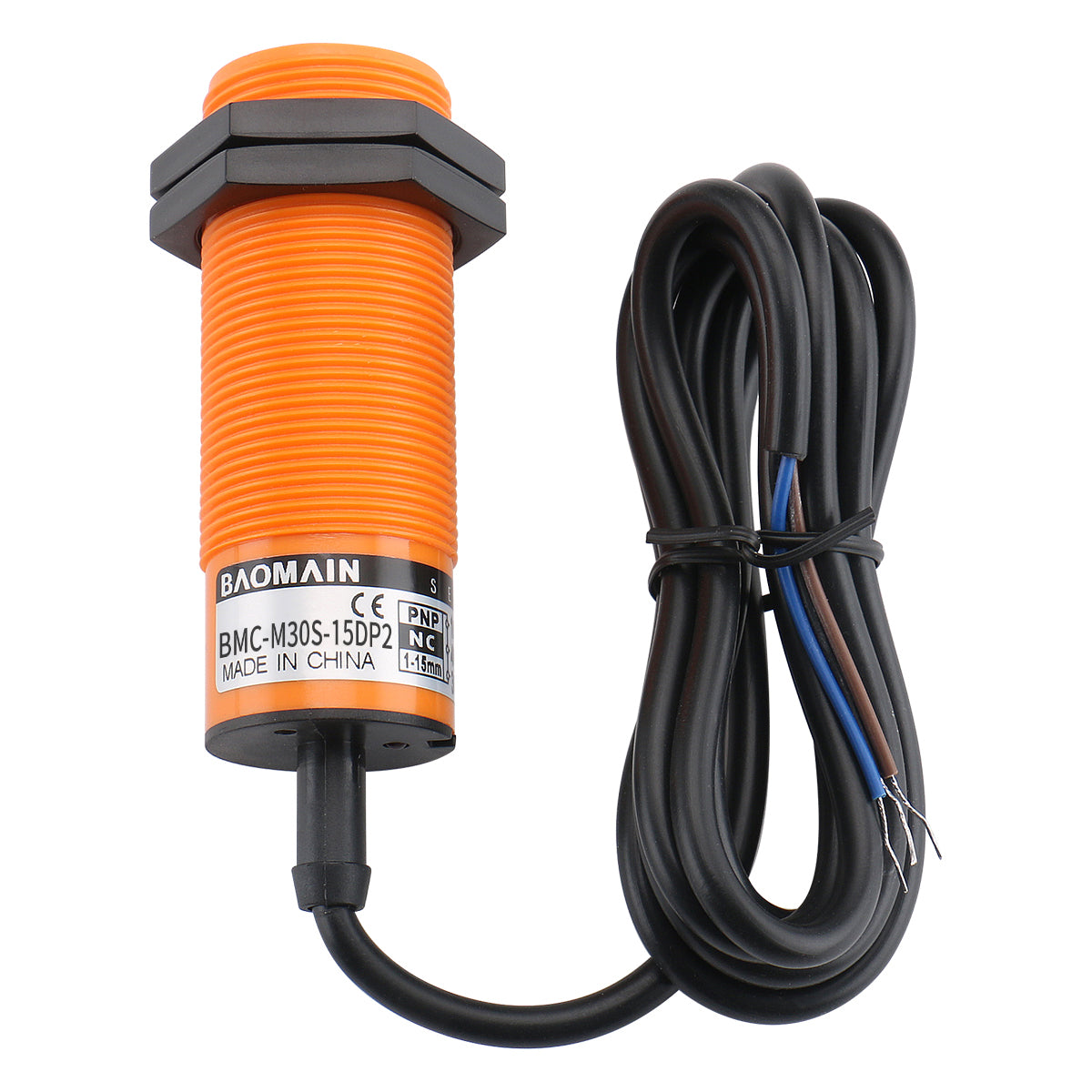

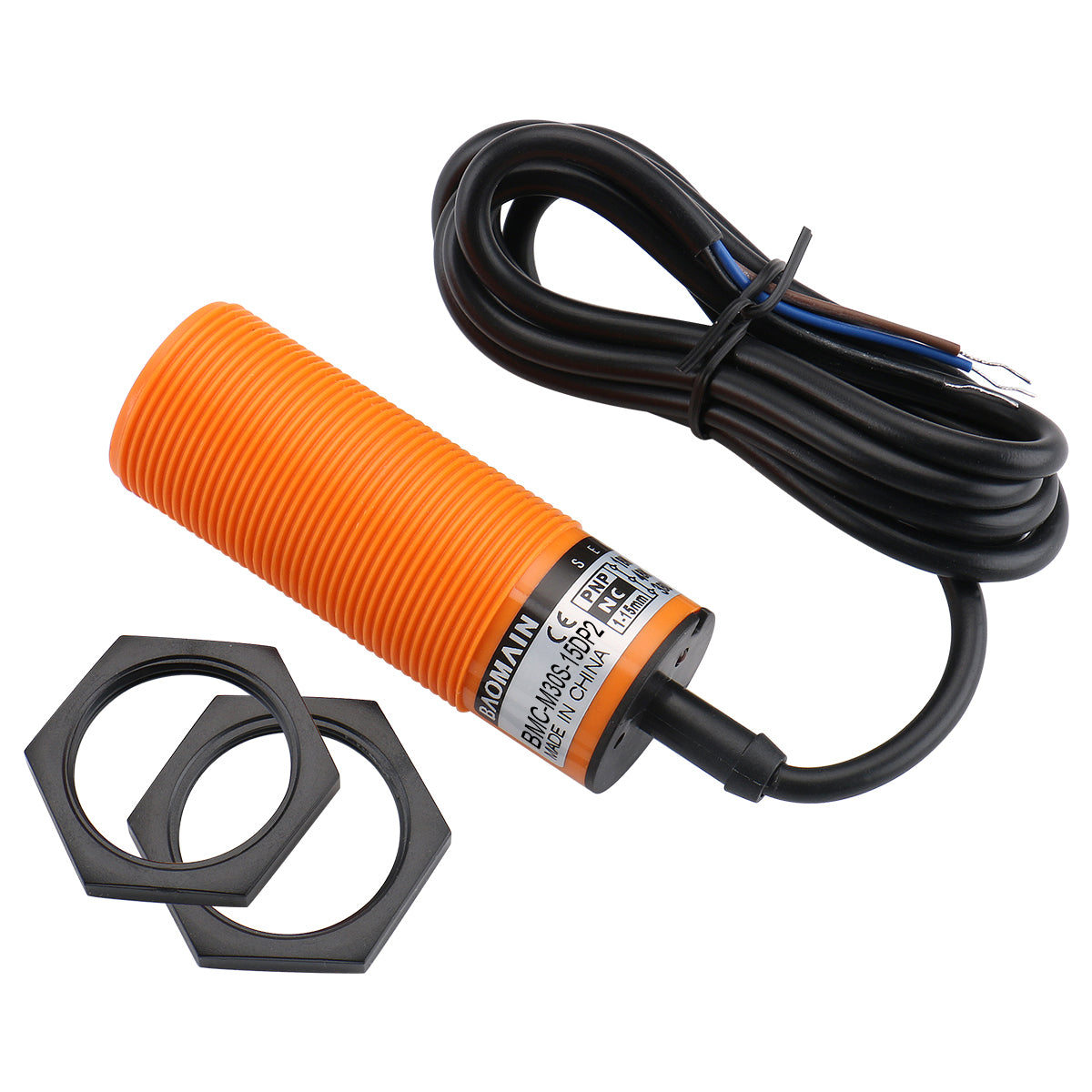

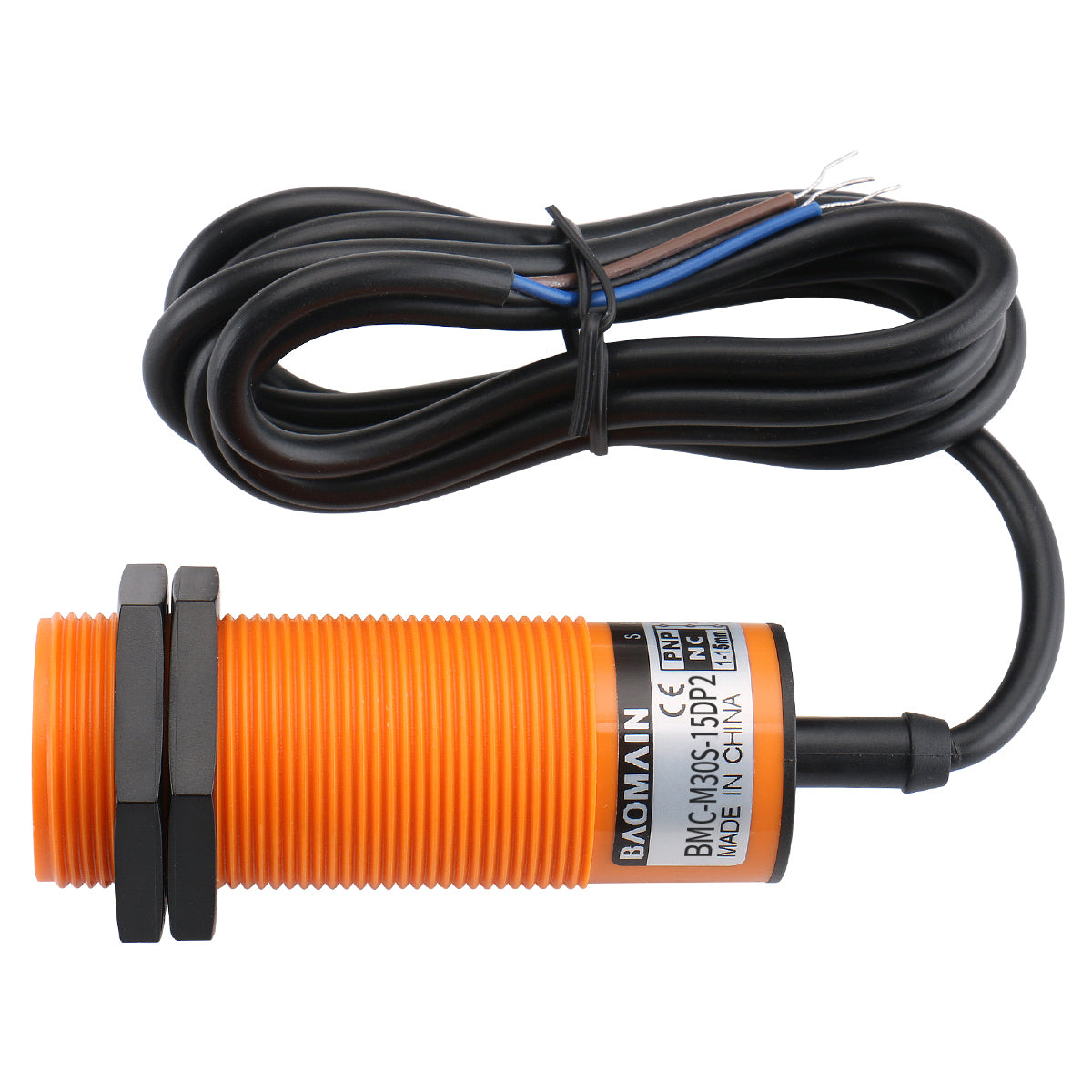

Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DP2
- Sensor type: Capacitive proximity sensor
- Product specific application: Detection of insulated or conductive materials

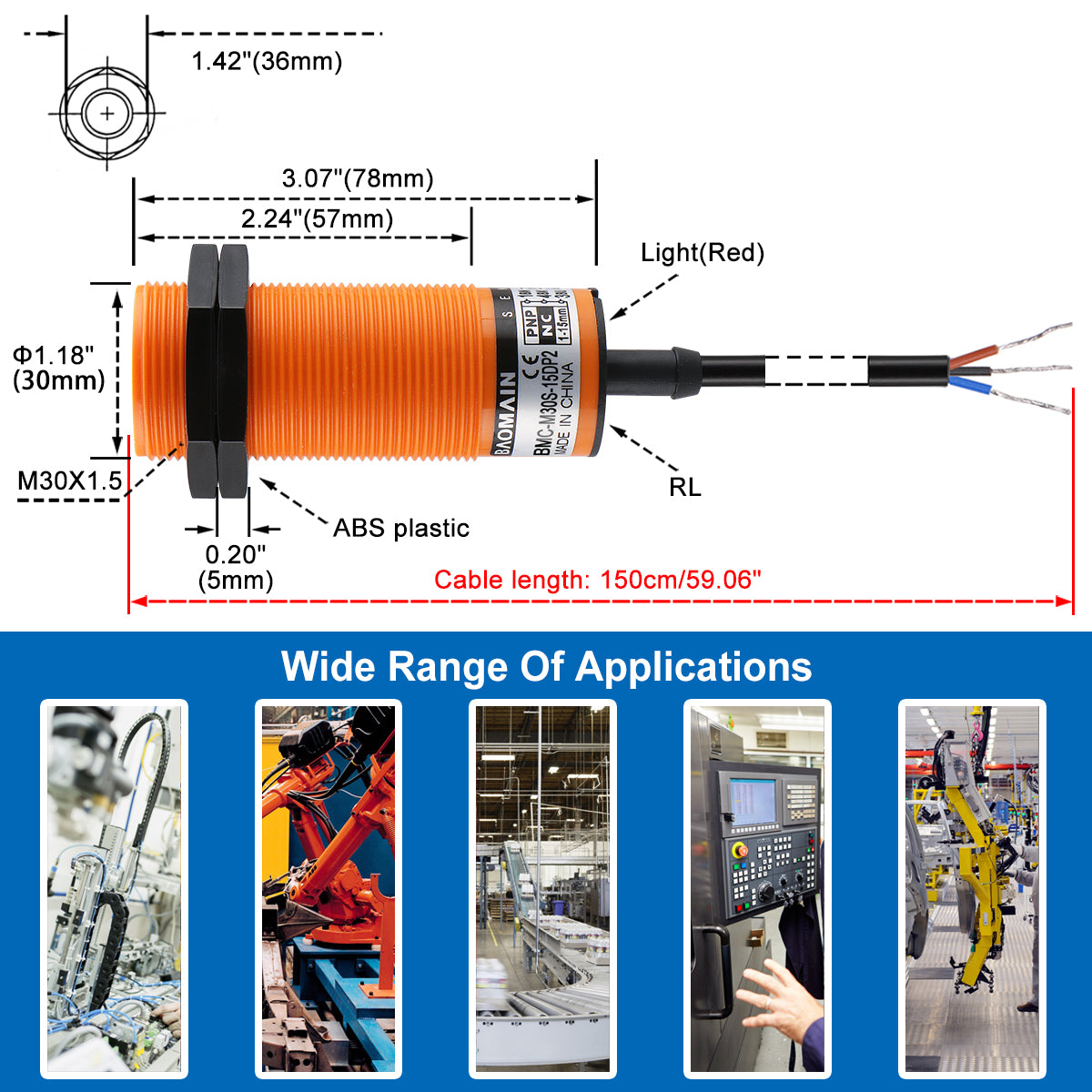

- Sensor design: Cylindrical M30
- Detector flush mounting acceptance: Non flush mountable

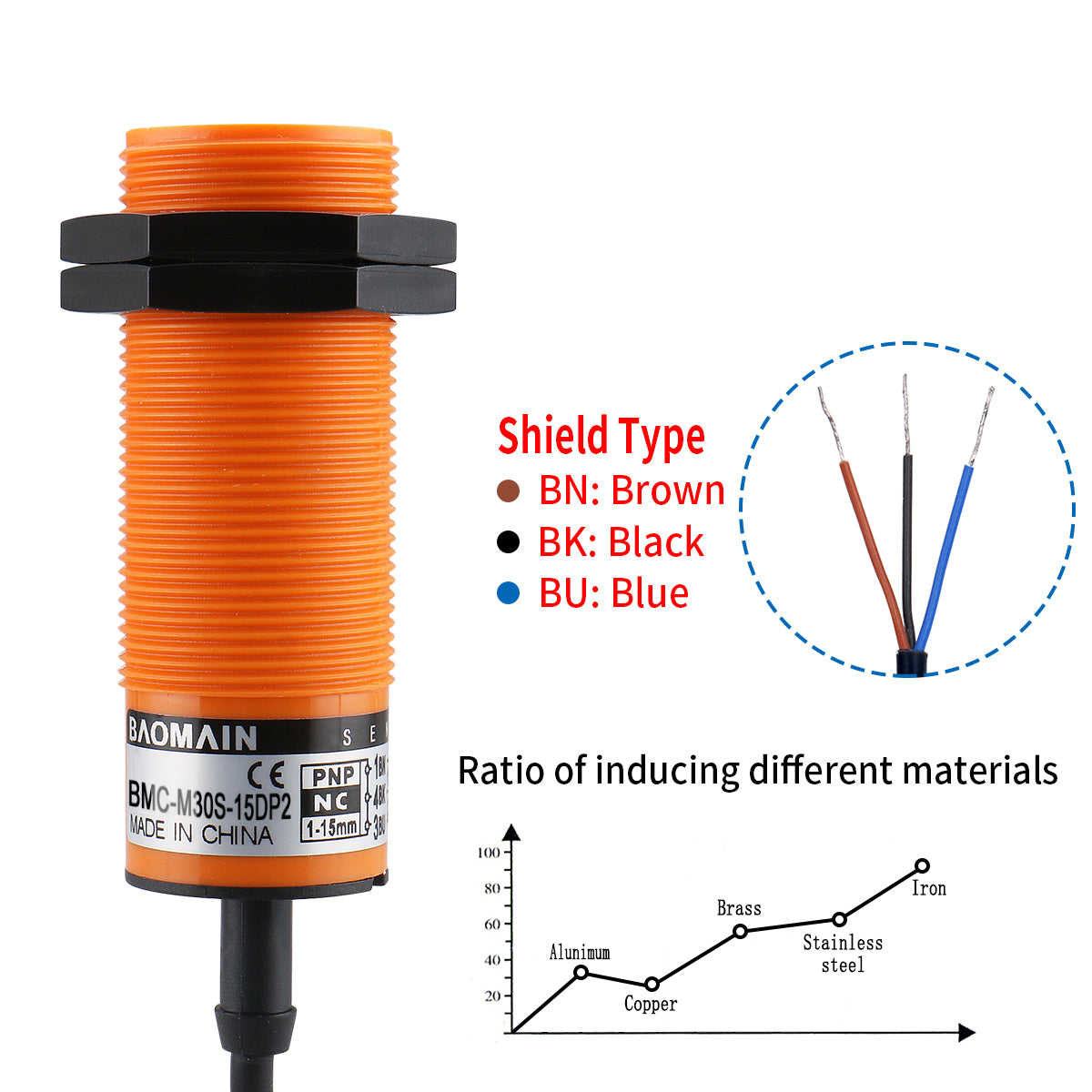

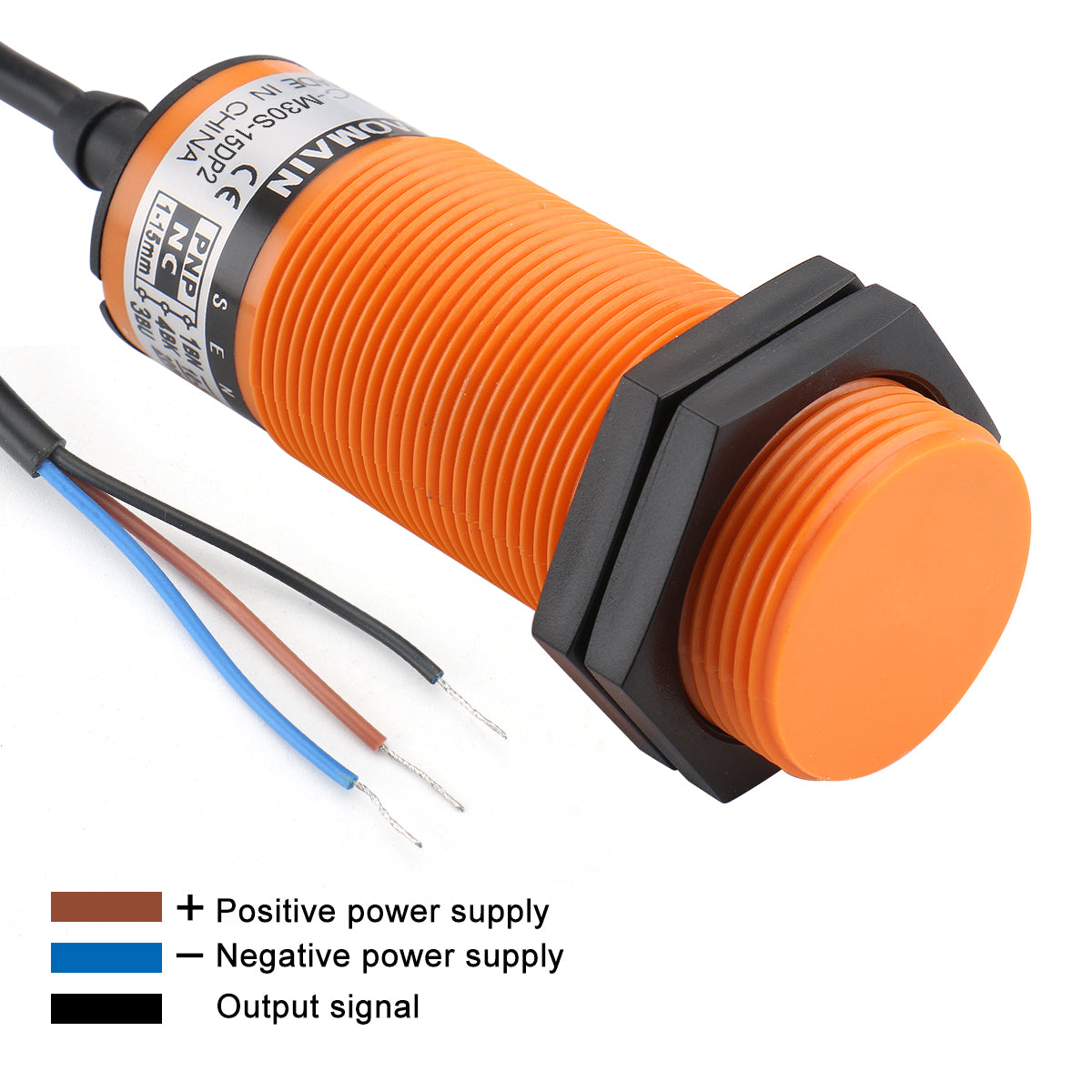

- Wiring technique: 3-wire
- [Sd] sensing range: 8...15 mm
- [Sn] nominal sensing distance: 15mm
- Discrete output function: 1 NC
- Output circuit type: DC
- Discrete output type: PNP
- Electrical connection: Cable
- Cable length: 2 m
- [Us] rated supply voltage: 12...24 V DC with reverse polarity protection
- Delay response: <10 ms
- IP degree of protection: IP67 double insulation conforming to IEC 60529
- [Sa] assured operating distance: 0...11 mm
- Adjustment zone: 0...17 mm
- Status LED: 1 LED for output state indication
- Supply voltage limits: 10...30 V DC
- Residual current: <100 mA open state
- Switching frequency: <150Hz
- Voltage drop: <2.5 V (closed)
