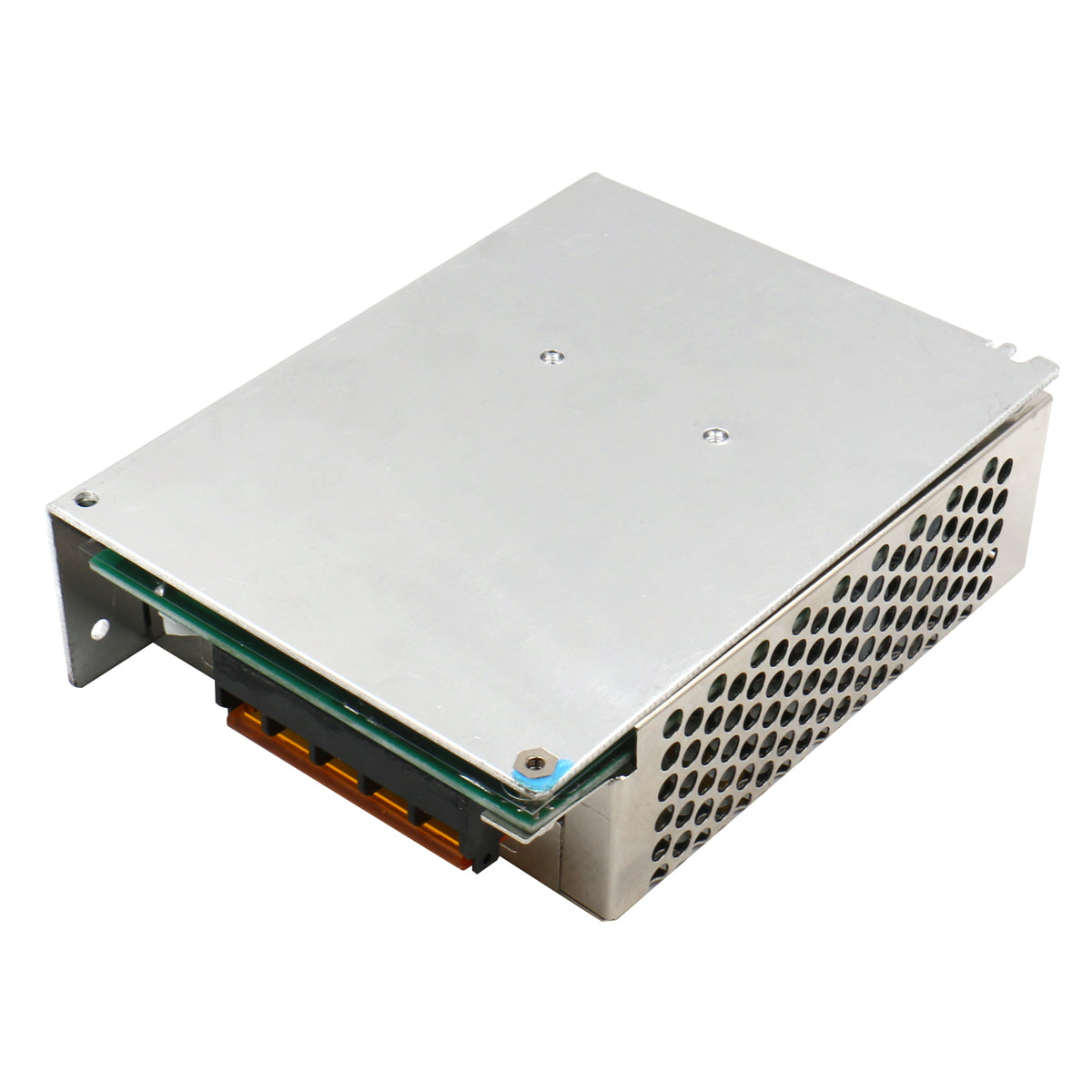

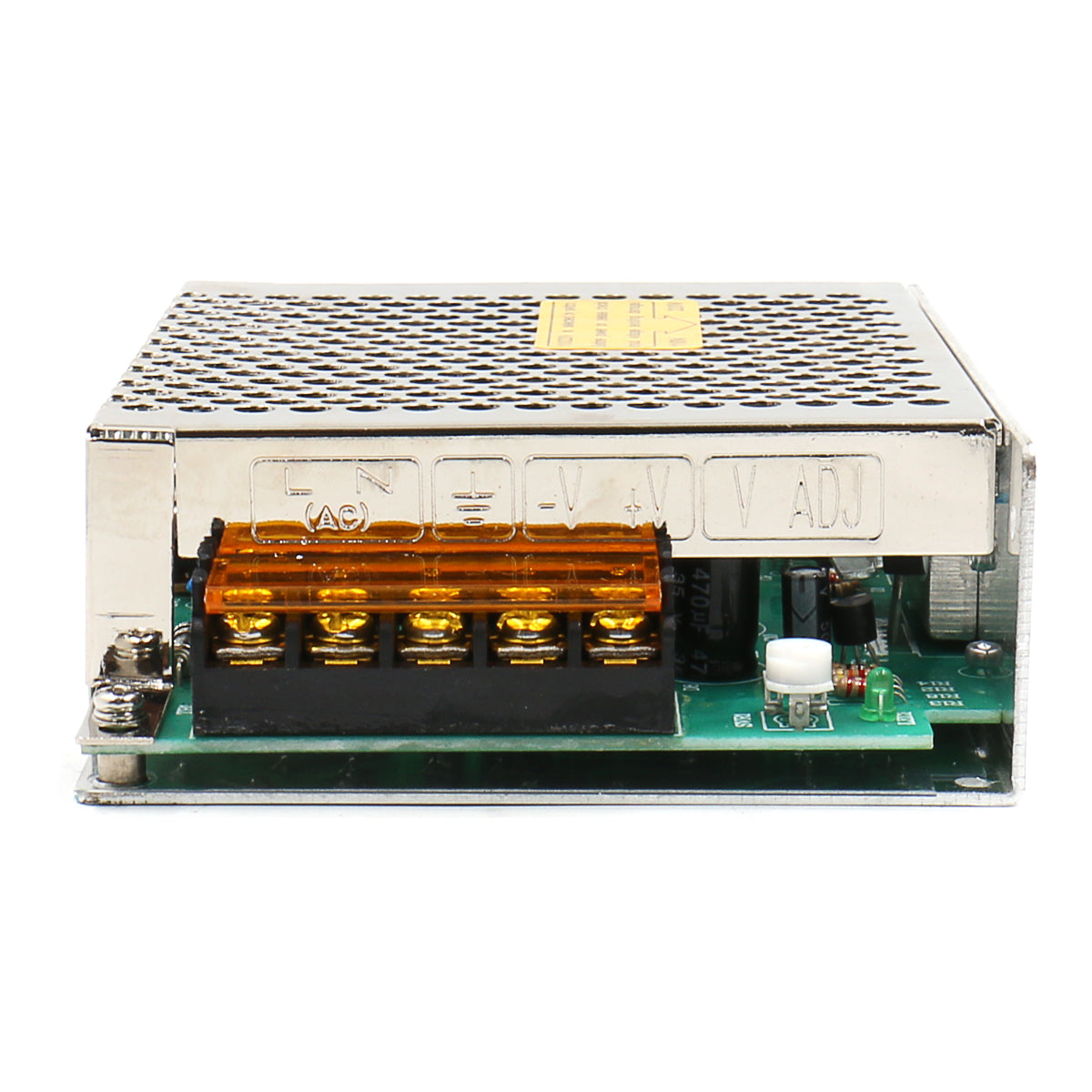

Baomain Switching Power Supply, Input 110V/220V AC, Output 12V/24VDC 35W, Power Transformer for LED Strip Light/CCTV Camera/Security System/Radio/Computer Project, CB listed
Baomain Switching Power Supply, Input 110V/220V AC, Output 12V/24VDC 35W, Power Transformer for LED Strip Light/CCTV Camera/Security System/Radio/Computer Project, CB listed
Baomain Switching Power Supply, Input 110V/220V AC, Output 12V/24VDC 35W, Power Transformer for LED Strip Light/CCTV Camera/Security System/Radio/Computer Project, CB listed
Baomain Switching Power Supply, Input 110V/220V AC, Output 12V/24VDC 35W, Power Transformer for LED Strip Light/CCTV Camera/Security System/Radio/Computer Project, CB listed
Baomain Switching Power Supply, Input 110V/220V AC, Output 12V/24VDC 35W, Power Transformer for LED Strip Light/CCTV Camera/Security System/Radio/Computer Project, CB listed
Baomain Switching Power Supply, Input 110V/220V AC, Output 12V/24VDC 35W, Power Transformer for LED Strip Light/CCTV Camera/Security System/Radio/Computer Project, CB listed

Baomain Switching Power Supply, Input 110V/220V AC, Output 12V/24VDC 35W, Power Transformer for LED Strip Light/CCTV Camera/Security System/Radio/Computer Project, CB listed

Shipping calculated at checkout.
  • Product Name: Switching Power Supply
  • Safety Compliance: CB, CE, RoHS
  • Frequency Range: 47-63 Hz
  • Current: 0.44A@110V, 0.22A@220V
  • Inrush current: 30A/115VAC; 45A/230VAC
  • Rated Power: 35W
  • Line regulation: ±0.5%
  • Load regulation: ±0.5%
  • Setup rise time: 1200ms, 30ms/115VAC; 500ms, 30ms/230VAC at full load
  • Hold up time: 10ms/115VAC; 60ms/230VAC at full load
  • Over current: 100%-120%<
  • Over voltage: 130%
  • Over load: Works at over 105%-120% of rating and recovers automatically
  • Working Temp: -20~+60 ℃
  • Working Humidity: 20-90% RH non-condensing
  • Storage Temp & Humidity: -20~+85℃, 10-95%RH
  • Temp. Coefficient: ±0.03%/℃
  • Safety Standard: Compliance to EN61347, IEC60950, EN60950-1:2011+A2:2013
  • Withsrand voltage: I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
  • Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/70%RH
  • EMC: Compliance to EN55032

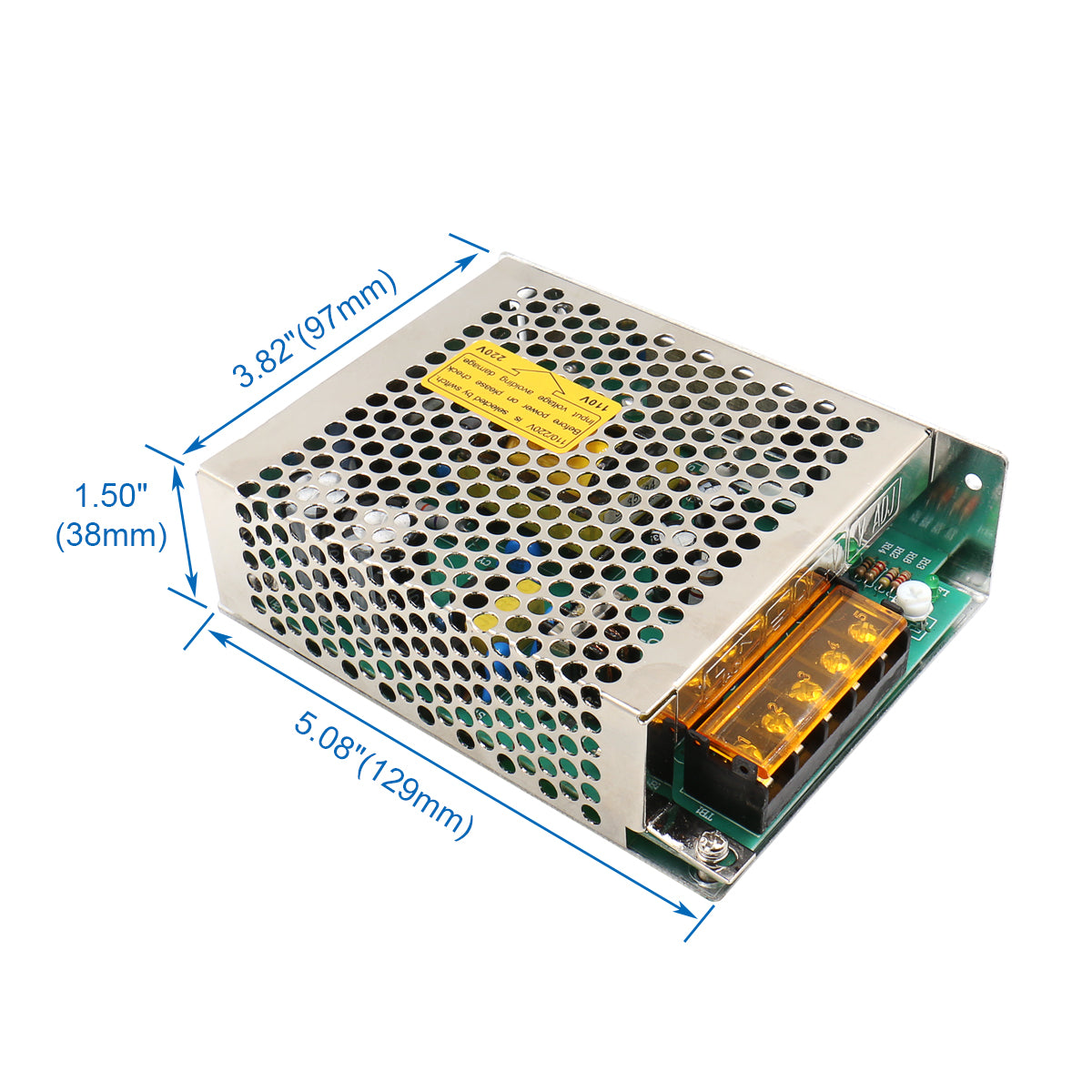

  • Dimension: 130*97*38(L*W*H)</li>
  • Switching power supply, convert AC 110/220V to DC 12V/24V
  • used in Industrial automation, LED, Lighting, Monitor application
  • Designed efficiency 85%
  • Indoor use only
  • 2 Year warranty
