Baomain Pneumatic Compact Air Cylinder, Bore 12mm Guide Rod Type Directly Mounted Double Acting CDQMB SMC Series
- Regular price
- $14.99
- Sale price
- $14.99
- Regular price
-

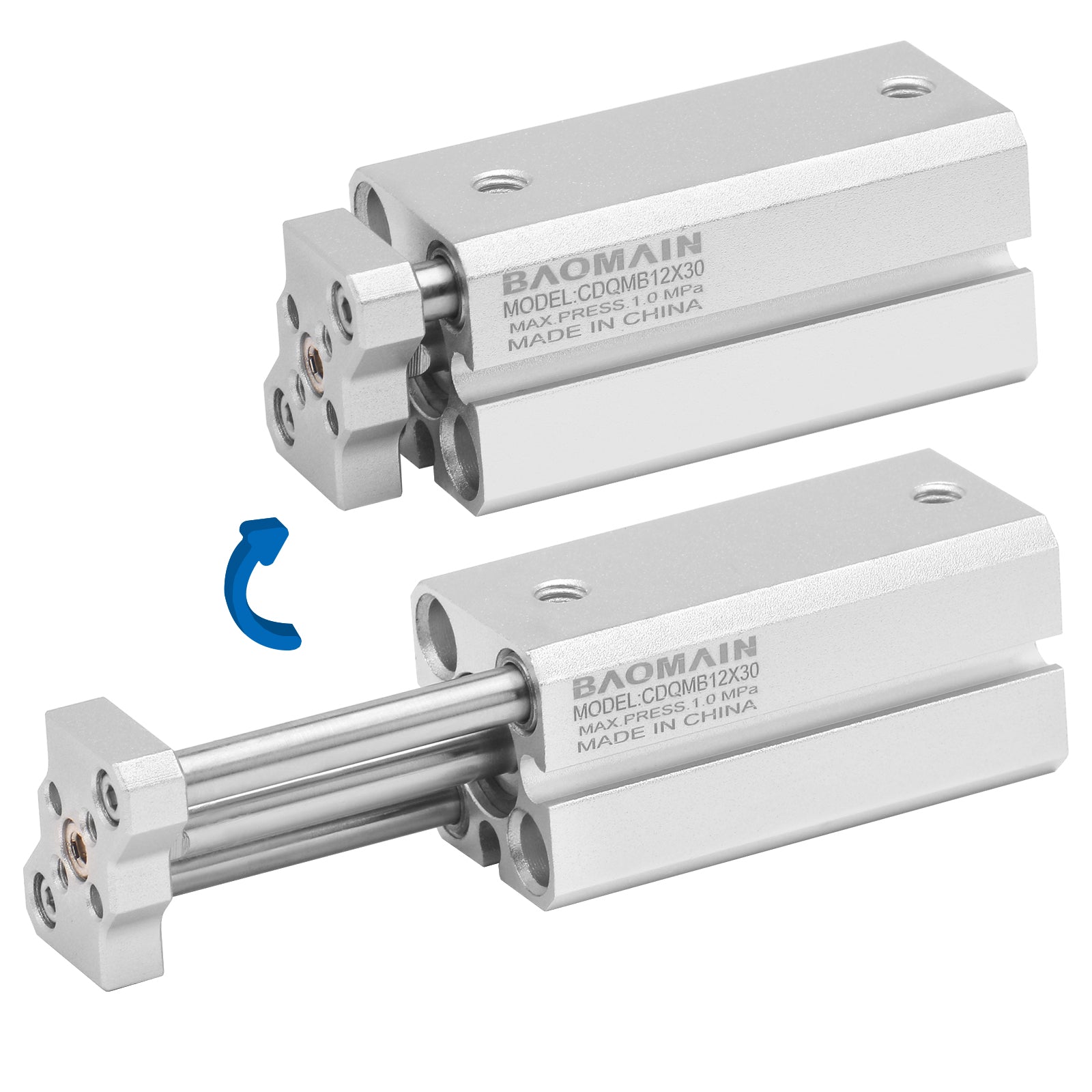

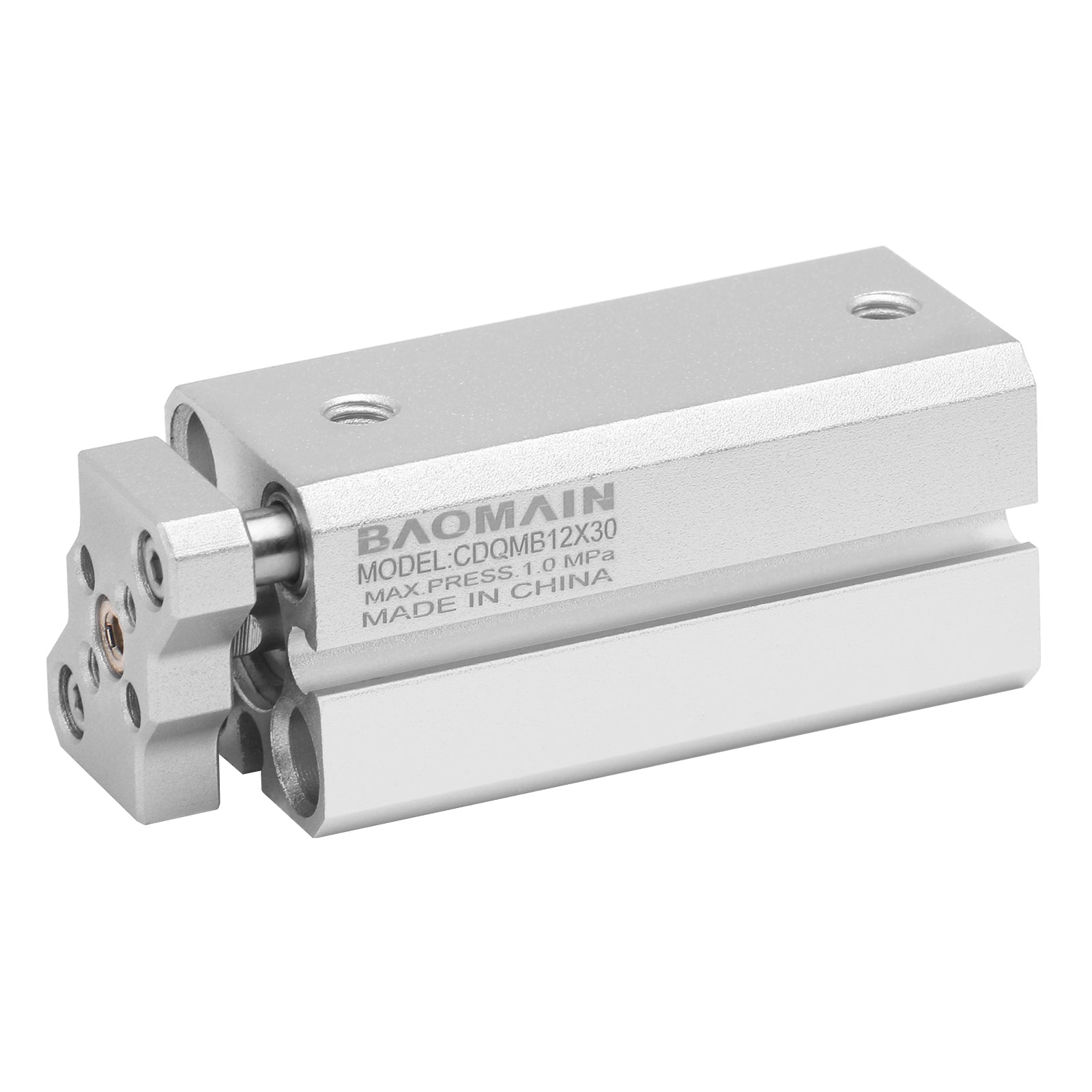

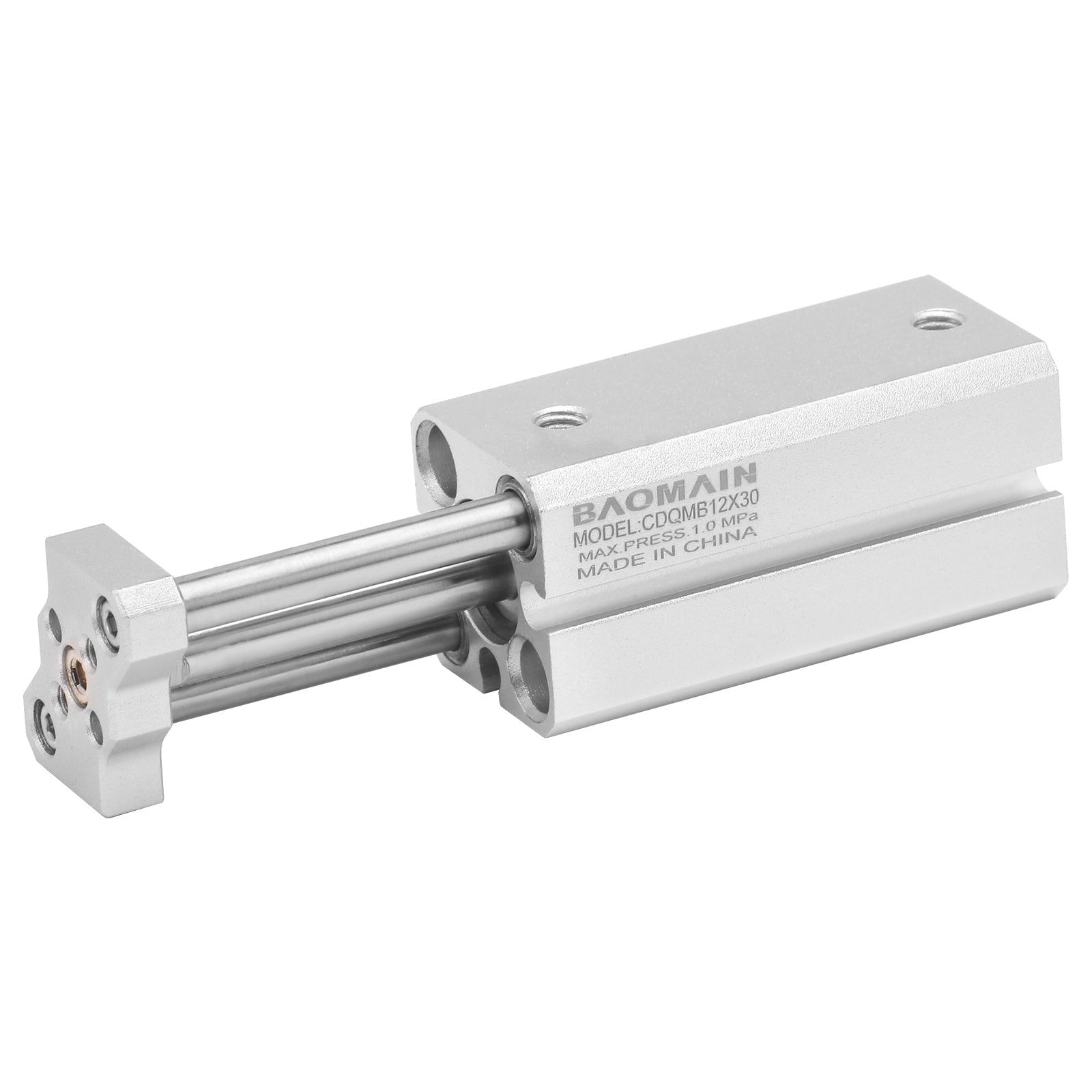

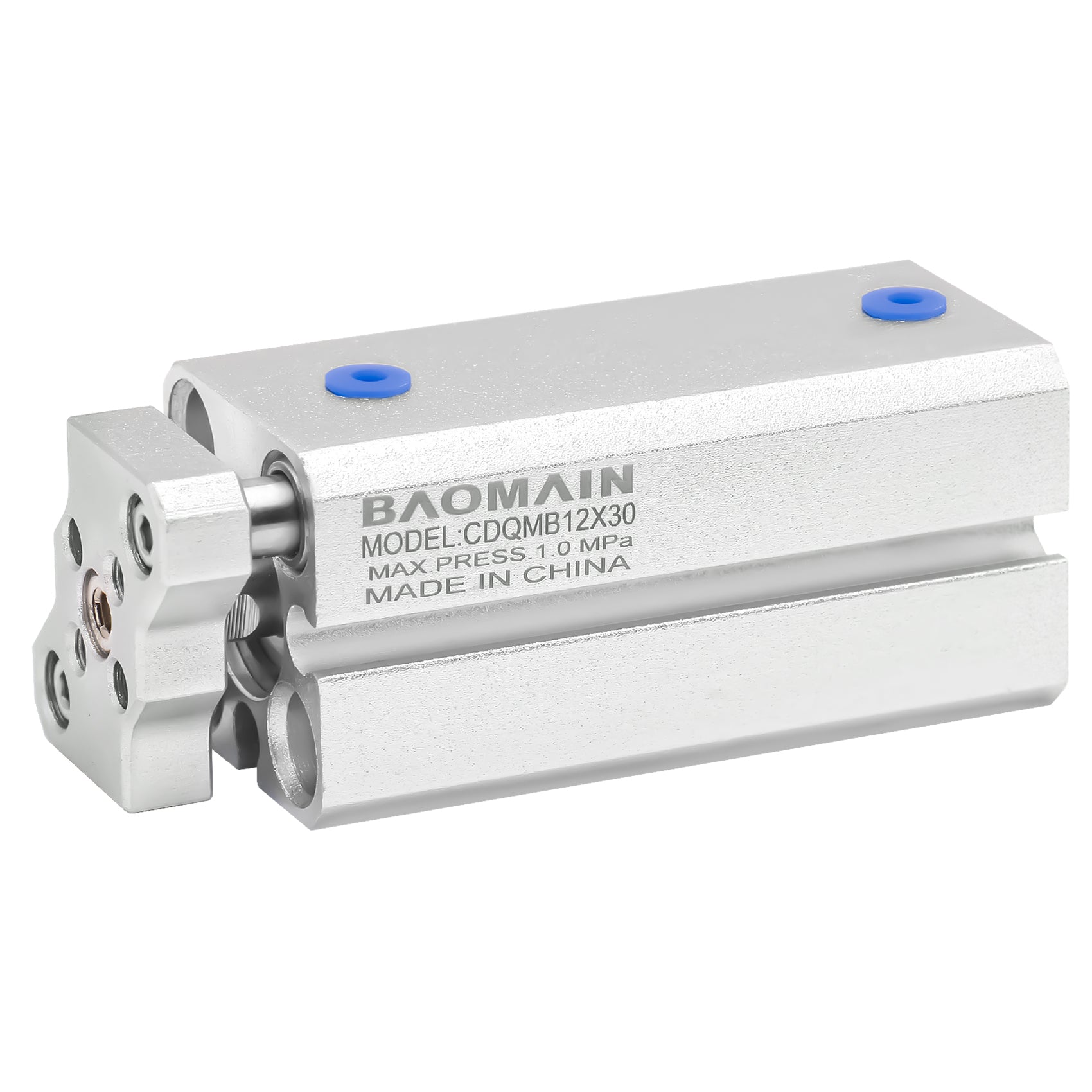

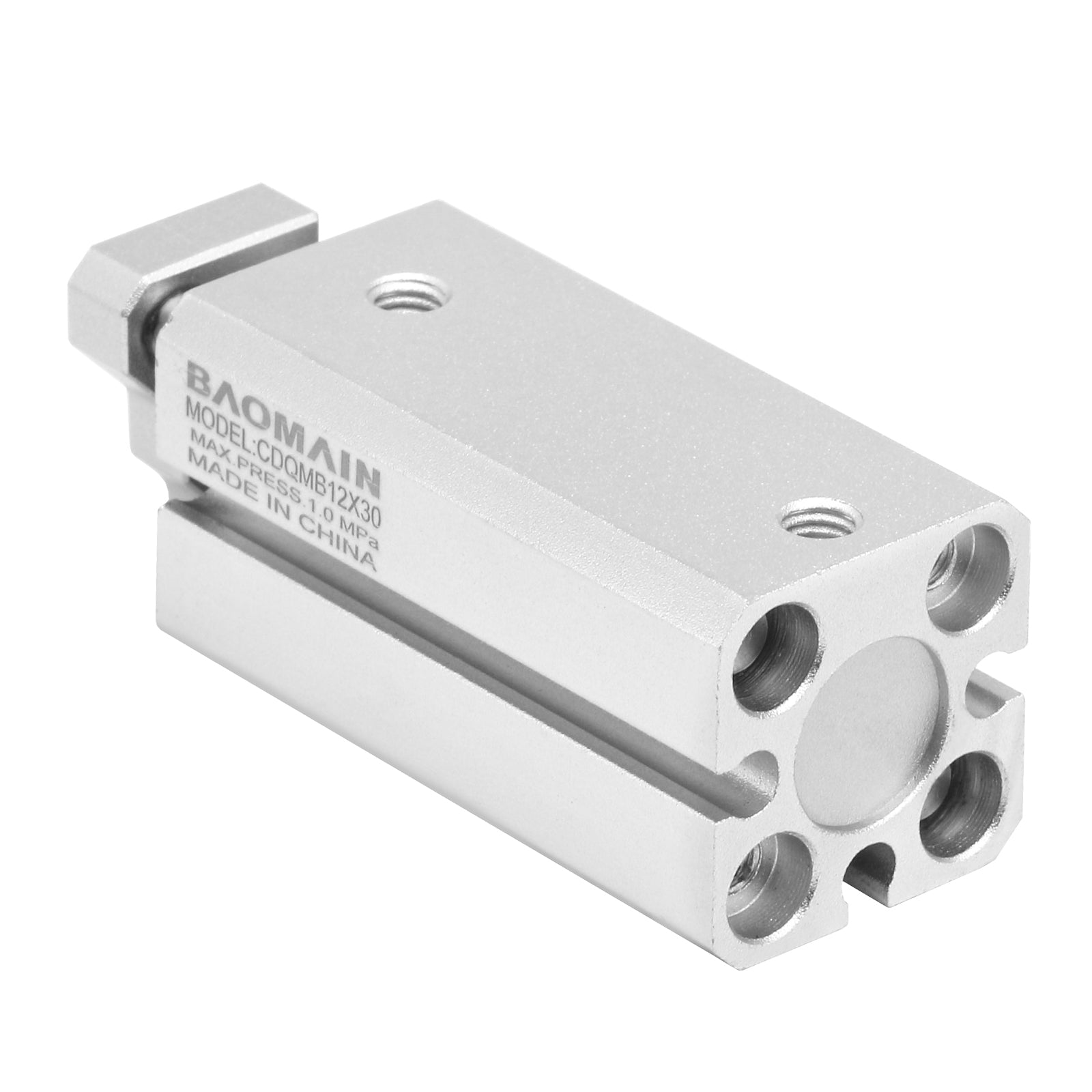

The compact cylinder with Guide Rod Type directly mounted, easy for maintance and installation. Applicable for D-A93 Magnetic Reed Sensor Switch.
- Bore: 12mm
- Stroke: 5/10/15/20/25/30/35/40/45/50mm
- Motion Type: Double Action
- Mounting Thread Diameter: M5x0.8
- Piston Rod External Dia.: 6mm / 0.24''
- Motion Type: Double Action
- Built-in Magnet: Yes
- Max Working Pressure: 1.0Mpa
- Piston speed: 50 to 500 mm/s

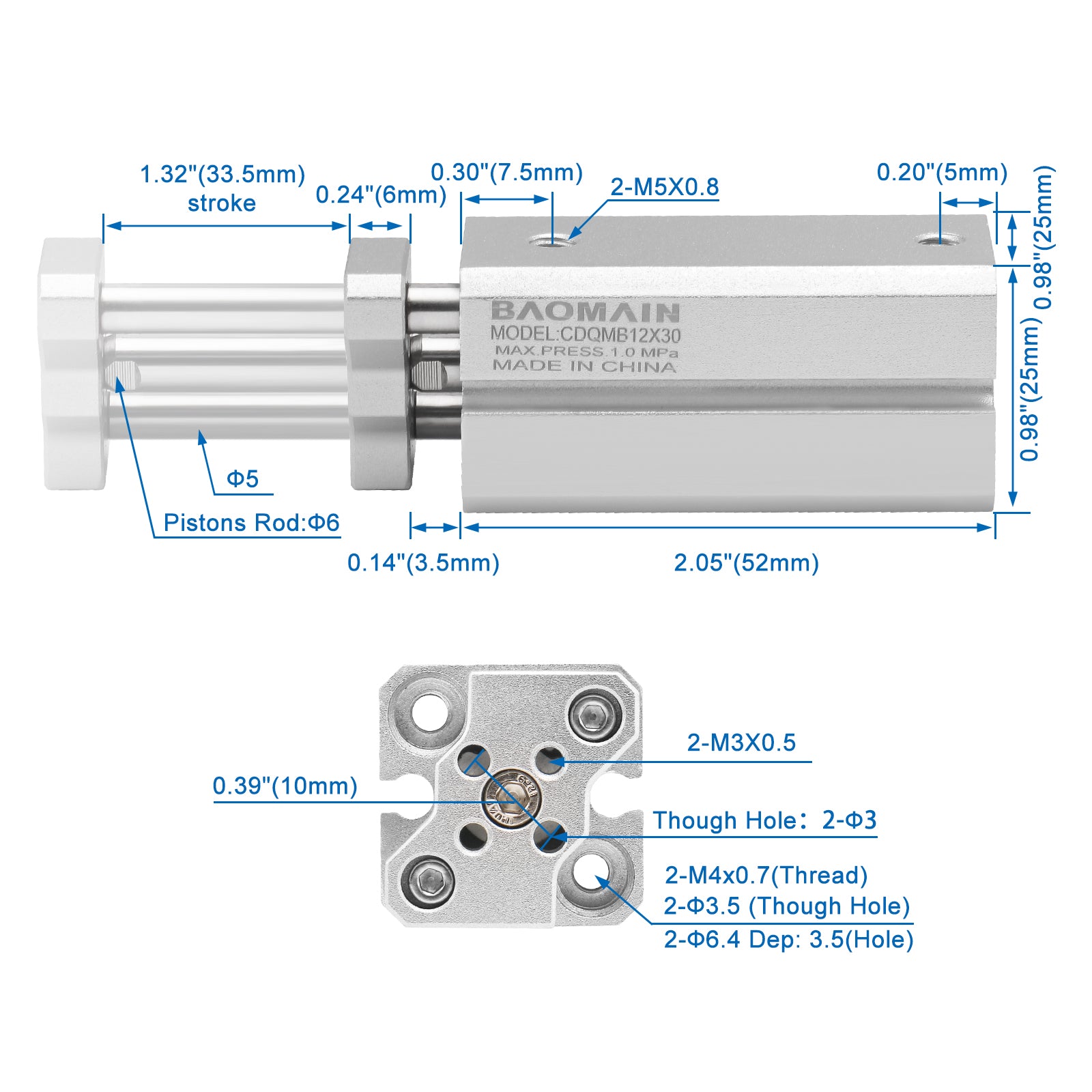

- Size: 61 x 25 x 25 mm / 2.40'' x 0.98'' x 0.98''
100 In Stock
