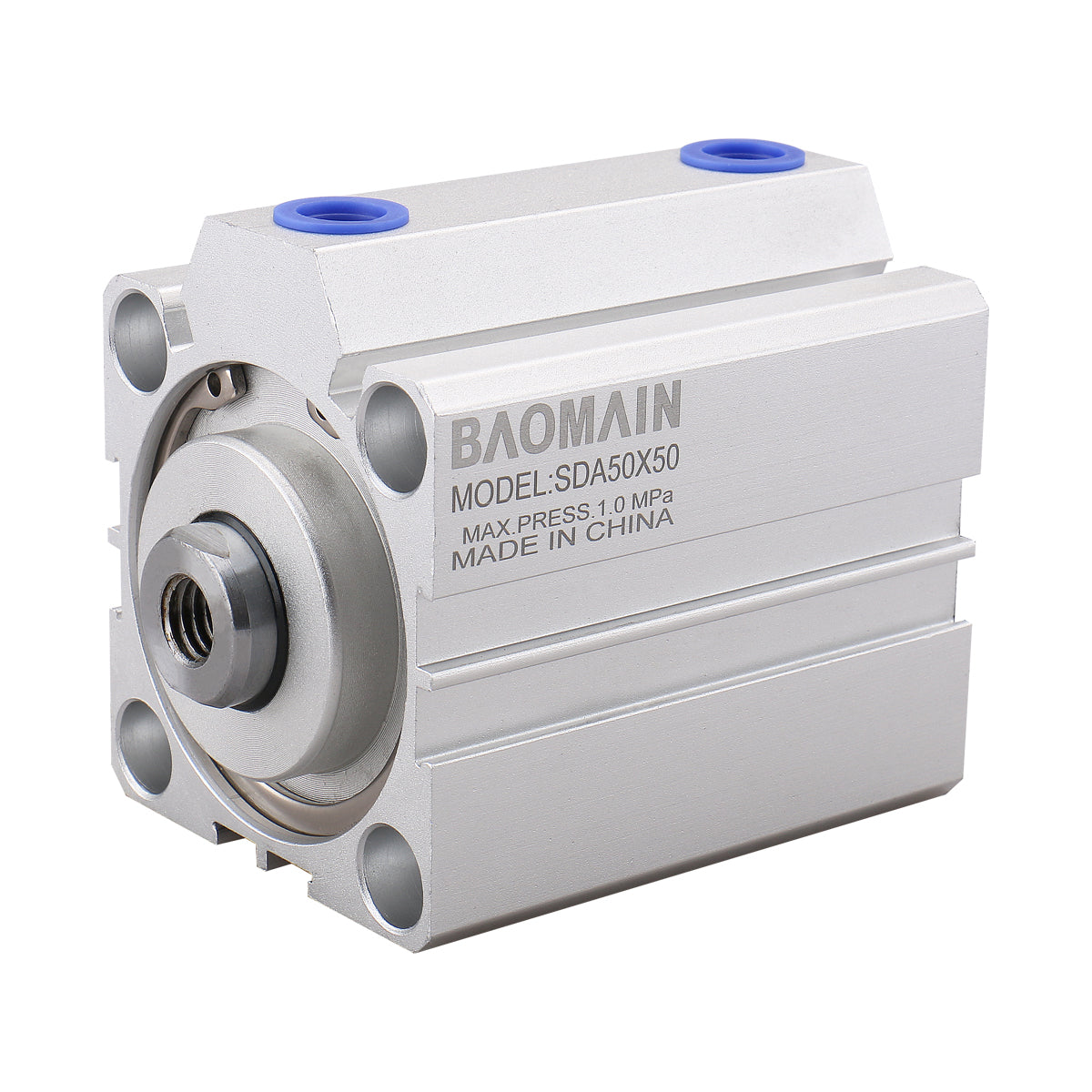

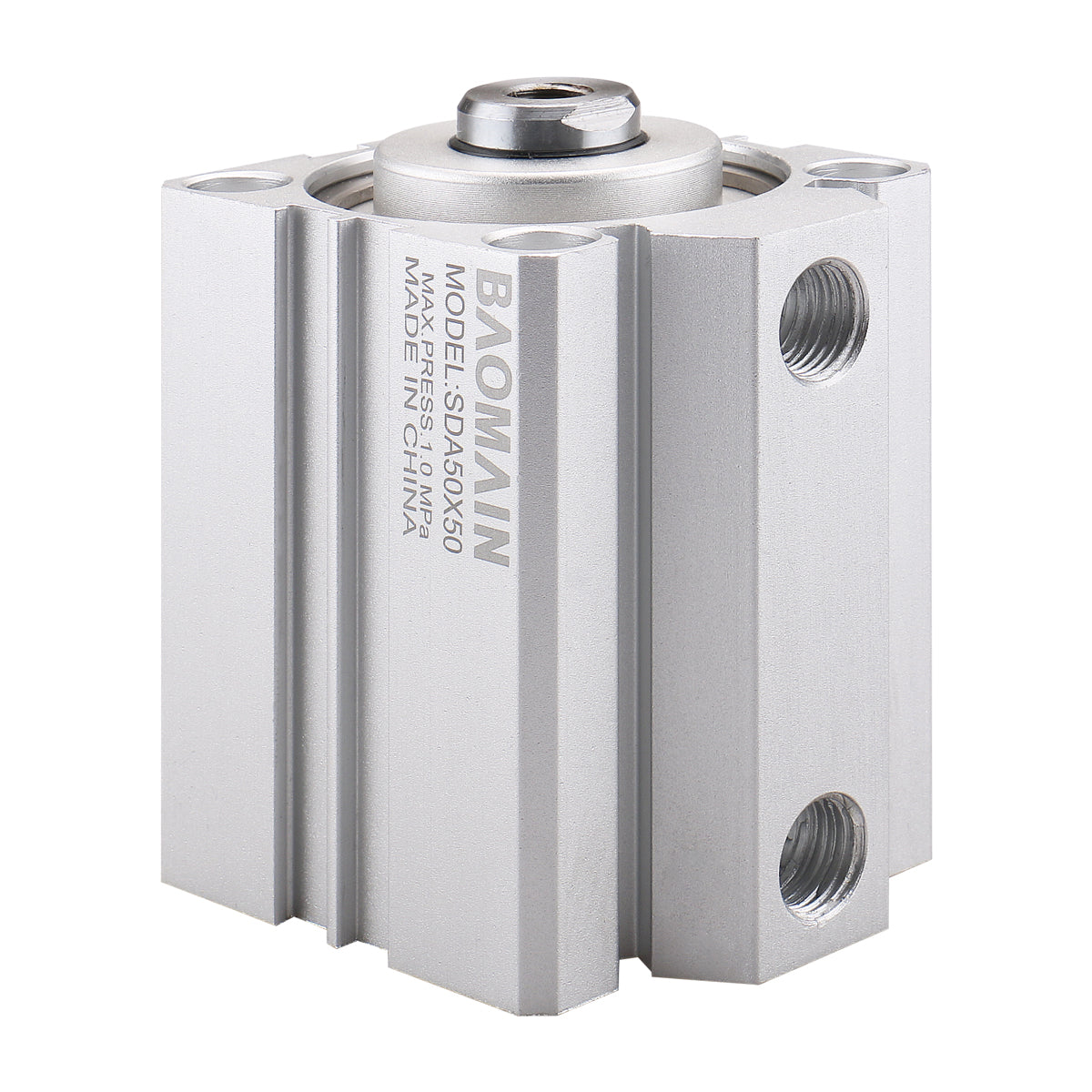

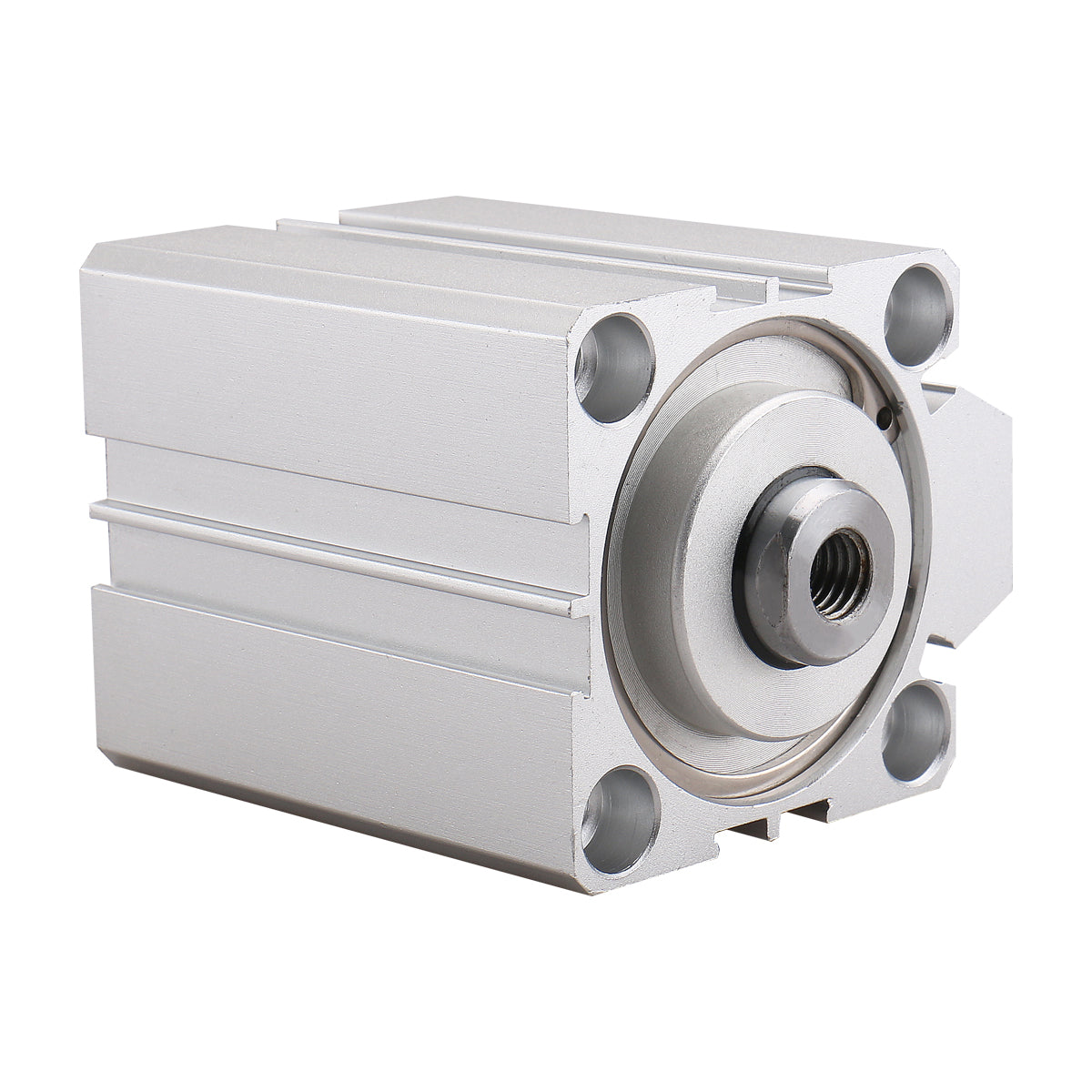

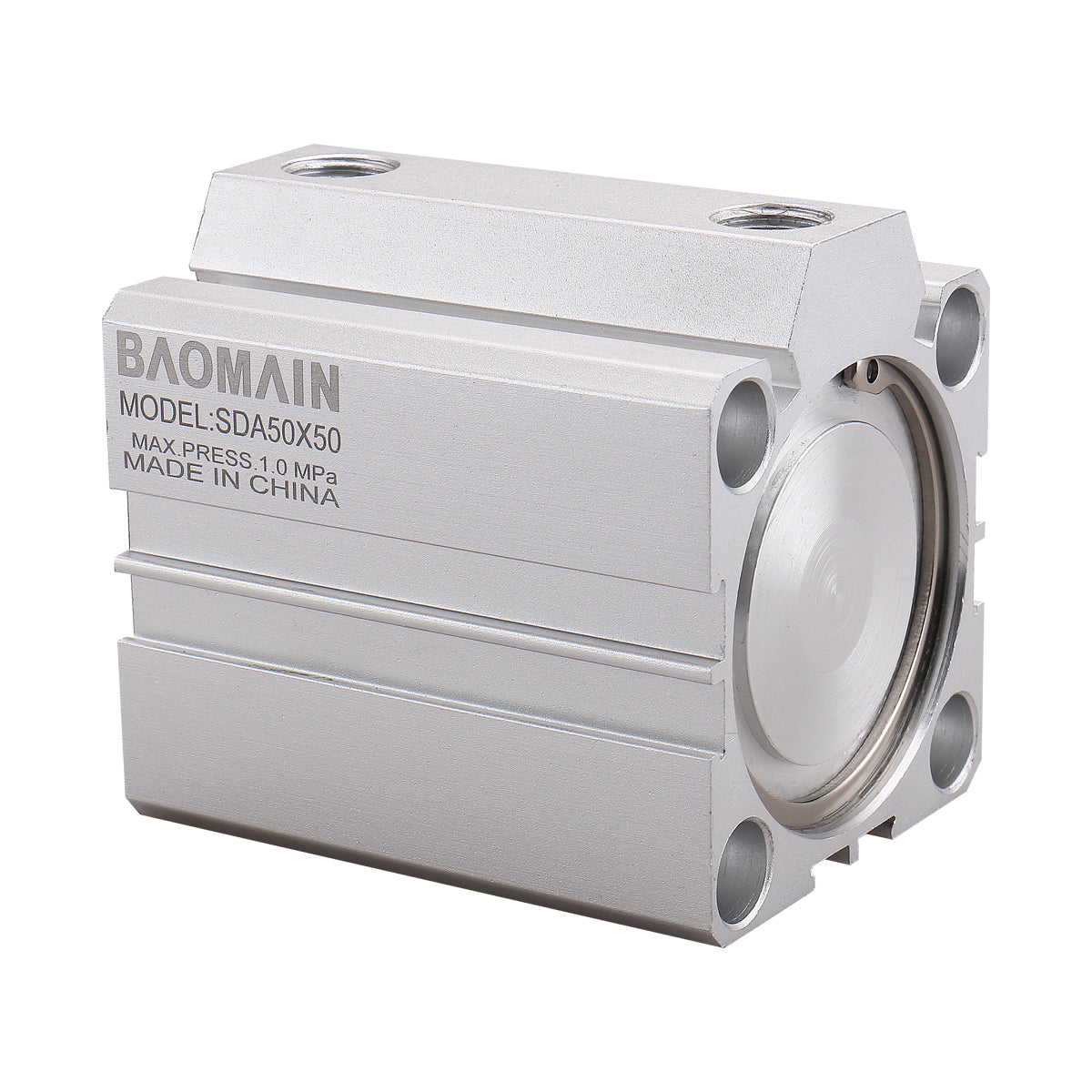

Baomain Compact Thin Pneumatic Air Cylinder SDA-50 Series 50mm Bore Double Action PT1/4 Port with 2 Fitting

  • $16.39
    Unit price per
Shipping calculated at checkout.


Compact thin cylinder requiring small space for installation, easy maintance and disassembly. Provided with push-in slot for installation of magnet switch, which can fix the magnet switch at any position. The air cylinder, without need to lubrication, suitable for used in the places with small space for installation.

  • Bore: 50mm
  • Port size: PT1/4
  • Motion Type: Double Action
  • Max Working Pressure: 1.0Mpa
  • Piston Rod External Diameter: 6mm/ 0.24"
  • Mounting Thread Diameter: 4.2mm/ 0.165"

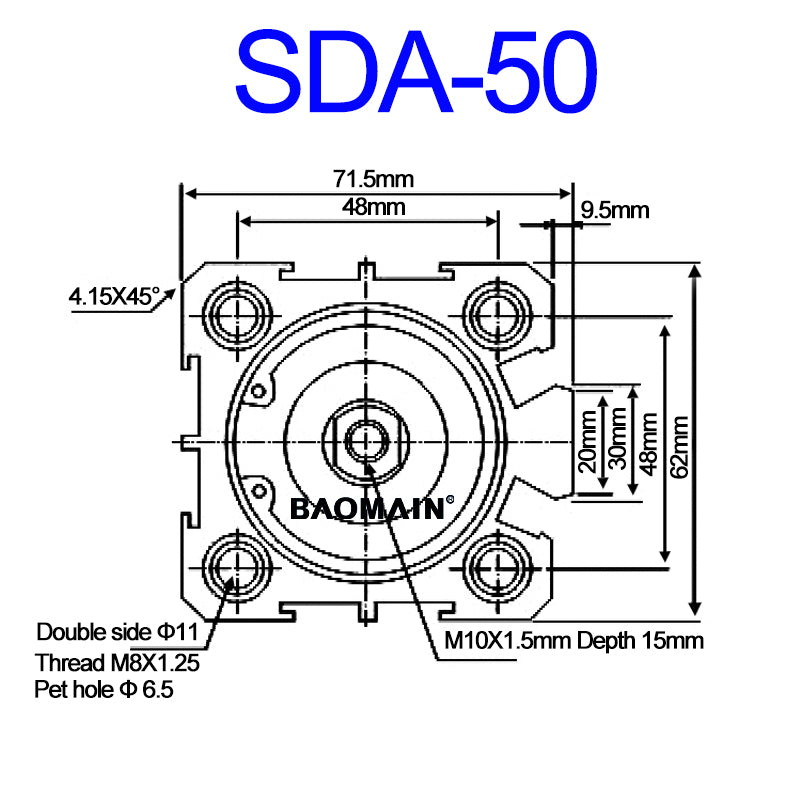

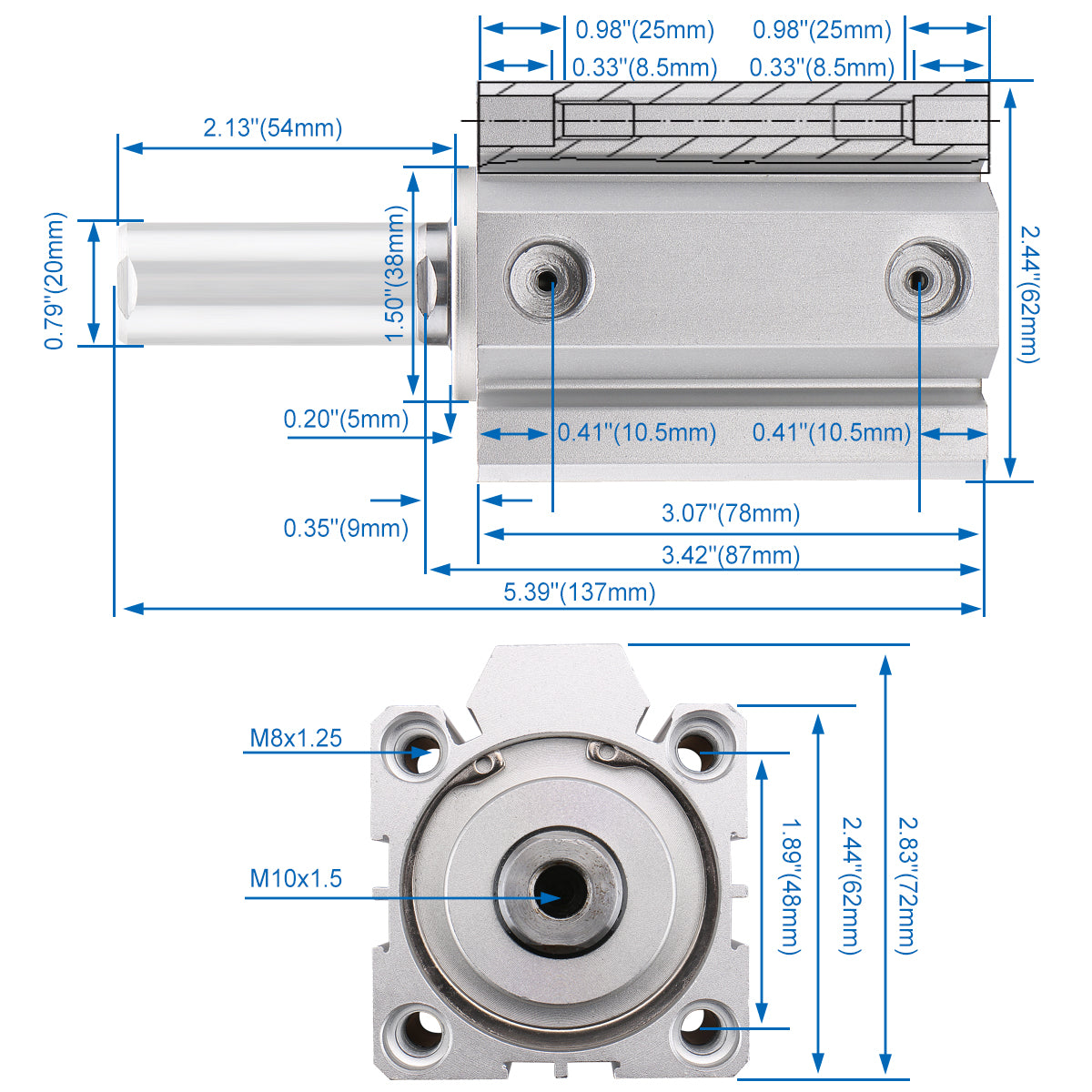

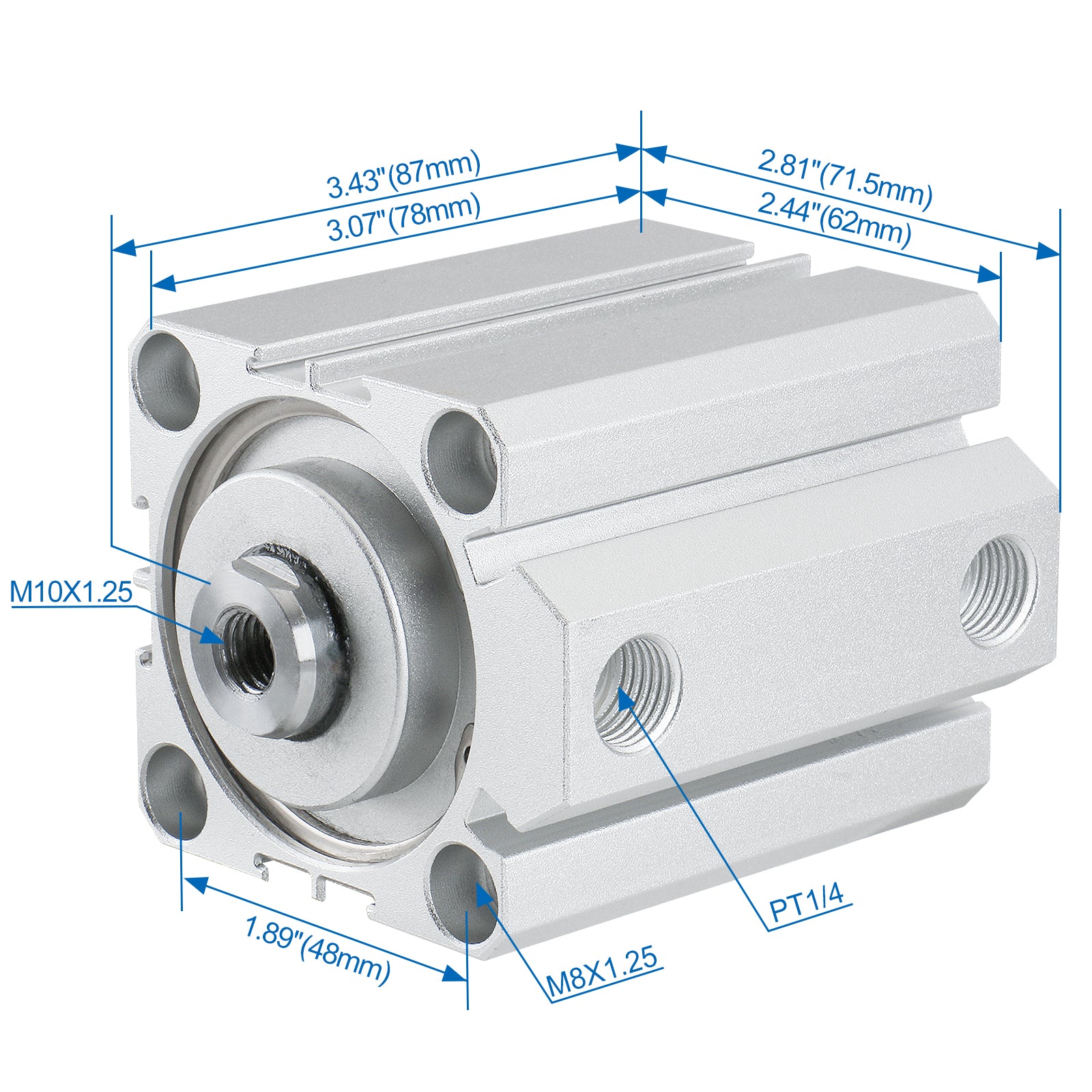

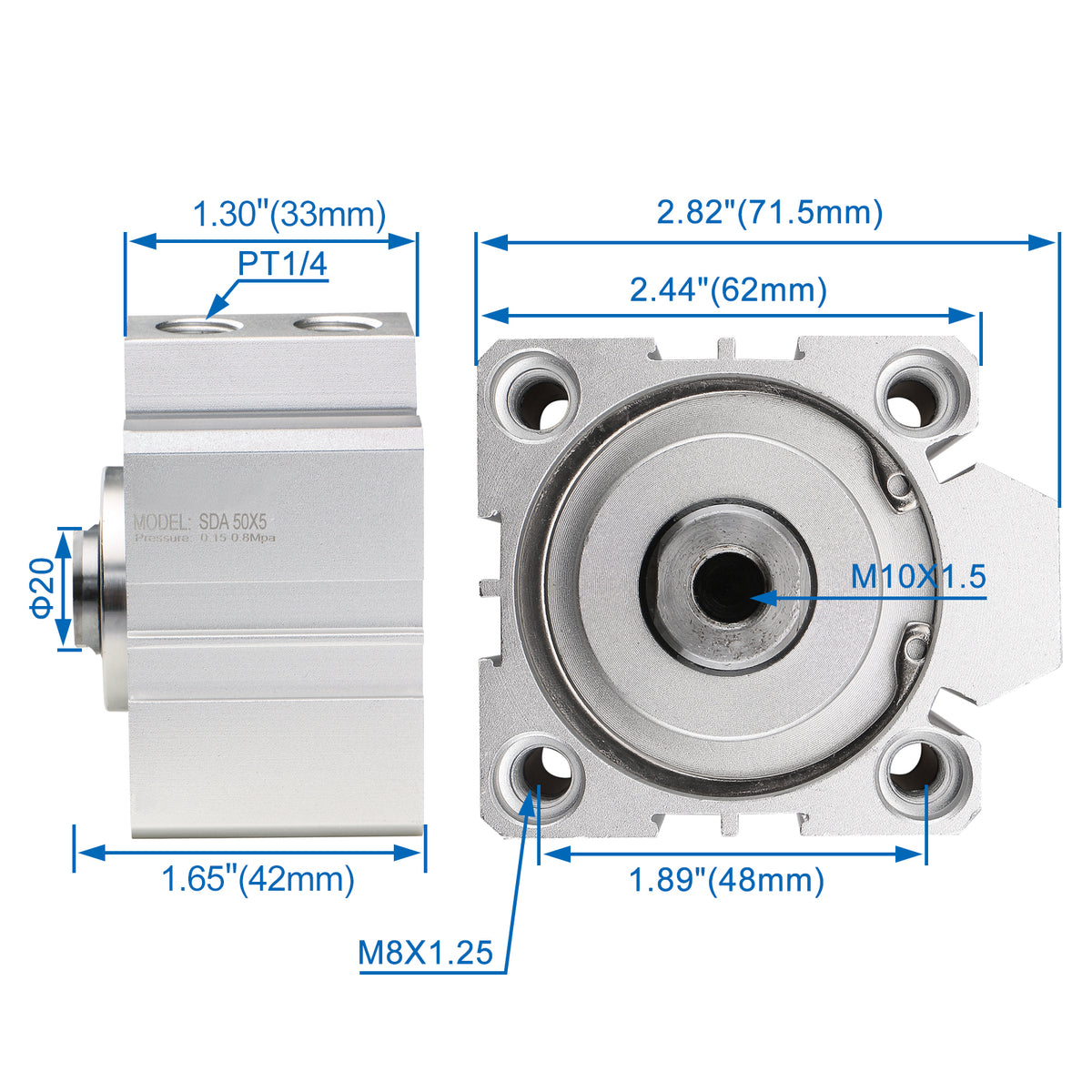

  • Size: 71 x 62 x 86mm/ 2.8" x 2.4" x 3.4" (L*W*H)
  • Fittings(6mm Tube OD X 1/4" PT) Pack of 2
