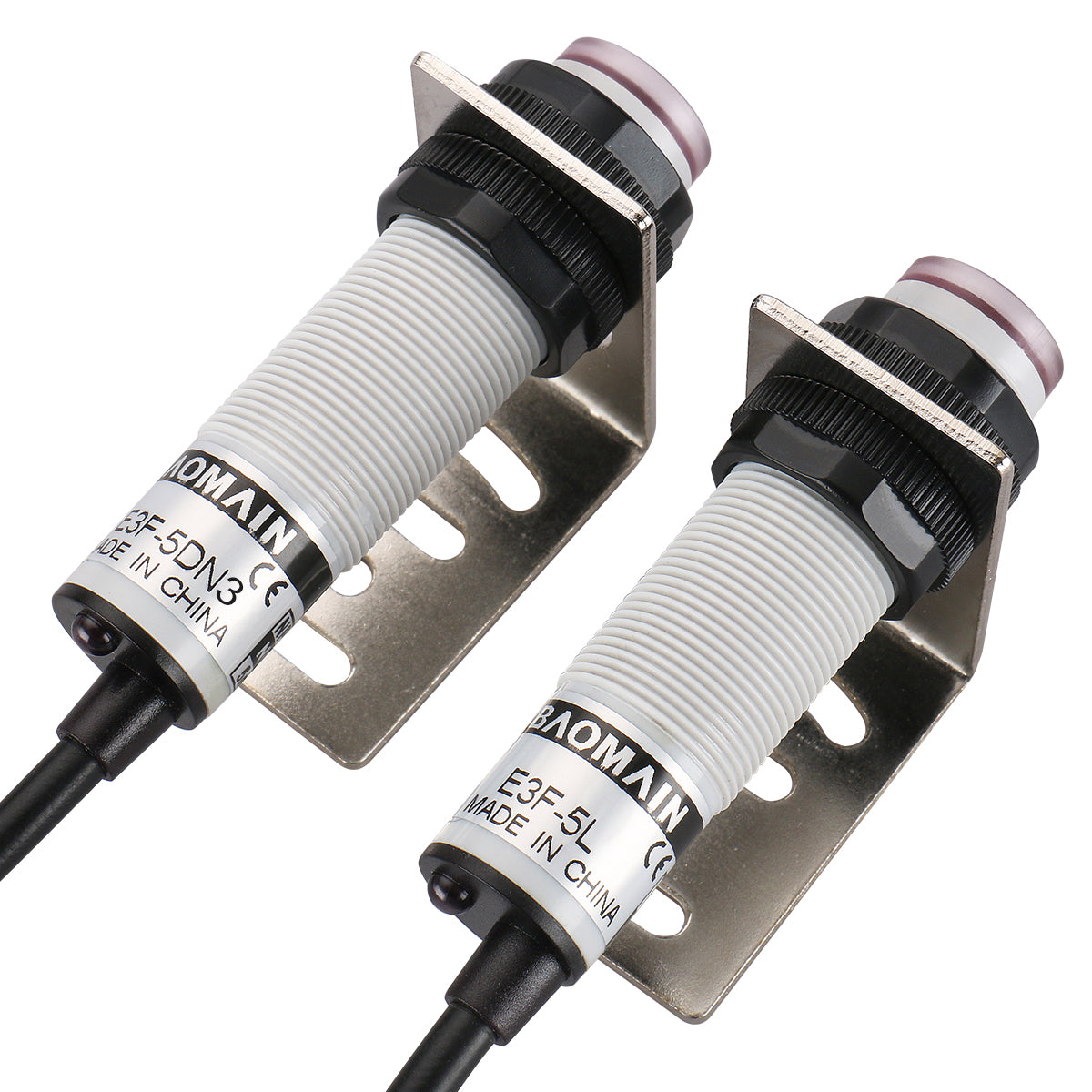

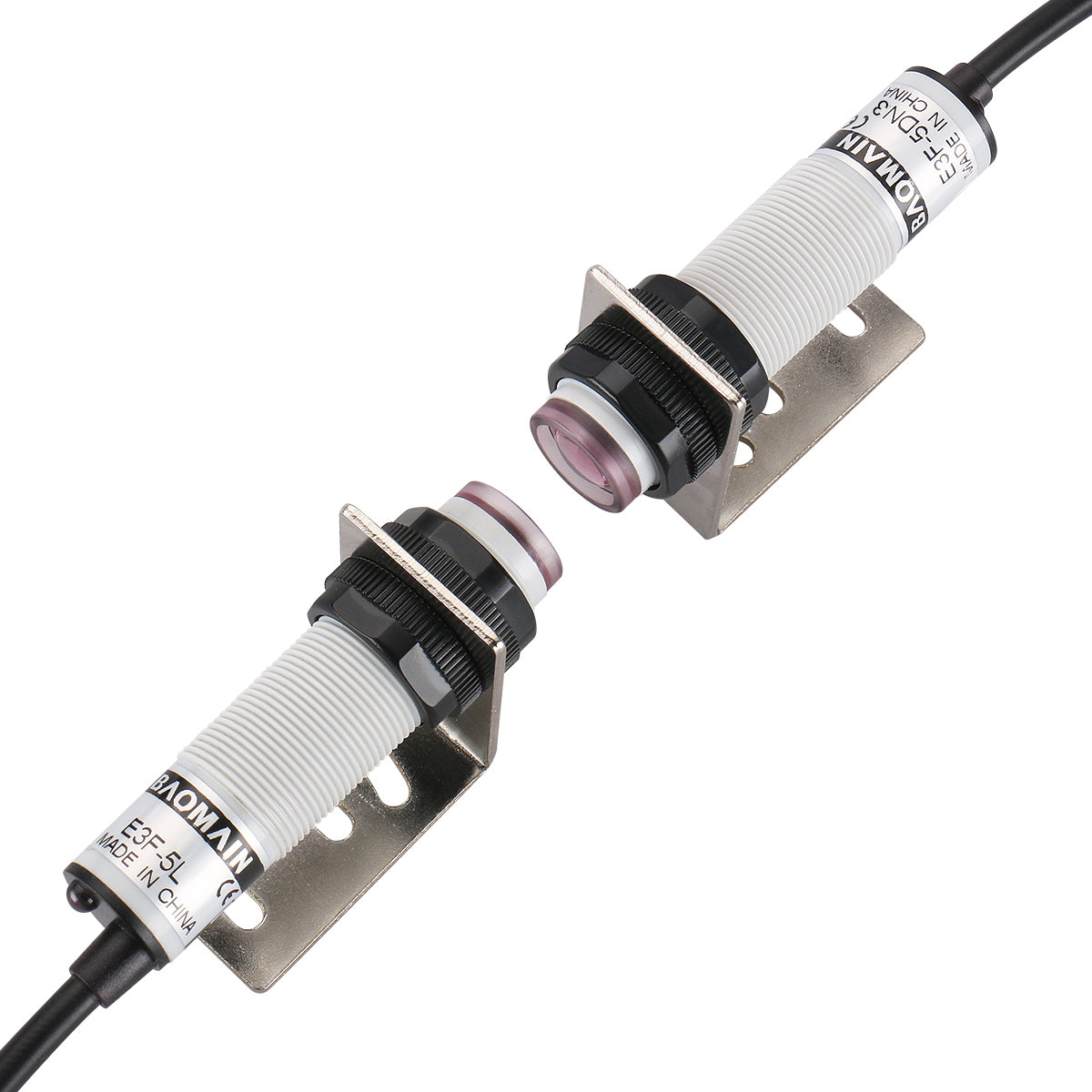

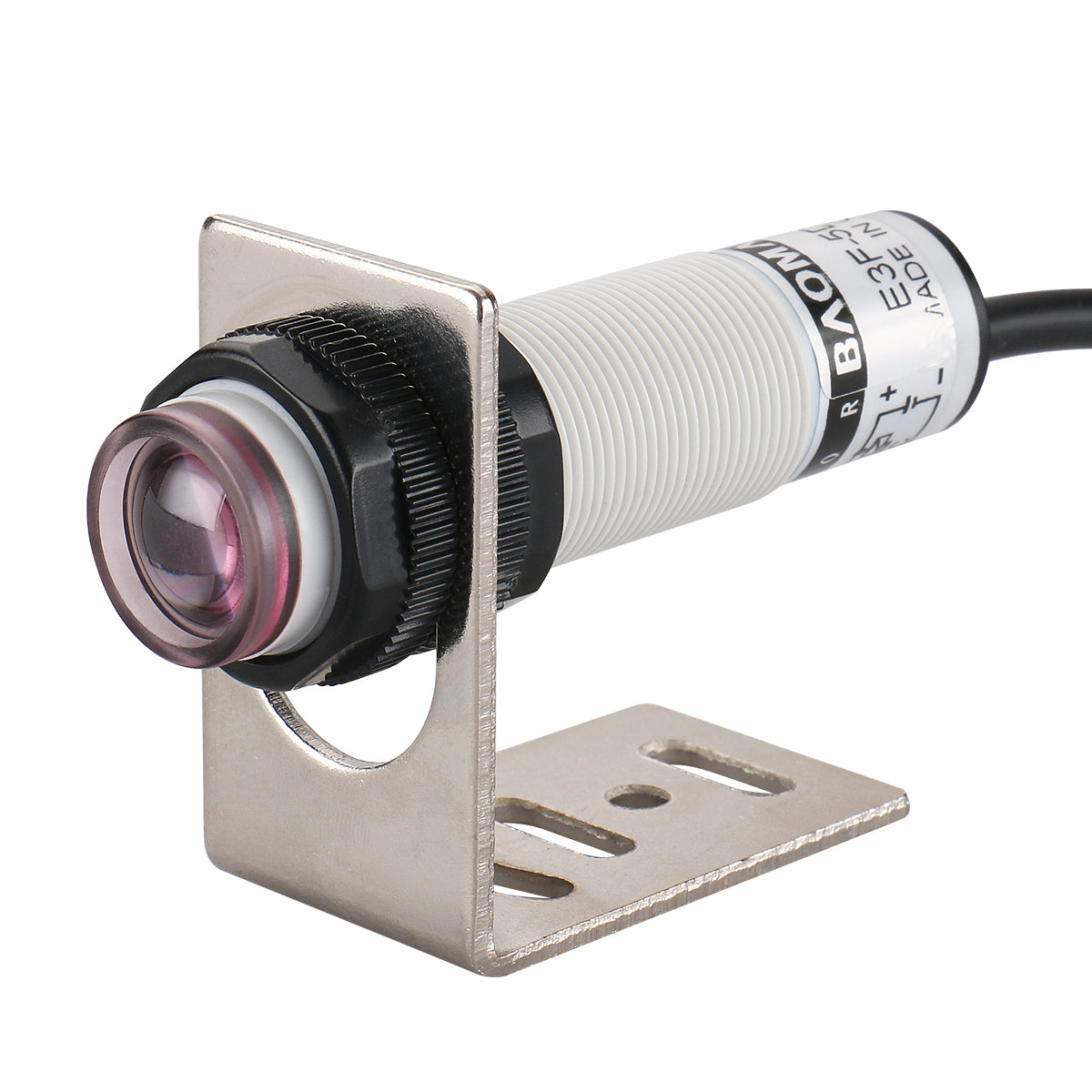

Baomain 1 Pair M18 Infrared Ray Through-Beam Reflection Optical Photoelectric Sensor Switch E3F-5DN3.5L NPN NO+NC 10-30VDC Sensing Distance 5m 4 Wires with Mounting Bracket
Baomain 1 Pair M18 Infrared Ray Through-Beam Reflection Optical Photoelectric Sensor Switch E3F-5DN3.5L NPN NO+NC 10-30VDC Sensing Distance 5m 4 Wires with Mounting Bracket
Baomain 1 Pair M18 Infrared Ray Through-Beam Reflection Optical Photoelectric Sensor Switch E3F-5DN3.5L NPN NO+NC 10-30VDC Sensing Distance 5m 4 Wires with Mounting Bracket
Baomain 1 Pair M18 Infrared Ray Through-Beam Reflection Optical Photoelectric Sensor Switch E3F-5DN3.5L NPN NO+NC 10-30VDC Sensing Distance 5m 4 Wires with Mounting Bracket
Baomain 1 Pair M18 Infrared Ray Through-Beam Reflection Optical Photoelectric Sensor Switch E3F-5DN3.5L NPN NO+NC 10-30VDC Sensing Distance 5m 4 Wires with Mounting Bracket
Baomain 1 Pair M18 Infrared Ray Through-Beam Reflection Optical Photoelectric Sensor Switch E3F-5DN3.5L NPN NO+NC 10-30VDC Sensing Distance 5m 4 Wires with Mounting Bracket

Baomain 1 Pair M18 Infrared Ray Through-Beam Reflection Optical Photoelectric Sensor Switch E3F-5DN3.5L NPN NO+NC 10-30VDC Sensing Distance 5m 4 Wires with Mounting Bracket

Shipping calculated at checkout.
  • Product Name: Photoelectric Switch
  • Sending Light: Infrared Rays
  • Model: E3F-5DN3/E3F-5L
  • Wire Type : DC 4 Wire, Proximity-sensing / Opposite Type
  • Type: NPN NO+NC
  • Voltage: DC 10-30V
  • Current: 200mA
  • Sensing Distance: 5m
  • Head Diameter: 16mm
  • Thread diameter: M18

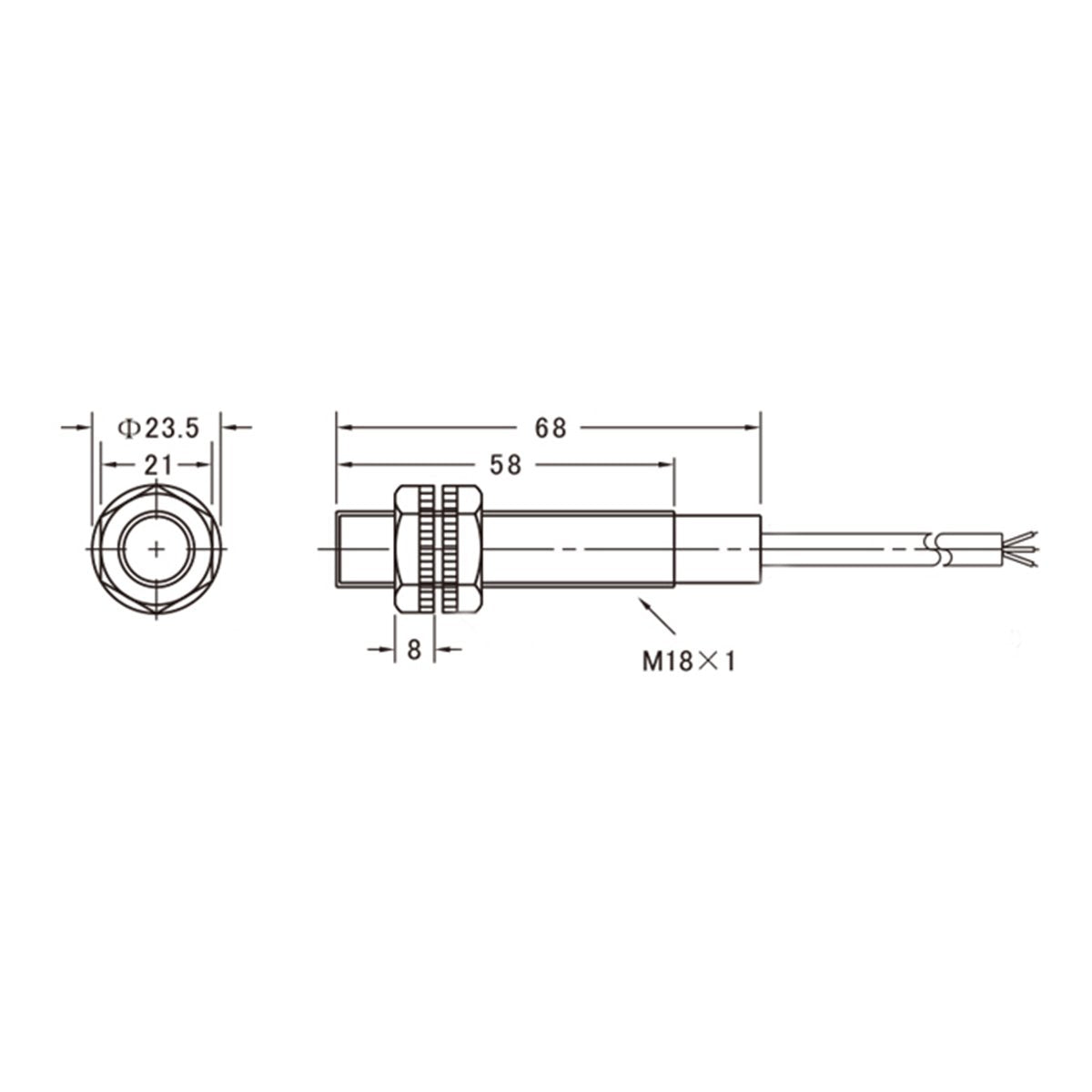

  • Body Size: 2.3 x 7cm/0.9" x 2.7'' (Max.D*L)
  • Material: Plastic, Alloy
  • Cable Length: 150cm
  • Weight: 190g

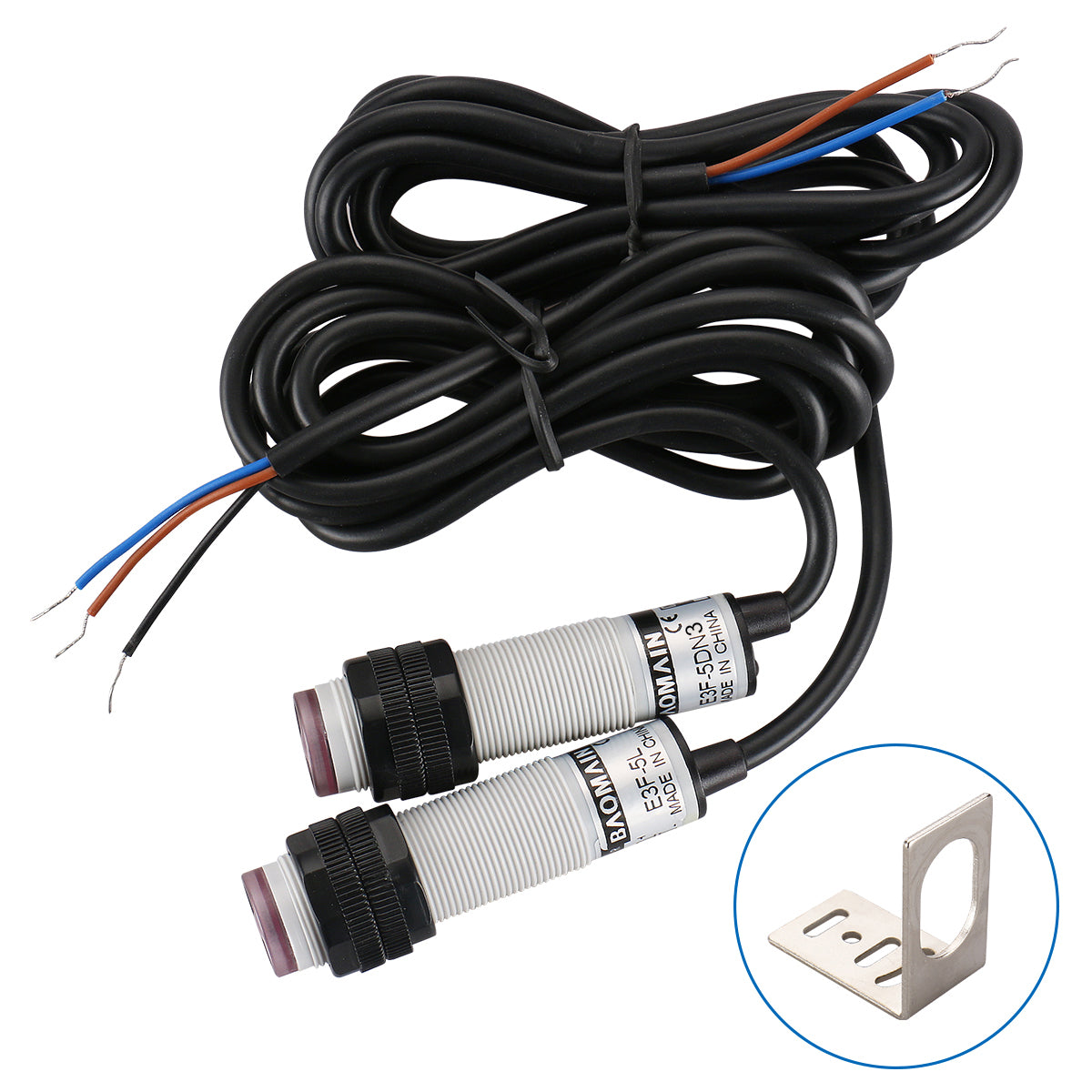

  • Package Content: 1 Pair x Photoelectric Switch + 2 x mounting bracket
