Baomain M18 Photoelectric Sensor Adjustable Diffuse Reflection Sensor Switch E3F-DS30P3 PNP NO+NC 200mA Sensing Distance 10-30cm 4 Wires

$10.39
Unit price per

Shipping calculated at checkout.

Optical switch control by infraredray,as proximity sensor,including a transmitter and receiver in it. A retroreflective arrangement places the transmitter and receiver at the same location and uses a reflector to bounce the light beam back from the transmitter to the receiver.An object is sensed when the beam is interrupted and fails to reach the receiver. It can be applied in security system,manufacturing industry etc.

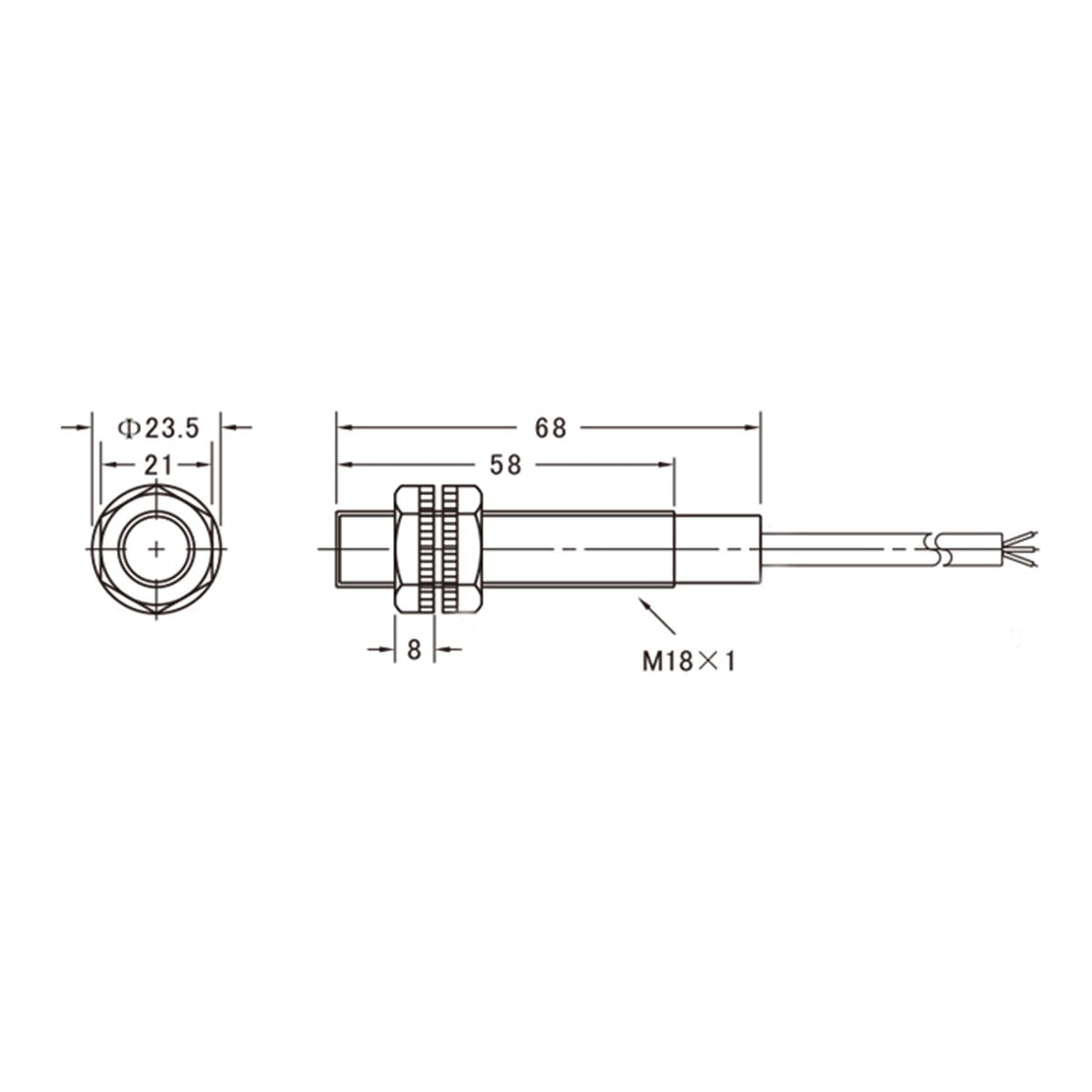

Thread diameter: M18
Model: E3F-DS30P3
Detection distance: 10-30cm

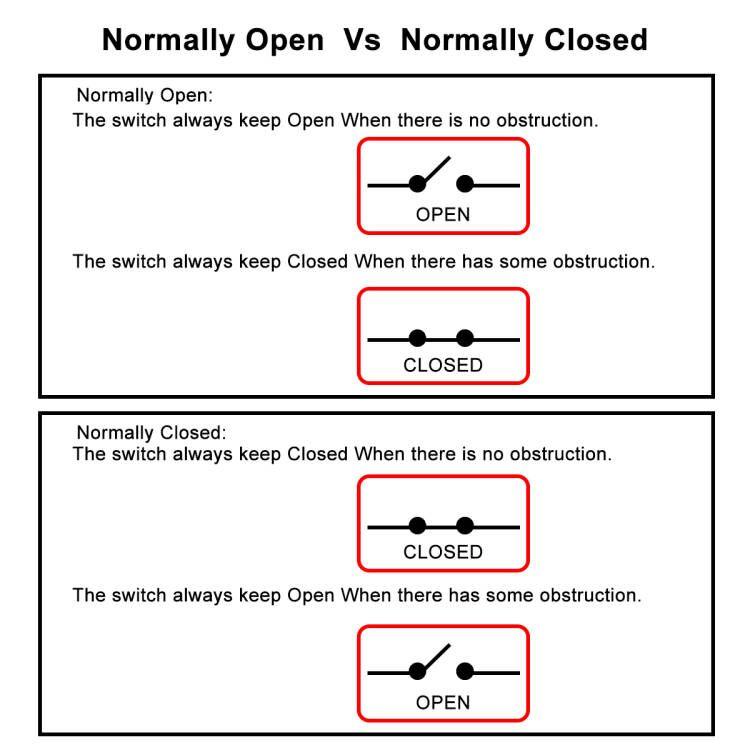

Type: PNP NO+NC
Detection object: opaque object
Detection method: Diffuse reflection type
Structure type: built-in relay
Appearance shape: cylindrical type
Working voltage: DC12-24V
Output control: 200mA
Installation method: 4 lines
