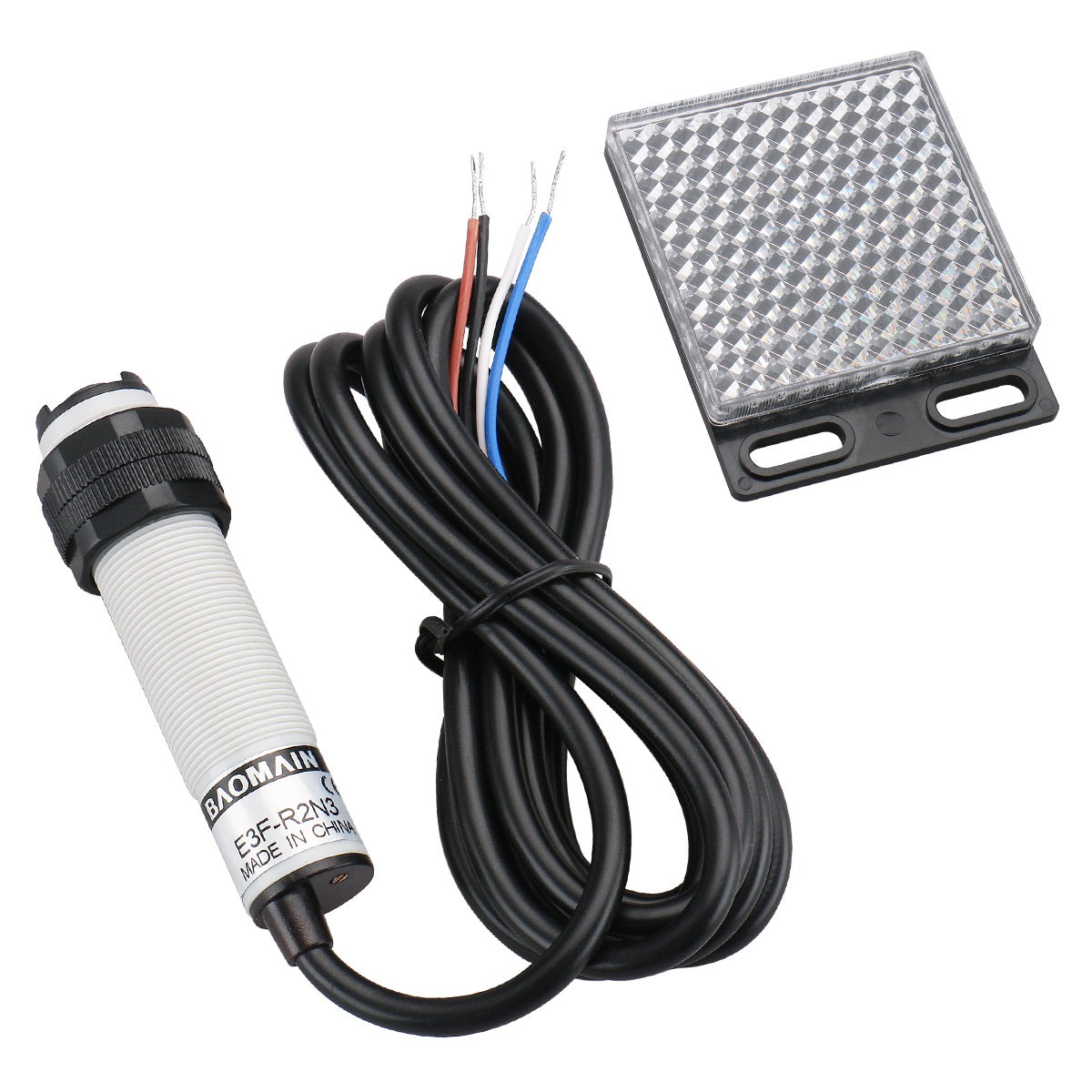

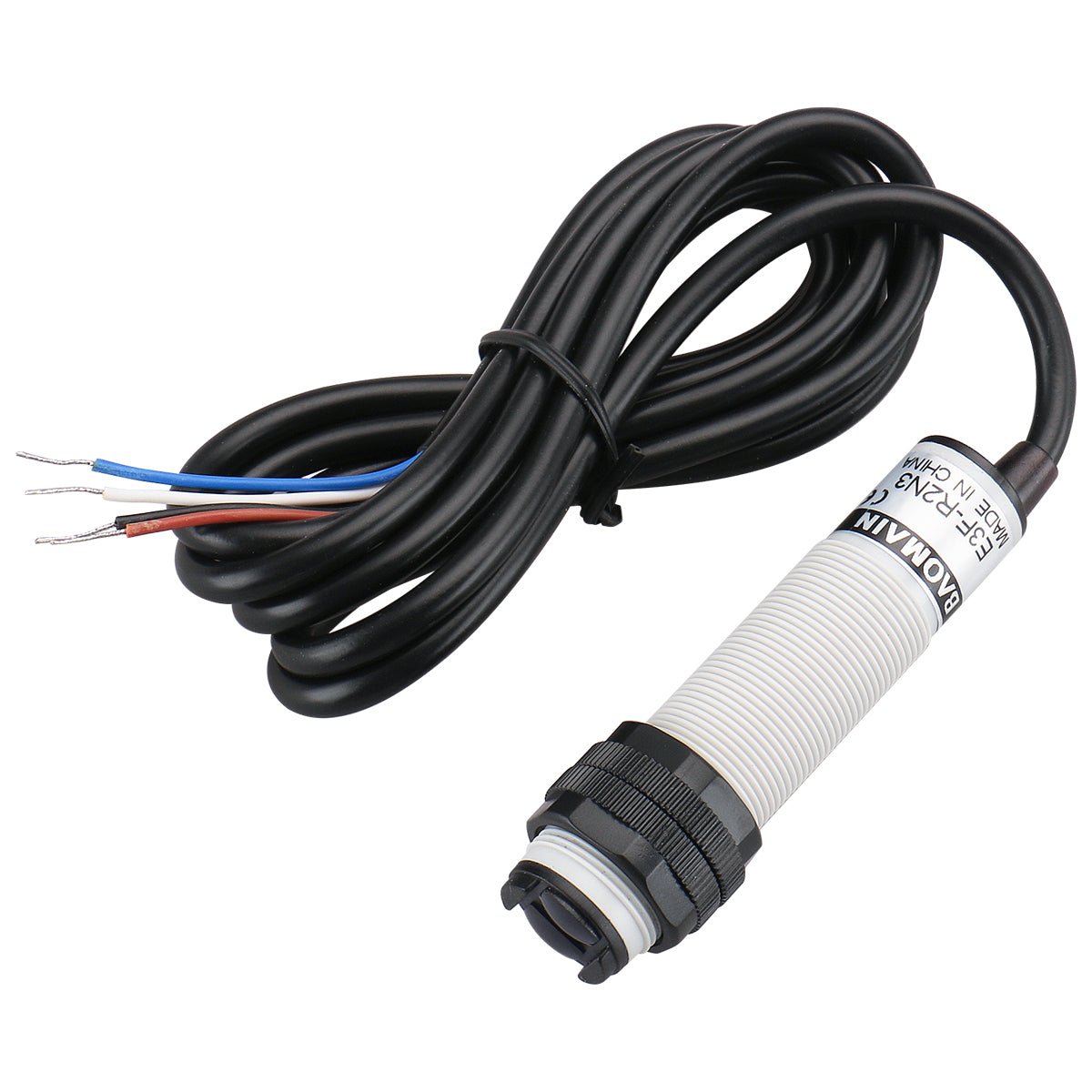

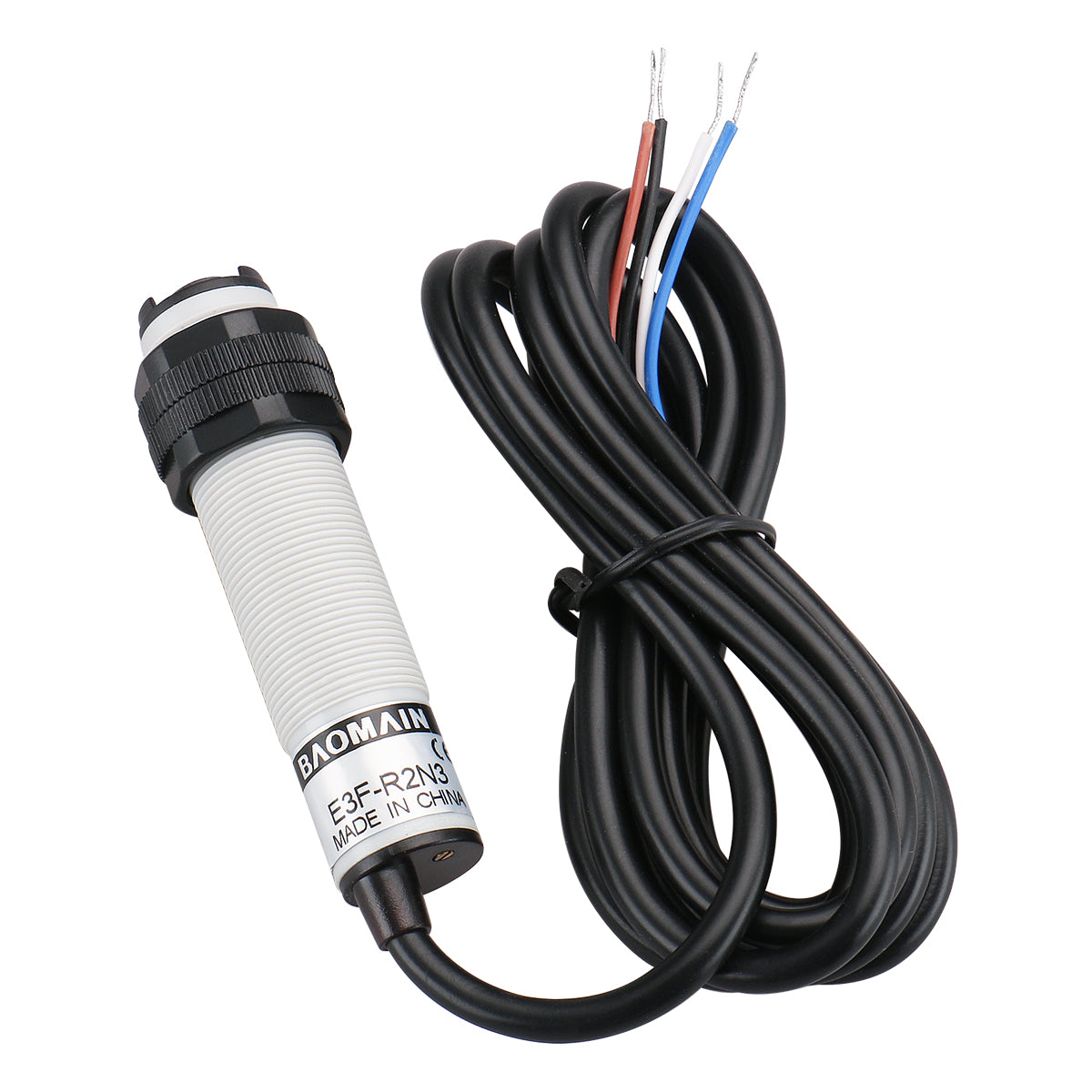

Baomain Photoelectric Sensor E3F-R2N3 Retroreflective Optical Sensor Switch DC 10-30V NPN NO+NC Sensing Distance 2m 4 Wires with Reflector Panel

  • $11.49
    Unit price per
Shipping calculated at checkout.


This photoelectric switch is controlled by infrared ray, as an proximity sensor switch, consists of a light emitter and a receiver. It can be applied in security system, manufacturing industry.

  • Product Name: Optical Sensor Switch
  • Sending Light: Infrared Rays
  • Model: E3F-R2N3
  • Working Voltage: DC 10-30V
  • Working Current: 200mA
  • Sensory Distance: 2m (+/-10%)
  • Output Type: NPN NO+NC
  • Thread Diameter: M18
  • Cable Length: 1.5m
  • External Material: Plastic

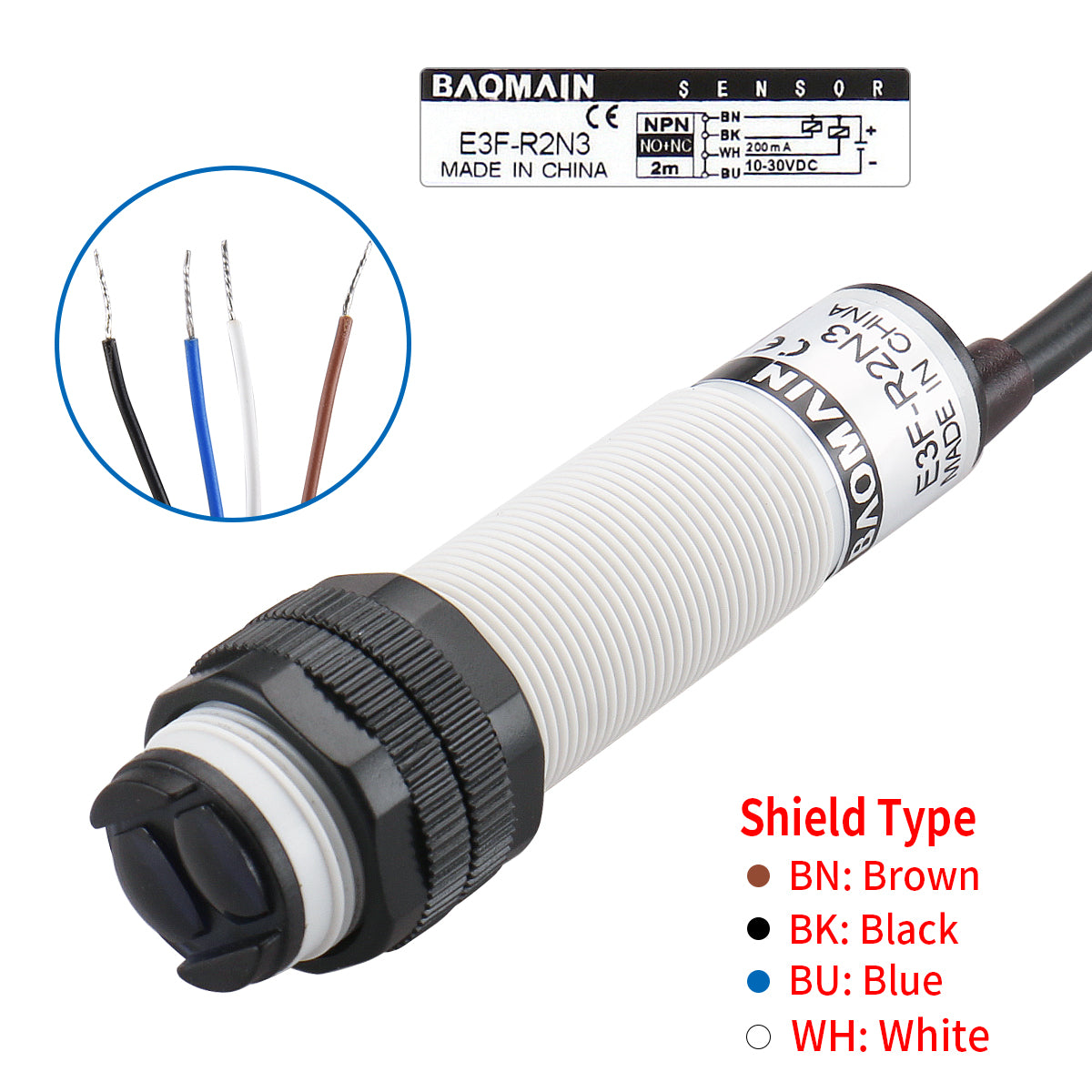

  • Wire type: 4 wires
