Baomain Rotary Lever Hand Valve HV-02 PT 1/4" Air Flow Control 3 Position 4 Way Controls Air Flow On or Off

Baomain Rotary Lever Hand Valve HV-02 PT 1/4" Air Flow Control 3 Position 4 Way Controls Air Flow On or Off

  • $15.49
    Unit price per
Shipping calculated at checkout.


  • Product Name: 4 Way 3 Position Hand Pull Valve HV-02

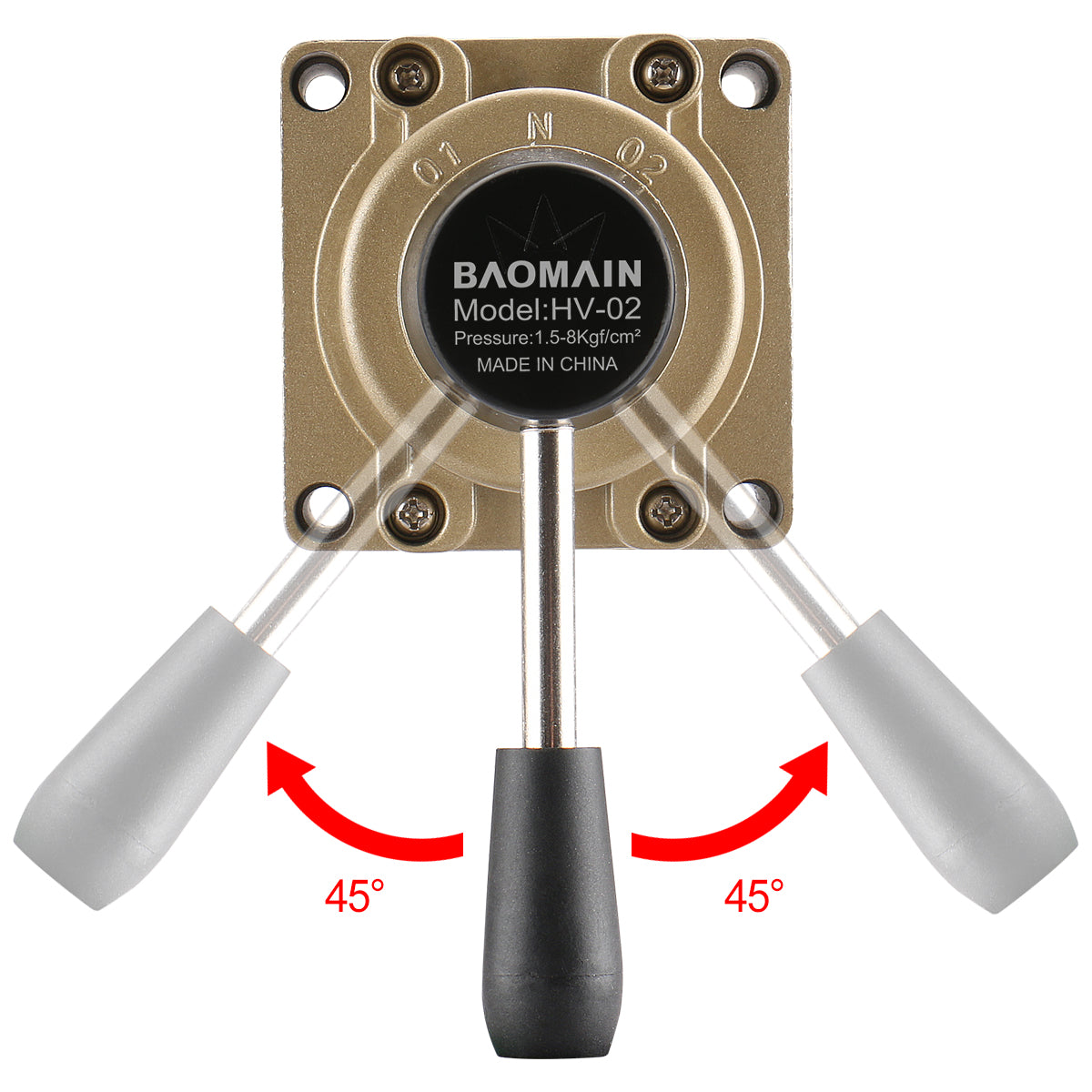

  • Type: Manual, 3 Position 4 Way

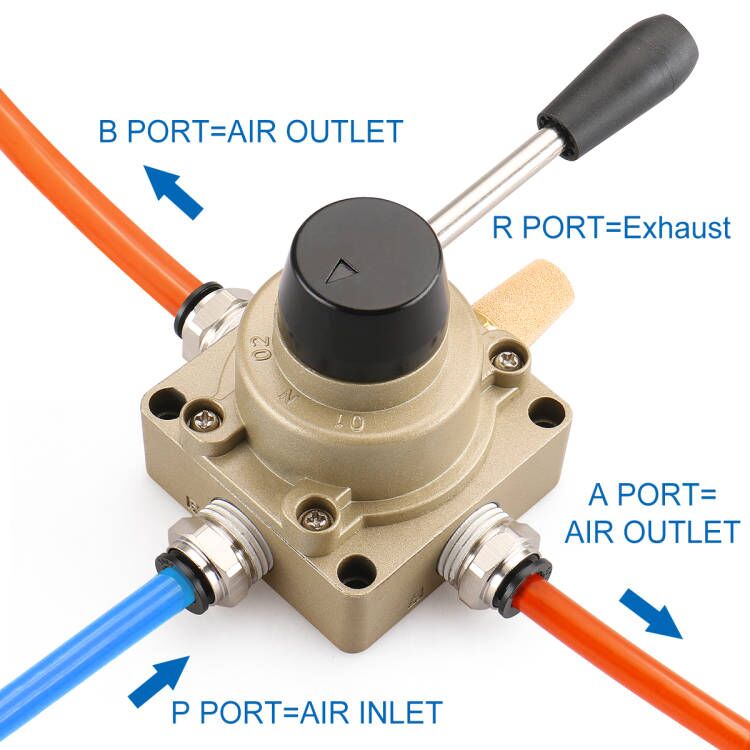

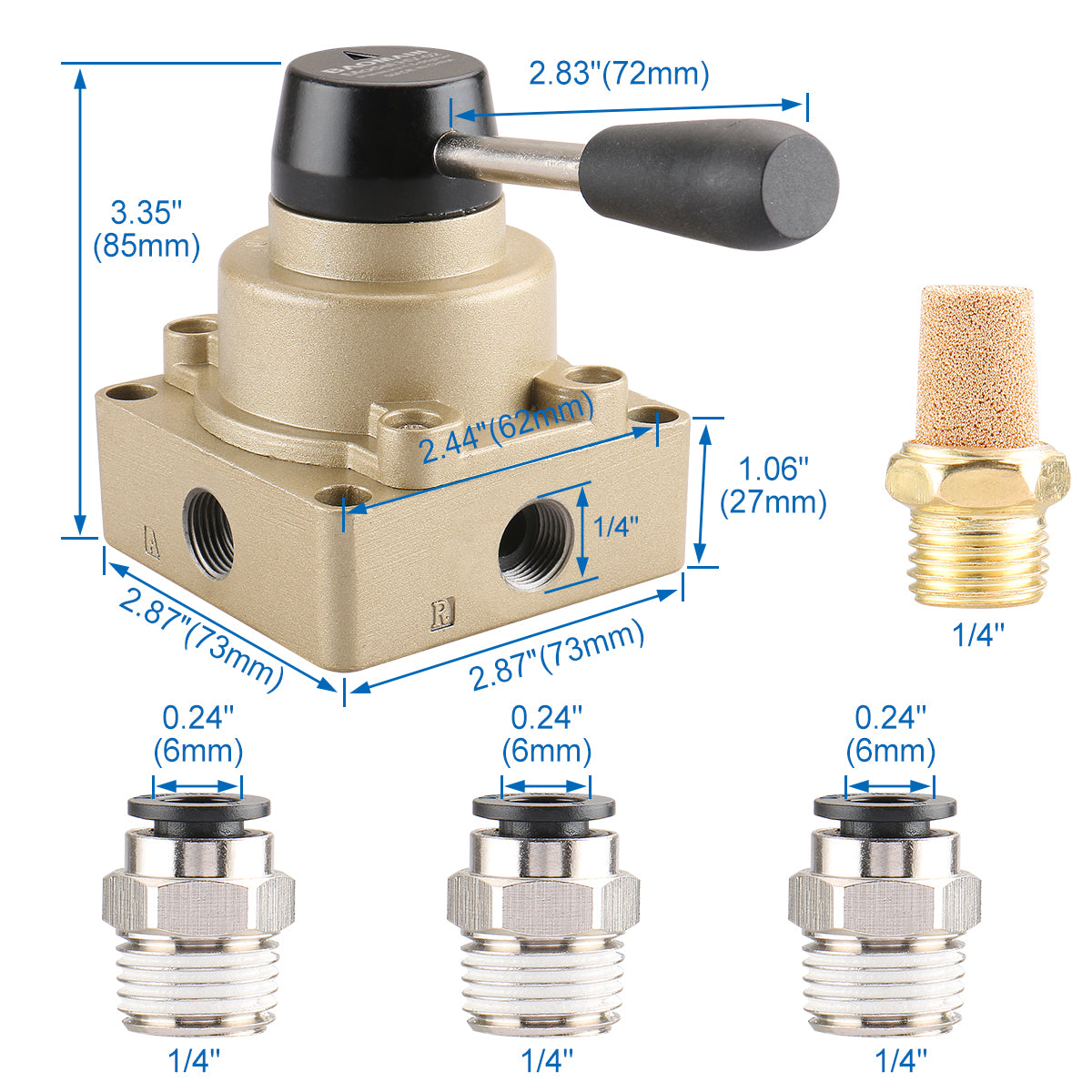

  • Size: Air Inlet (P)=PT 1/4",Air Outlet(A B)=T 1/4",Air Exhaust(R S)=T 1/4"
  • Working Medium: Air
  • Pressure range: 25-116Psi
  • Working temperature range: 32~140℉
  • Position and Port Number: 4 Port 3 Position
  • Product Features: Controls Air Flow On or Off
  • Package Content: HV-02 + 3 × PC6-N2 + 1 × Pneumatic Muffler SL-02
