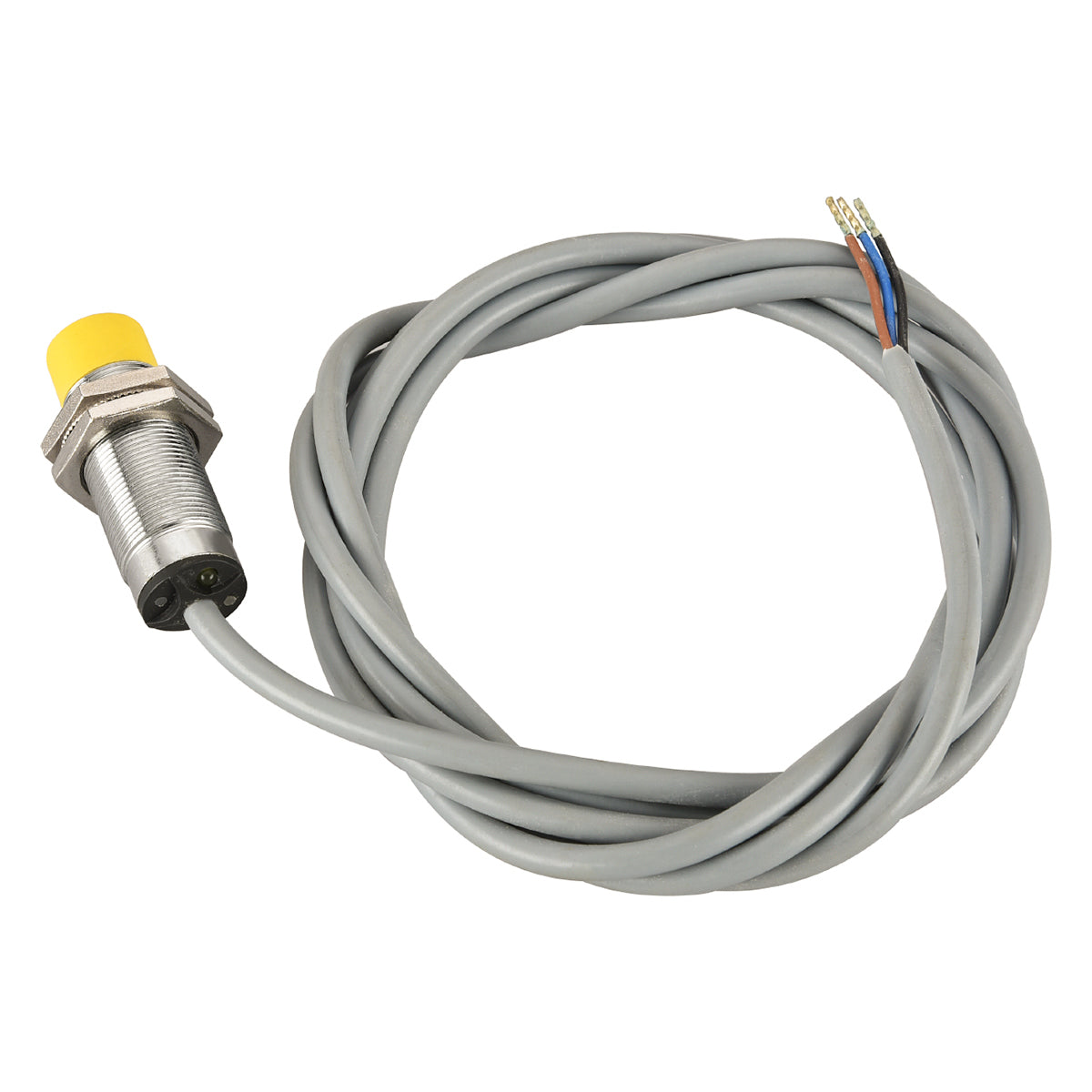

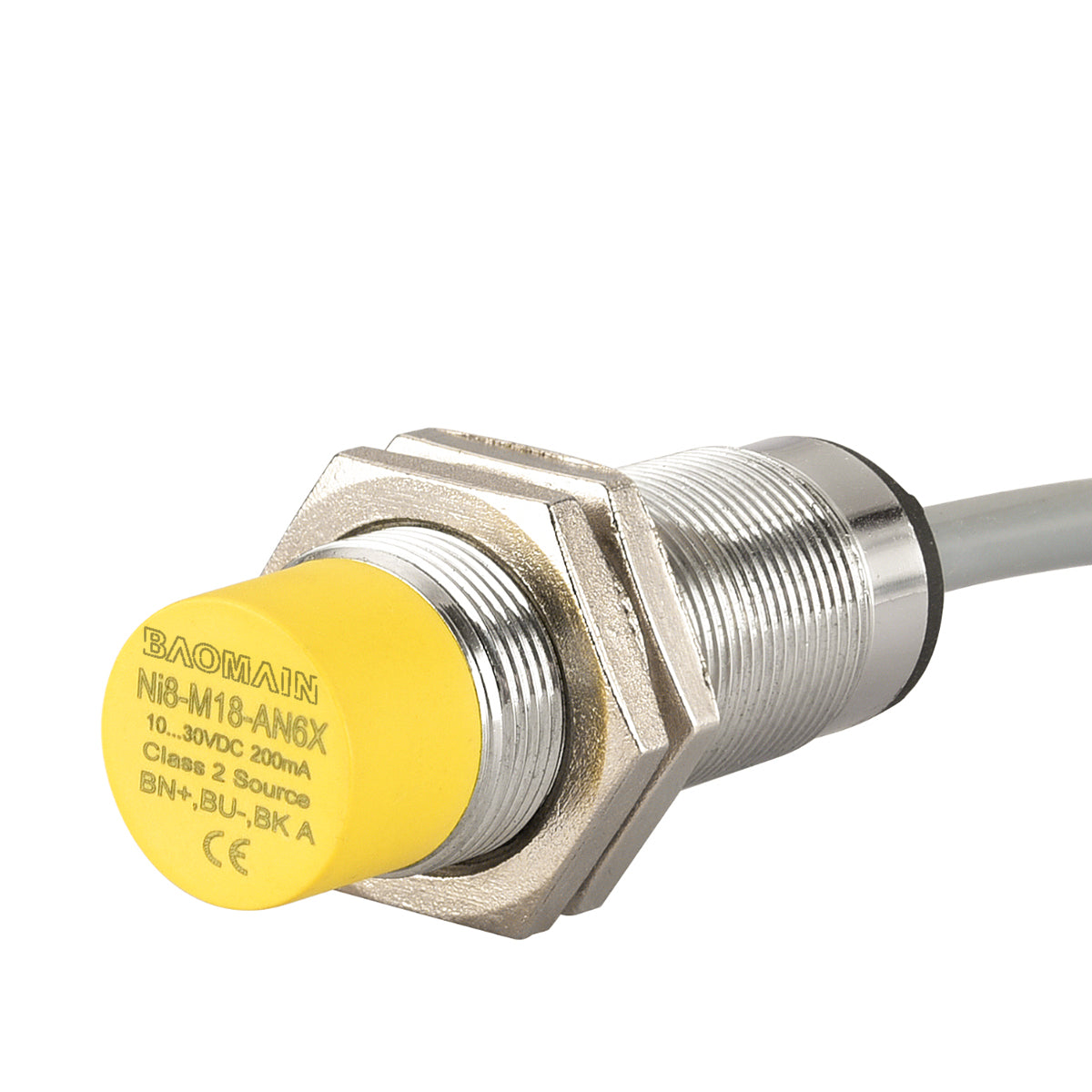

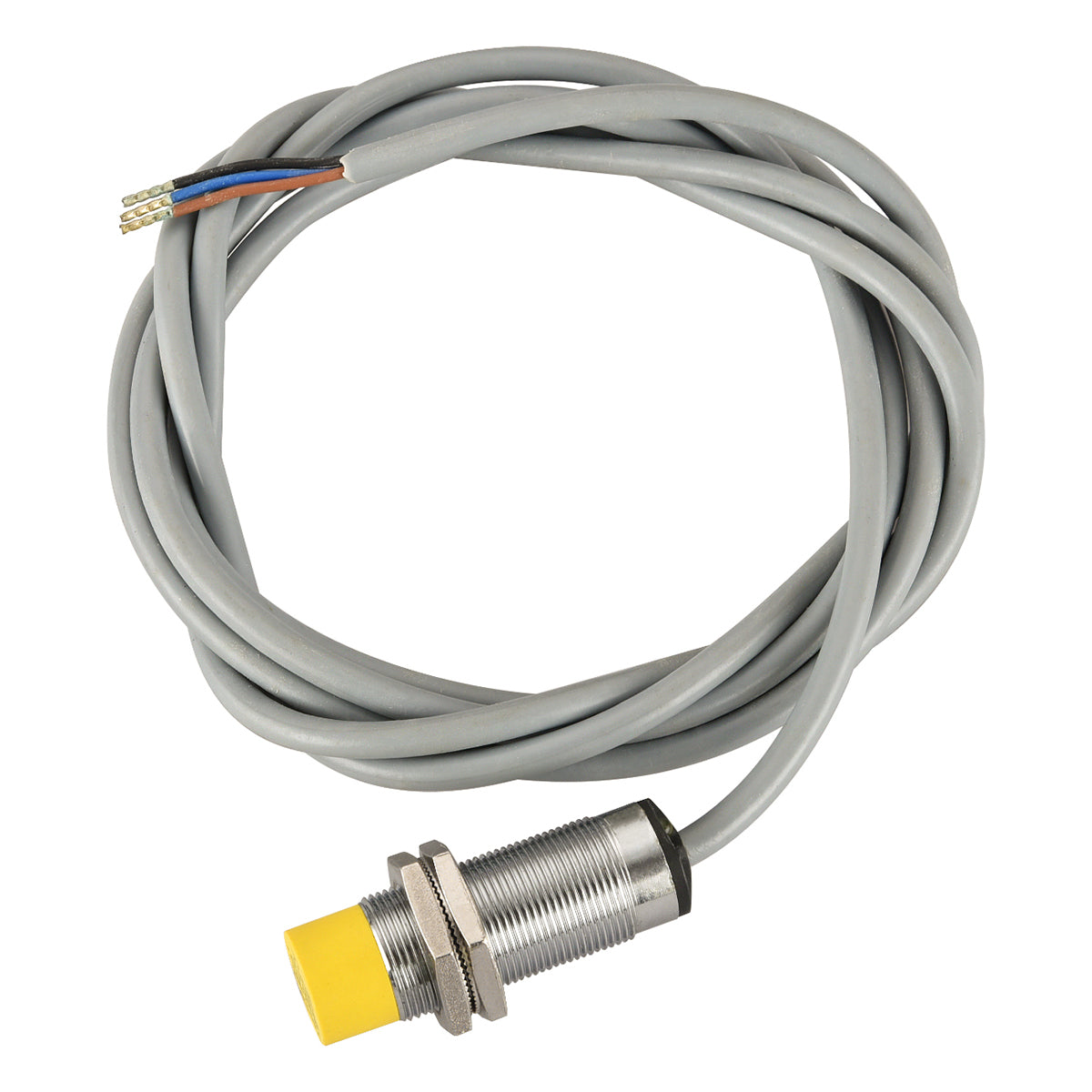

Baomain 8mm Non-Screen shield Inductive Sensor Switch Ni8-M18-AN6X DC 10-30V 200mA 3 Wire NPN NO(Normally Open) CE
- Product type: Inductive Sensor Switch
- Installation method: non-embedded
- Output mode: NPN
- Switching function: Normally Open(NO)
- Detection distance(mm): 8mm
- Assured operating distance(mm): 0-7mm
- Output polarity: DC

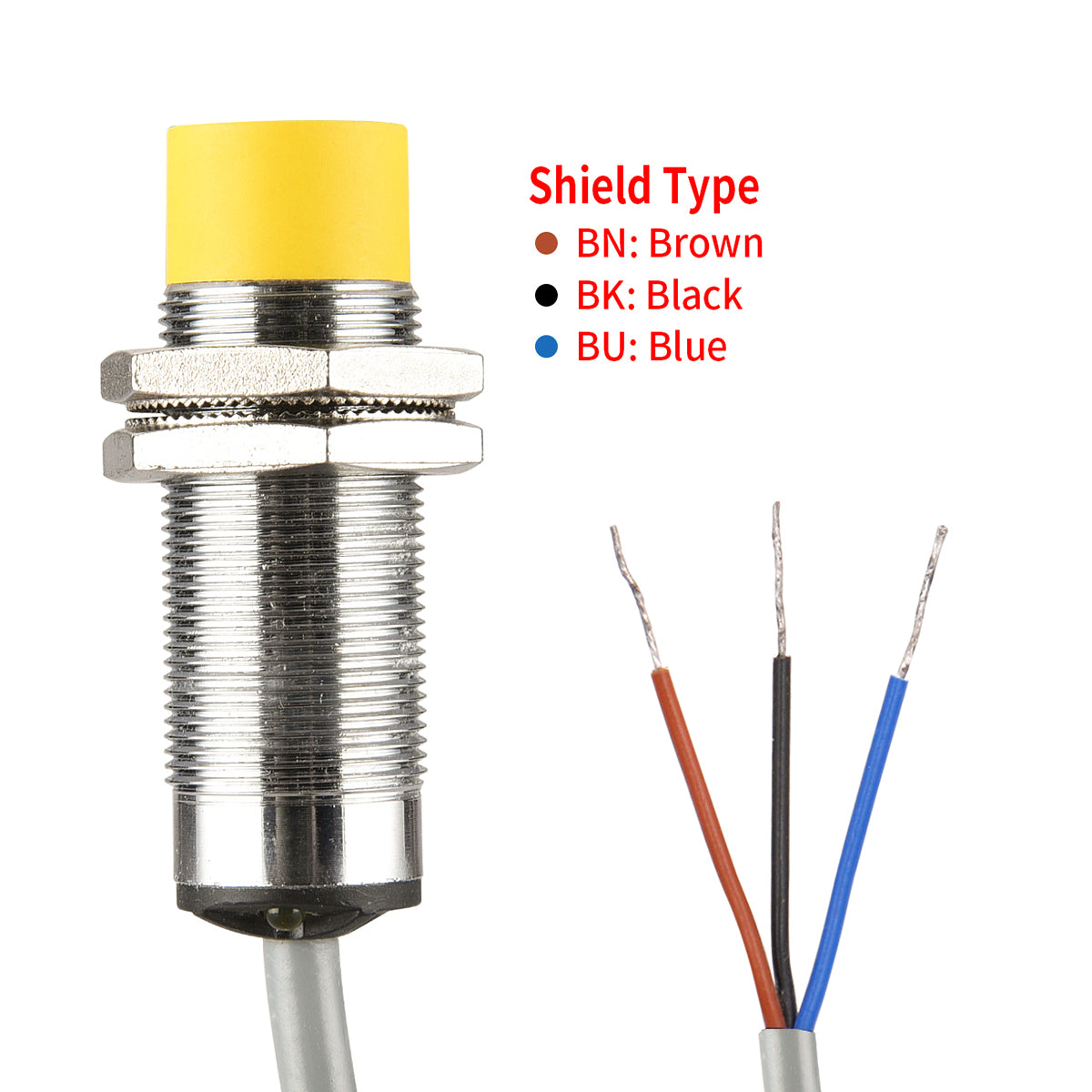

- Output type: 3-wire
- Operating voltage: 10…30 V
- Switching frequency: 0…500 Hz
- Hysteresis: typ. 5%
- Operating current: 0…200 mA
- Off-state current: 0…0.5 mA typ. 0.1µA at 25℃
- No-load supply current: ≤15 mA

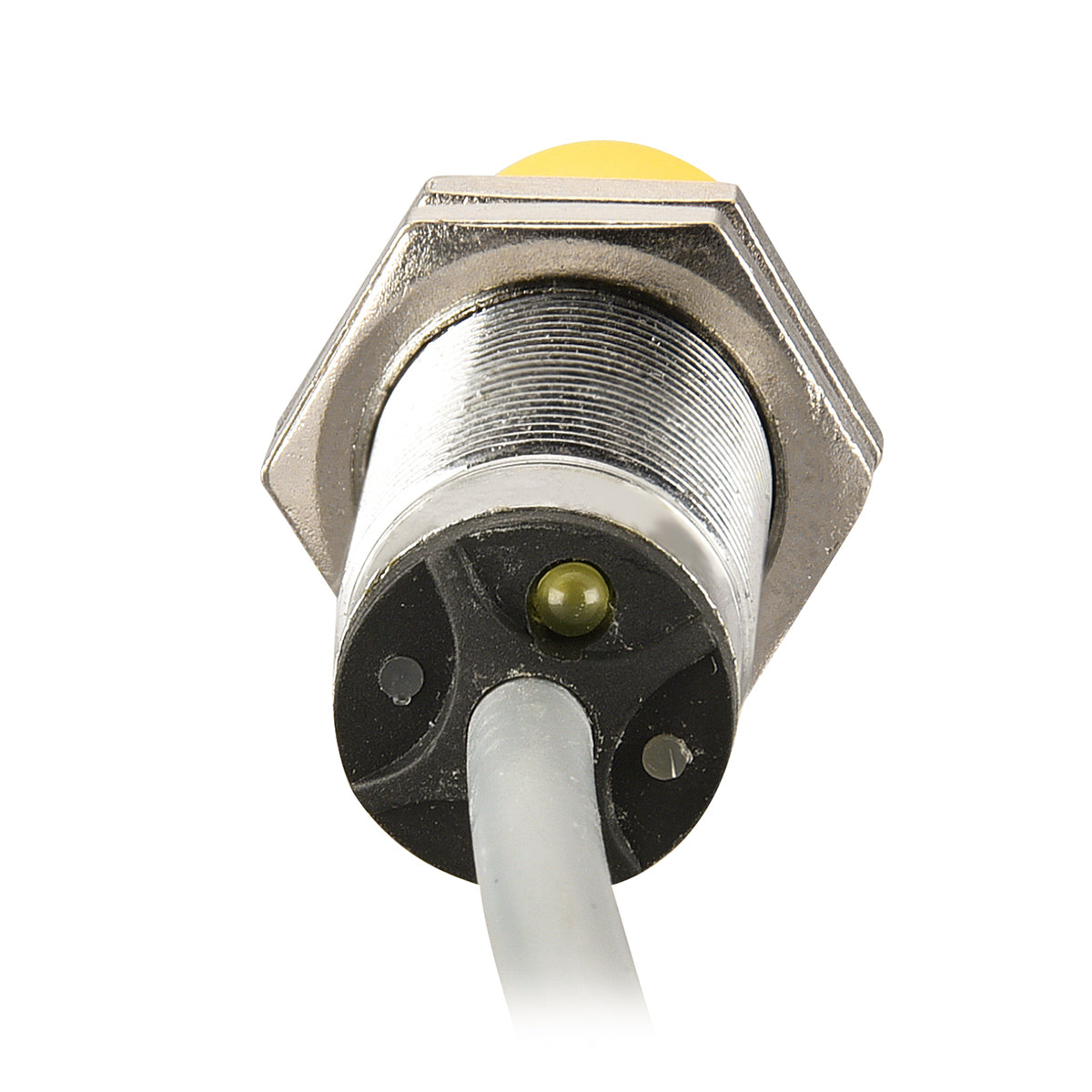

- Switching state indicator: LED, yellow
- Ambient temperature: -25 … 70℃(-13…158℉)
- Connection type: cable PVC, 2m
- Housing material: brass, nickel-plated
- Sensing face: PBT
- Protection level: IP67
