Pneumatic Air Cylinder with magnet SC 100-200-S, Bore: 4"-100mm, Stroke: 8''- 200mm, PT1/2 Port Size, Screwed Piston Rod Dual Action

100 In Stock

Regular price: $107.39
Sale price: $107.39
Regular price

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

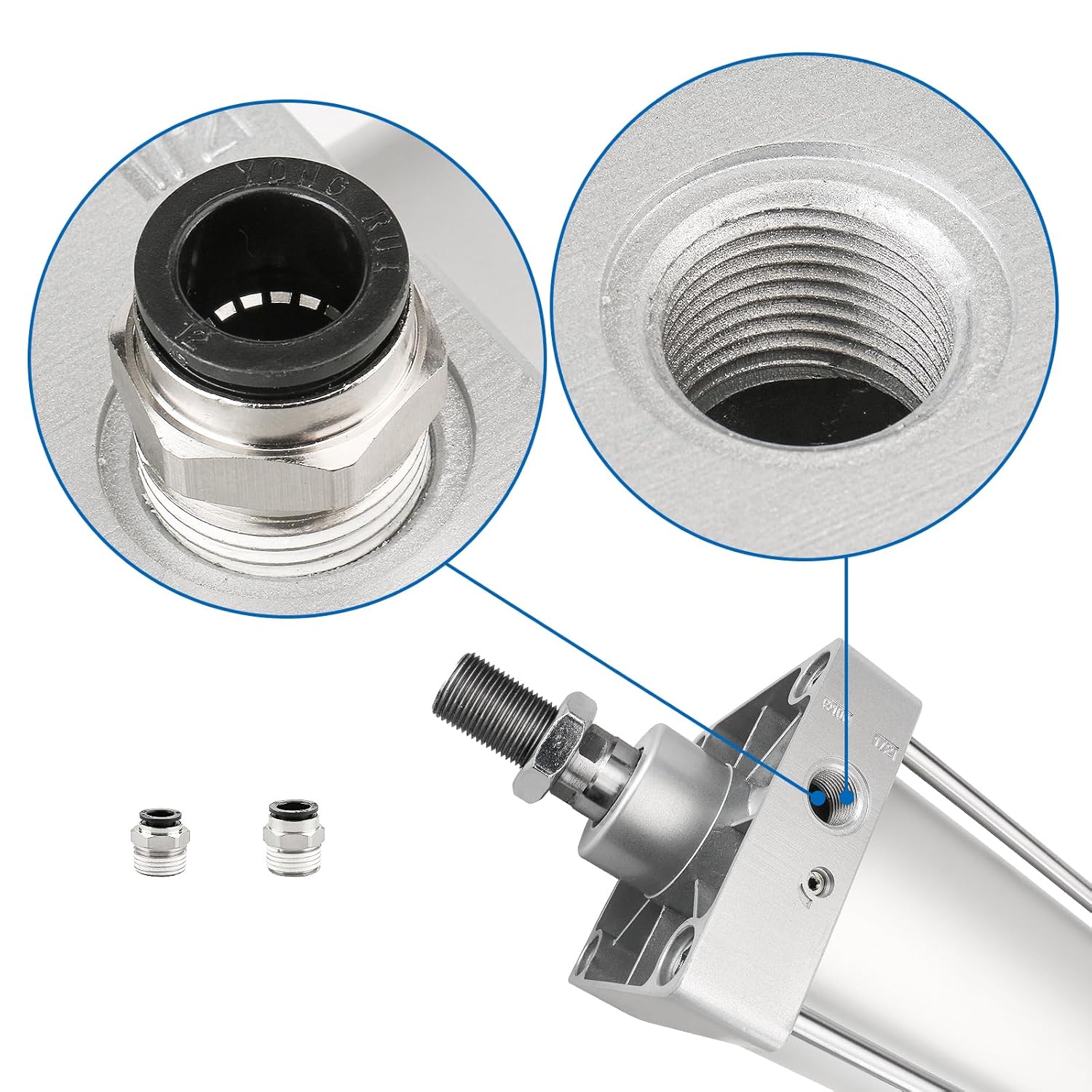

Port size: PT1/2

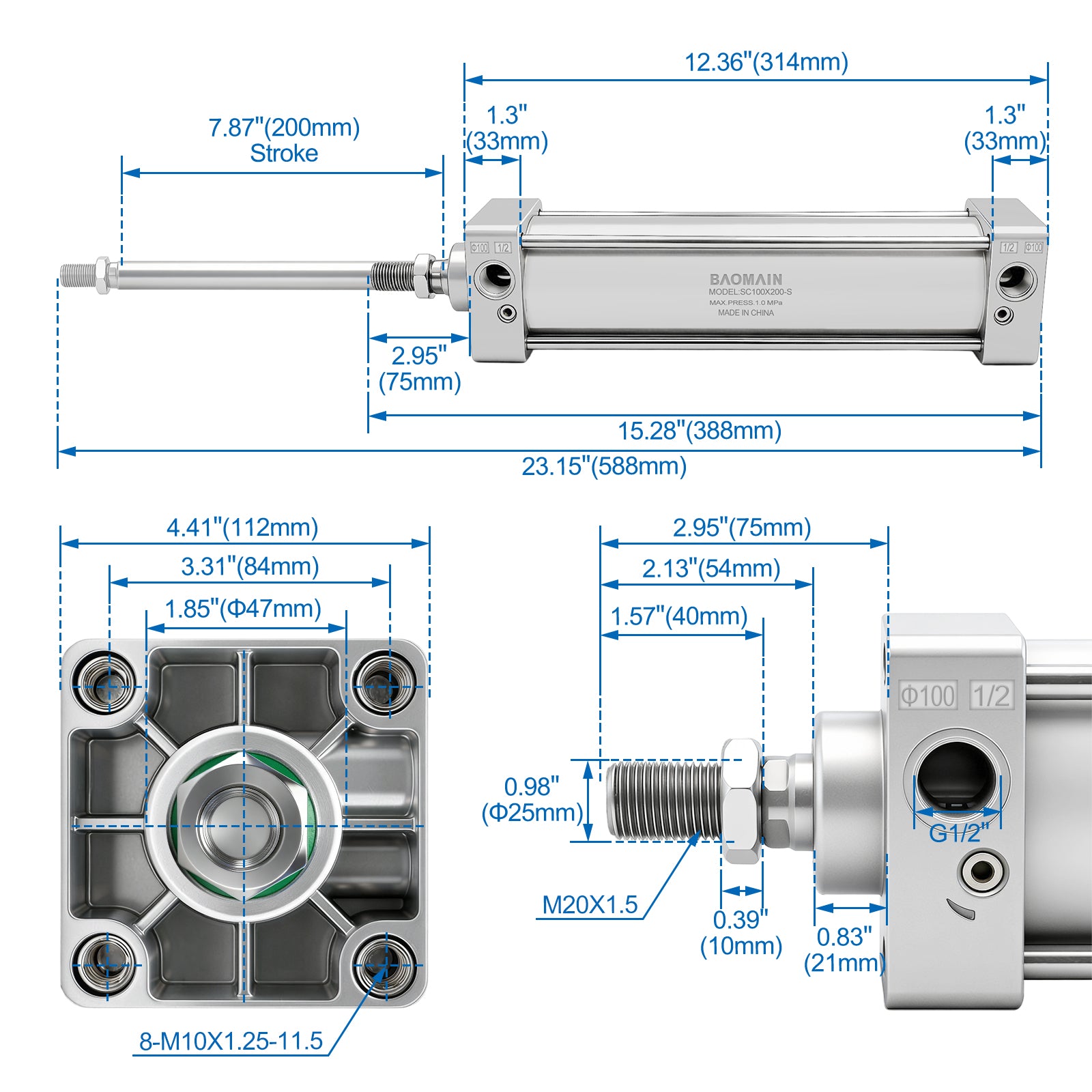

Bore: 4"-100mm, Stroke: 8''- 200mm
Action Type: Double Acting
Rod Type : Single Rod

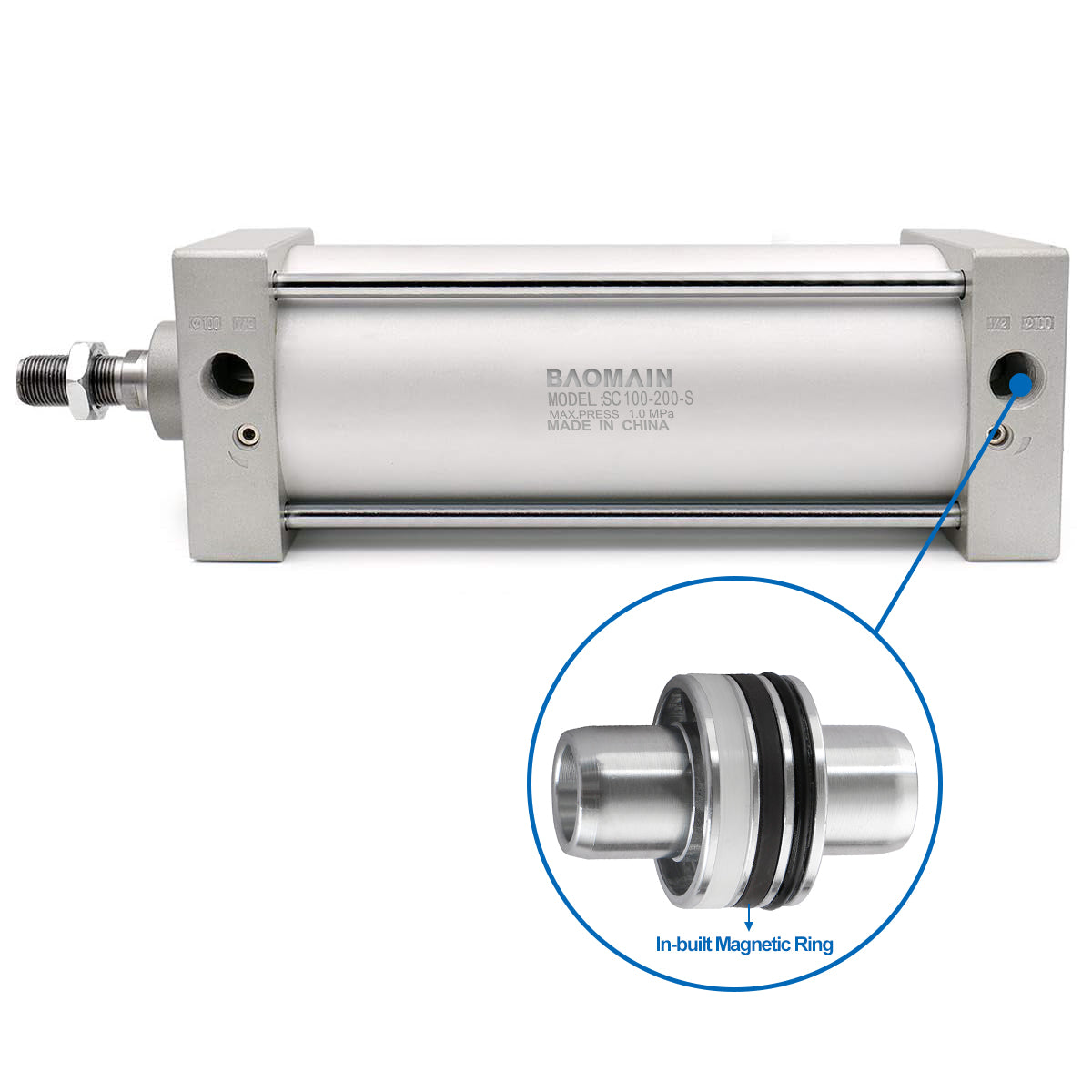

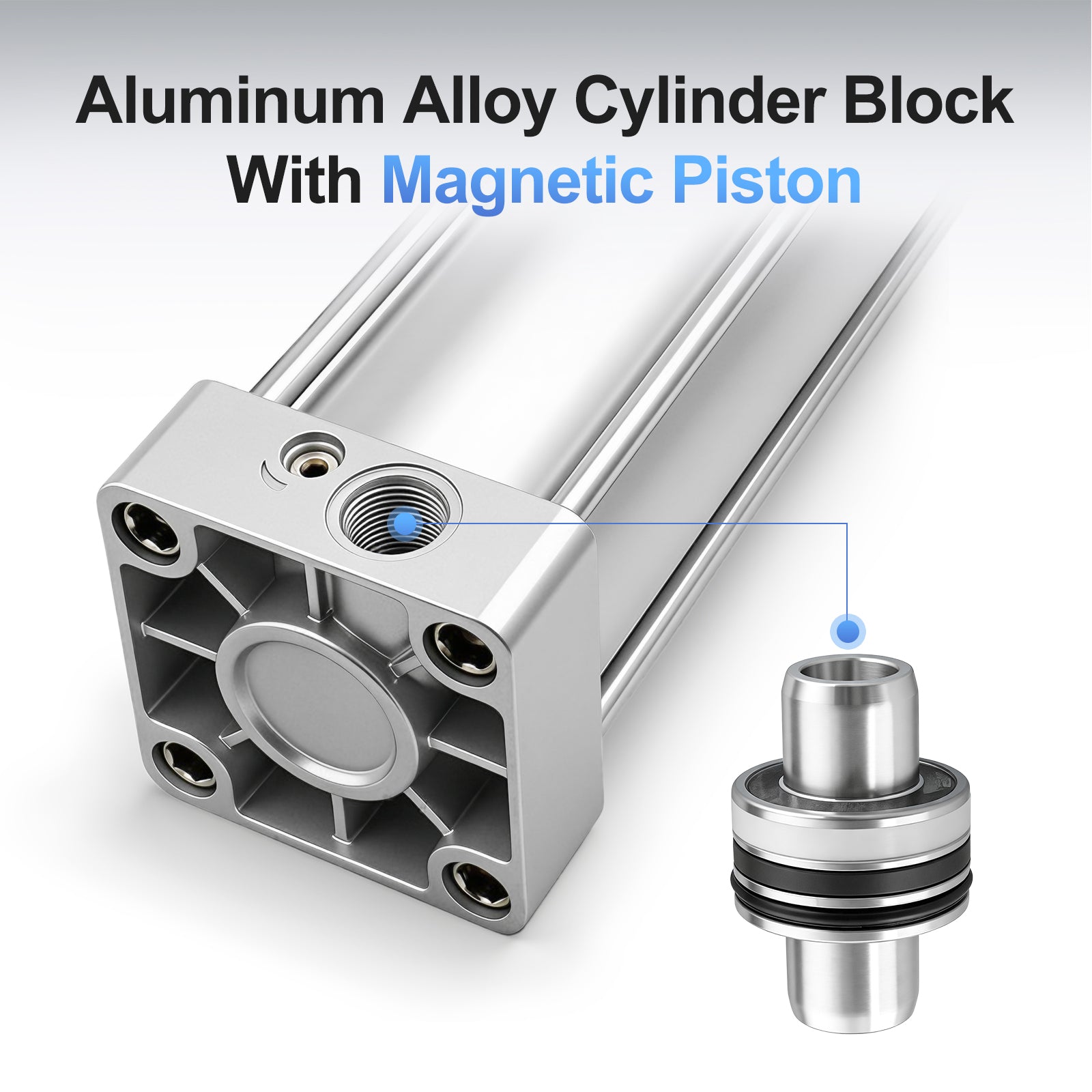

Each Cylinder Insert magnet
Max. theoretical force: 700Kgf
Max Pressure: 1.0 MPa

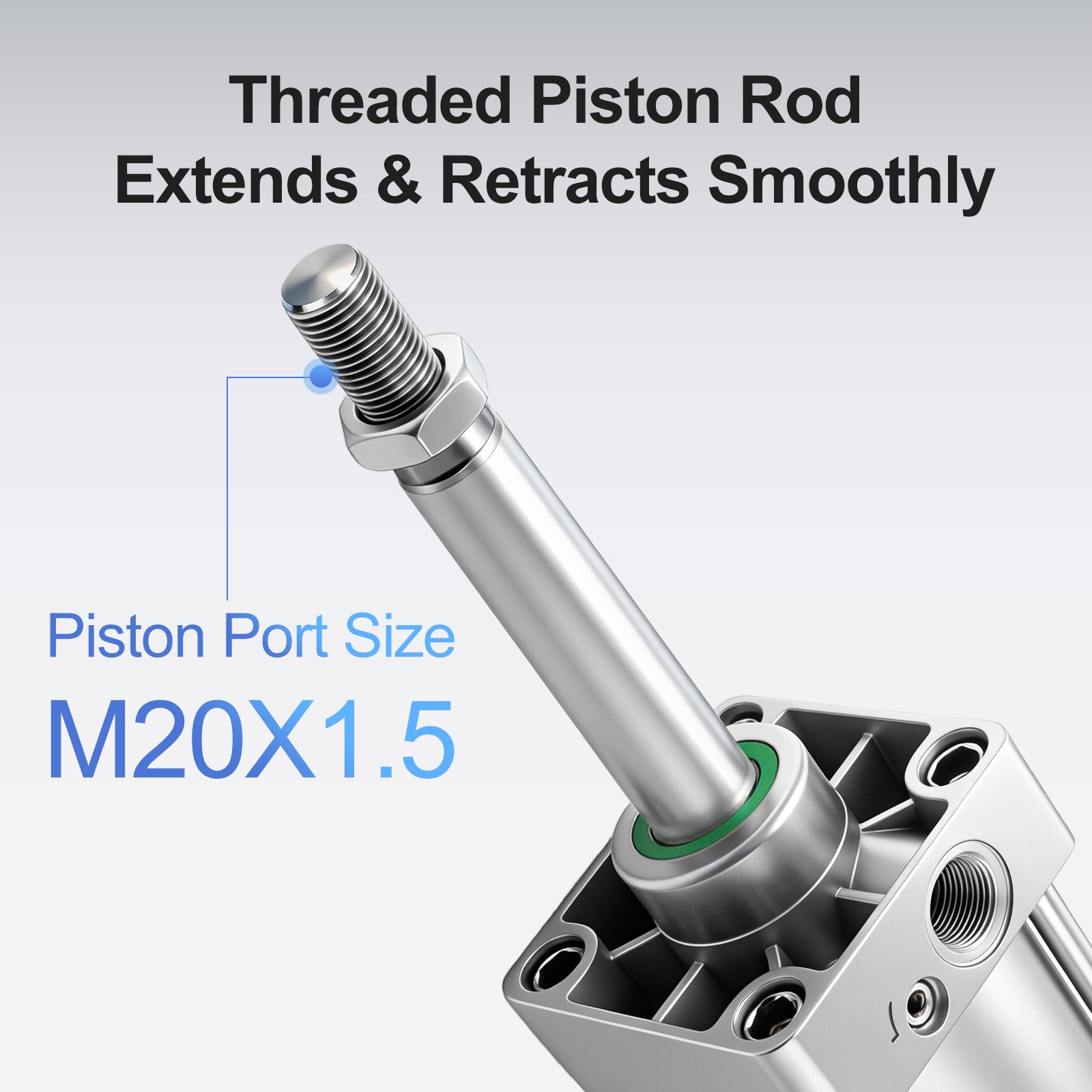

Piston port size: M20X1.5
Package Content: 1 X Air Cylinder
Weight: 4.3KGS/PC

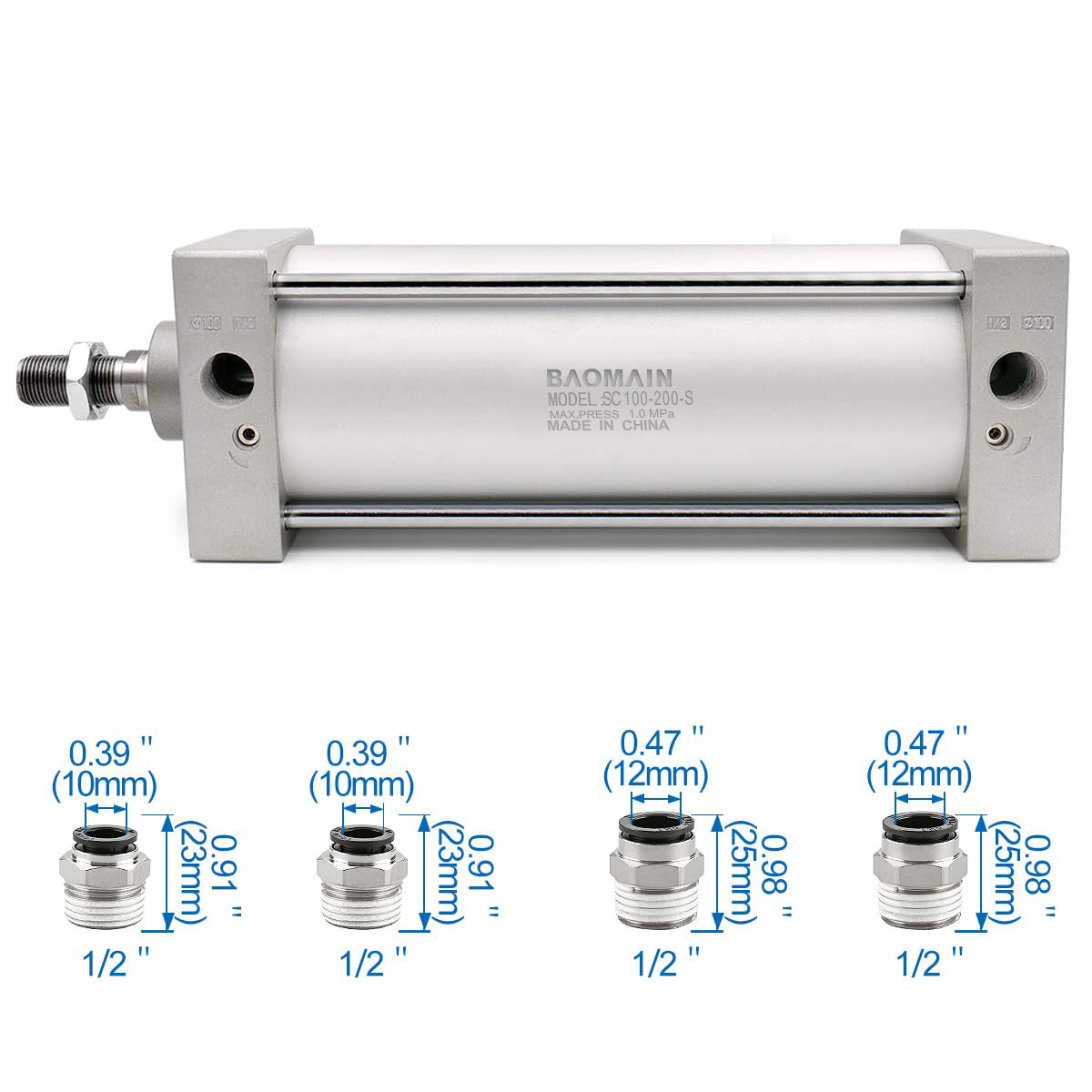

With Fittings (PC10-04 2PCS+PC12-04 2PCS)
Compatible models for Magnetic Sensor Switch is Model#CS1-U or CS1-F.
