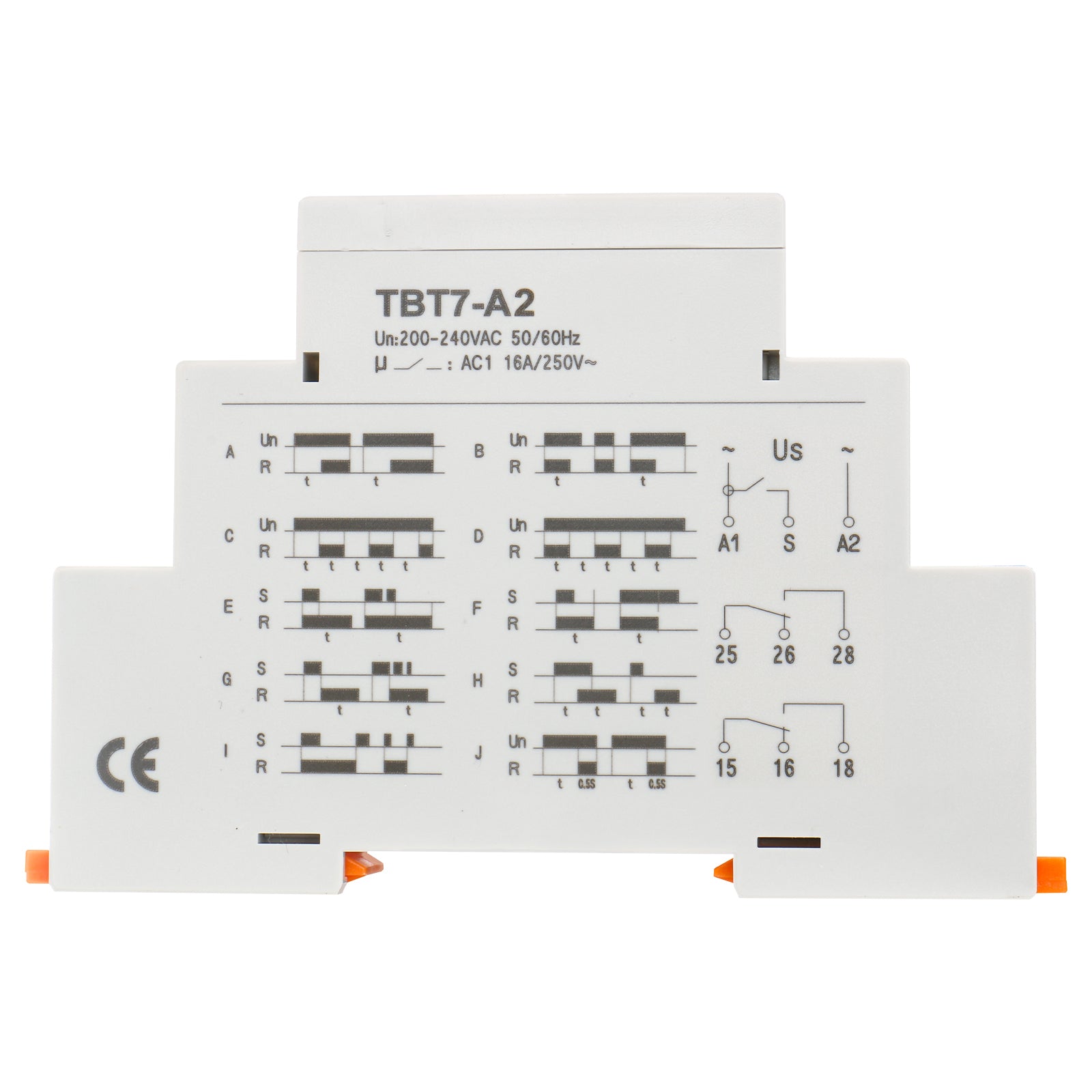

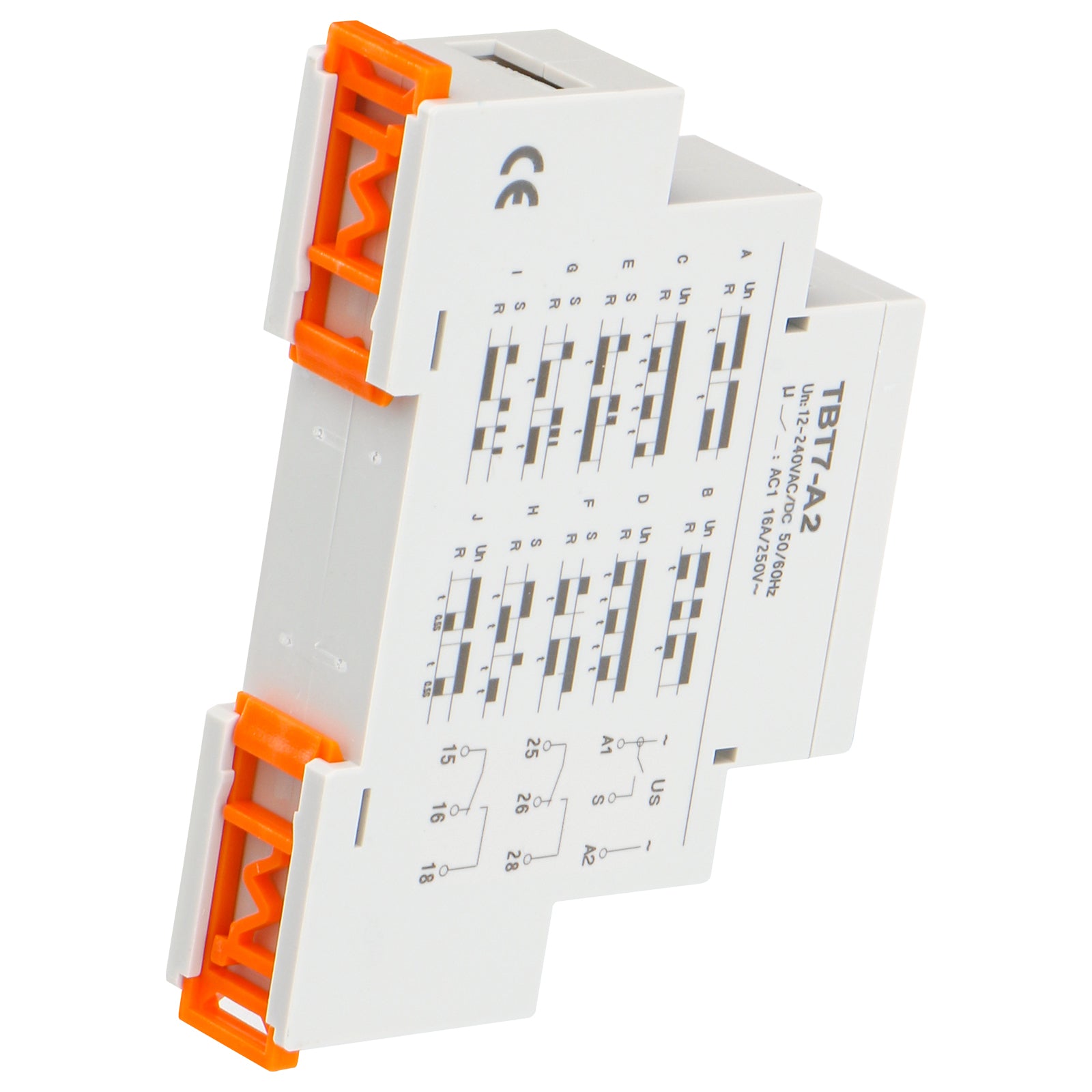

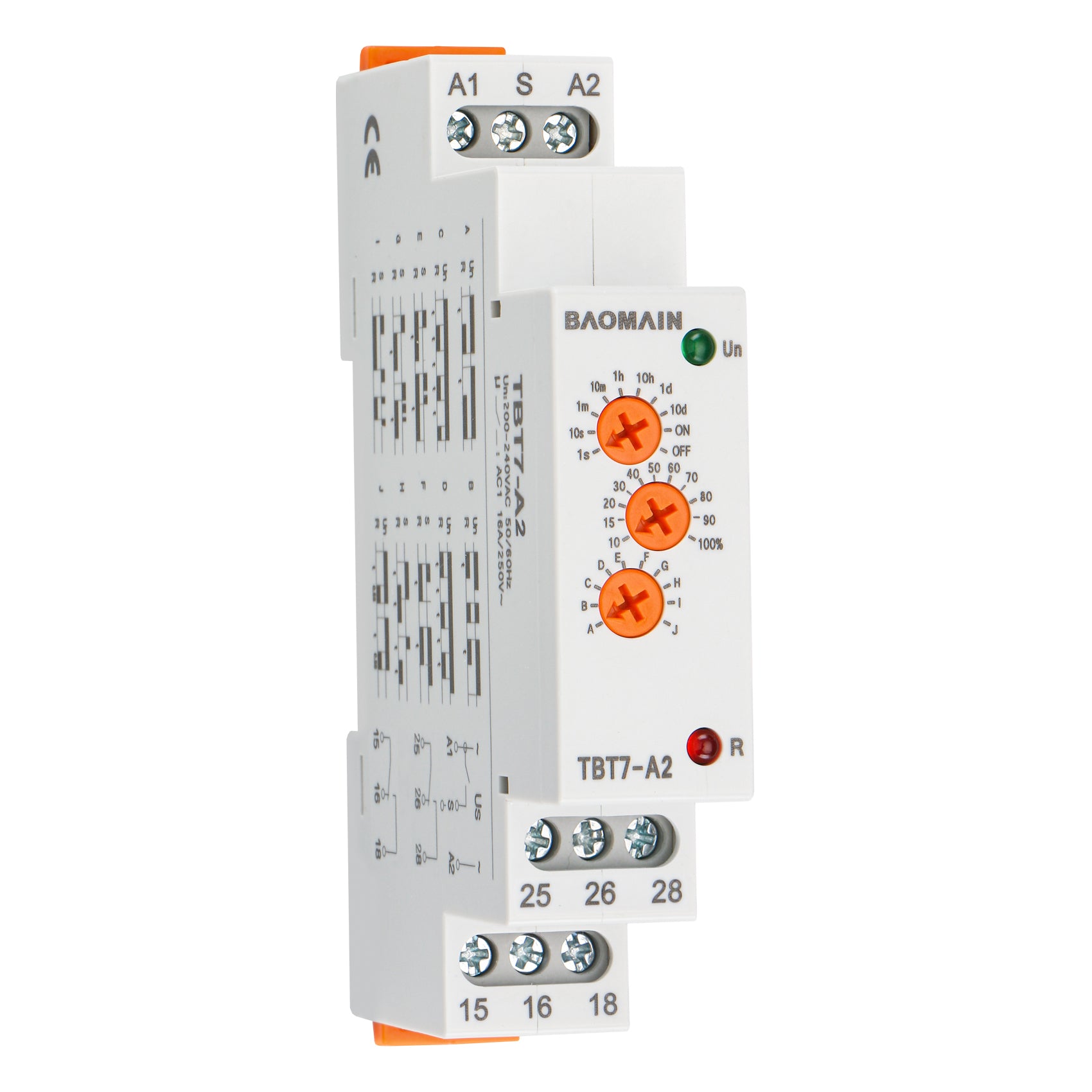

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A2
The multifunction time relay can be used for electrical appliances,control of lights,heating,motors,pumps and fans

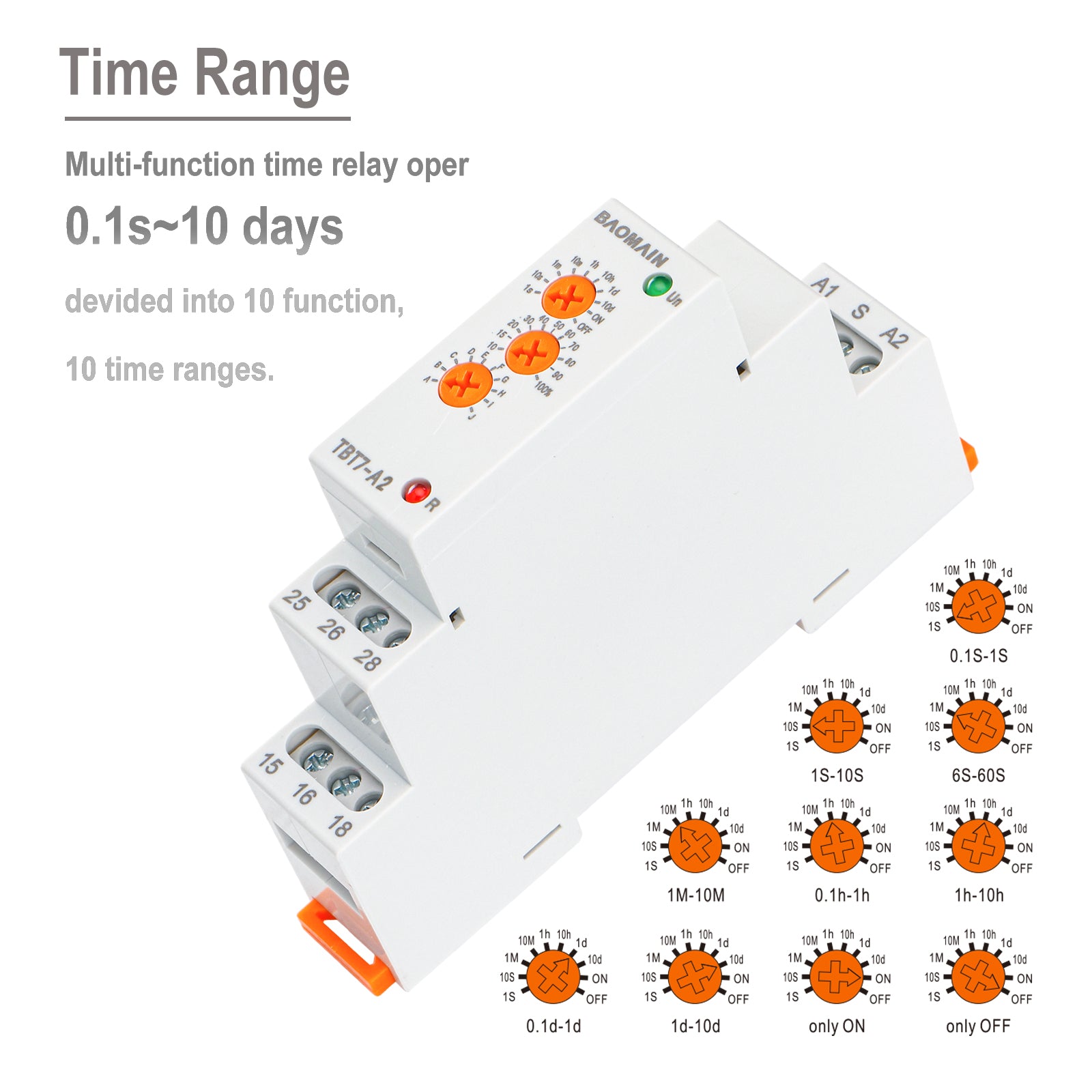

- Time Range: 0.1s-10days,ON,OFF
- Function: A,B,C,D,E,F,G,H,I,J (10 functions,10 time ranges)
- Voltage Range: AC/DC12V-240V/200-240VAC,50-60Hz
- Power Input：AC max.6VA/1.3W,1.9W
- Bueden: AC0.09-3VA/DC0.05-1.7W

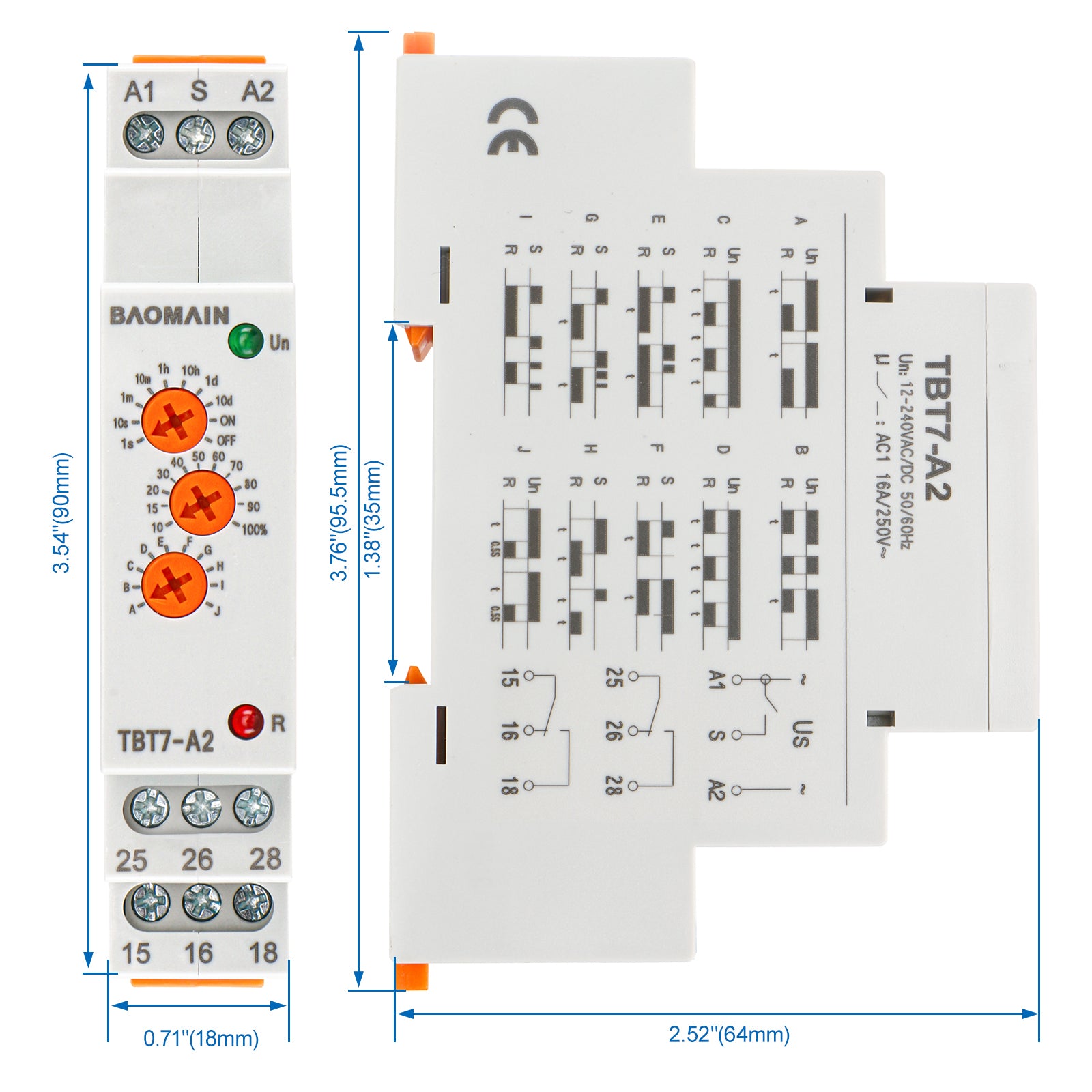

- Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH)

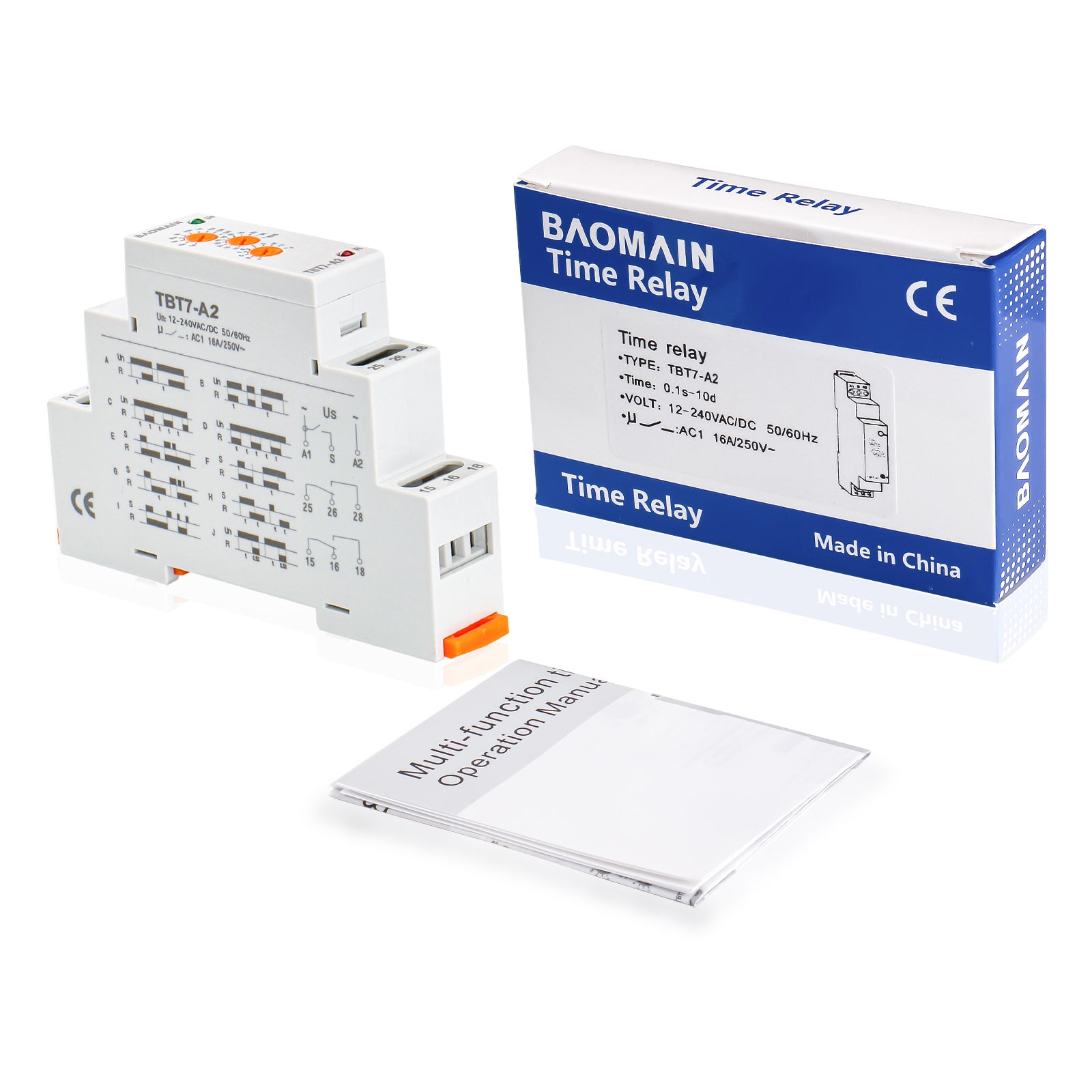

- Package Includes: 1 x Time Relay, Instruction
TECHNICAL PARAMETERS
- Supply voltage tolerance: -15%; +10%
- Supply Indication: Green Led
- Time setting: Potentionmeter
- Time deviation: 10%-Mechanical setting
- Repeat accuracy: <0.2%-Set valve stability
- Temperature coefficient: 0.05%/°C,at=20°C(0.05%°F=at 68°F)
- Output: SPDT; Current Rating: 16a (AC1)
- Switching voltage: 250VAC/24VDC
- Min. breaking capacity DC: 500mW
- Output Indication: Red Led
- Mechanical Life: 1x10,000,000 cycles
- Electrical Life(AC1): 100,000 cycles
- Reset time: max.200ms
- Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
- Storage Temperature: -35°C ~ 75°C / -22°F ~ 167°F
- Protection Degree: IP20
- Overvoltage cathegory: III
- Pollution degree：2
- Installation: DIN rail mounting or Screw mounting
- Max.cable (size): Solid wire max.1x2.5 or 2x1.5/with sleeve max. 1x2.5(AWG12)

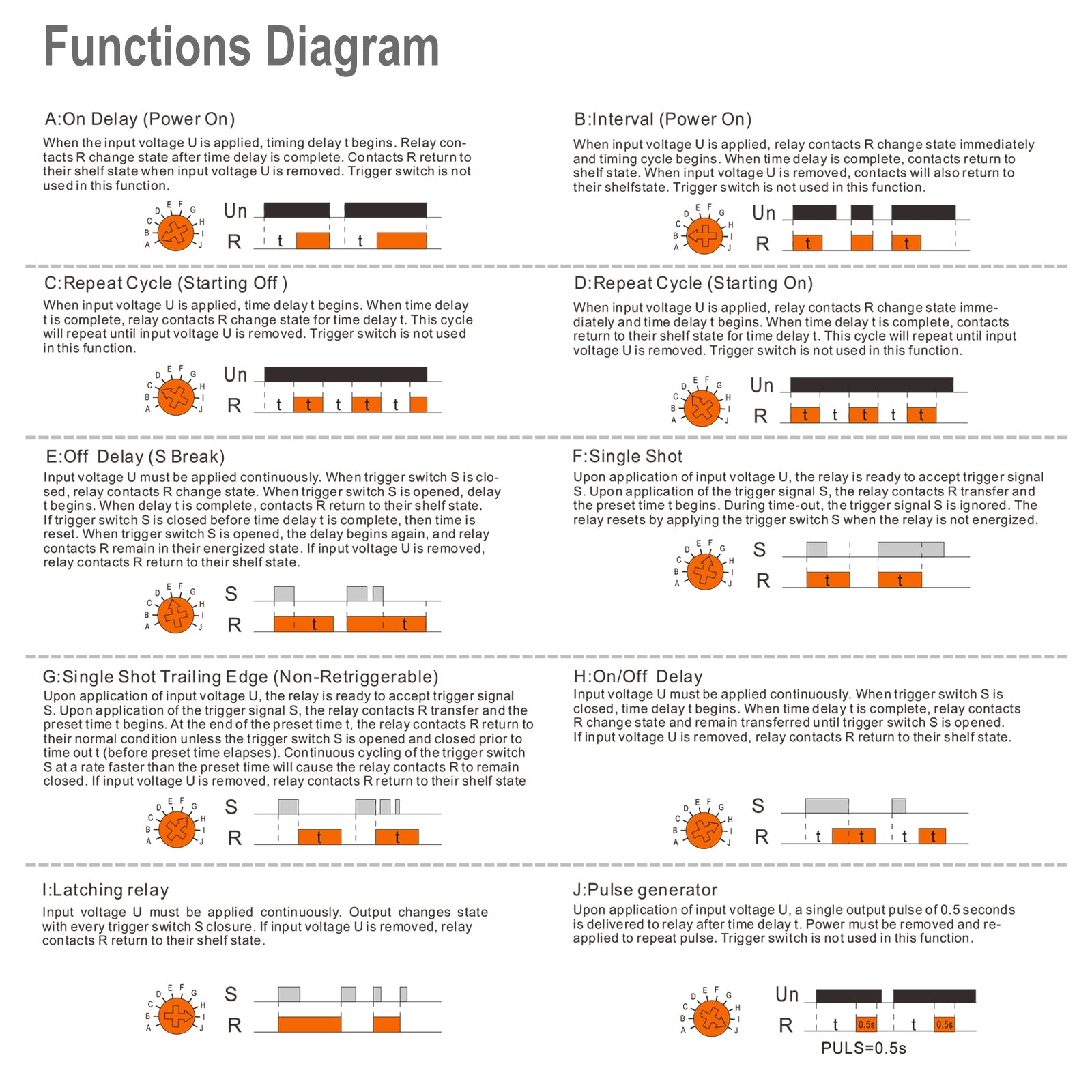

- 10 Functions: ⑤ time functions controlled by supply voltage, ④ time functions controlled by control inport,① function of latching relay
