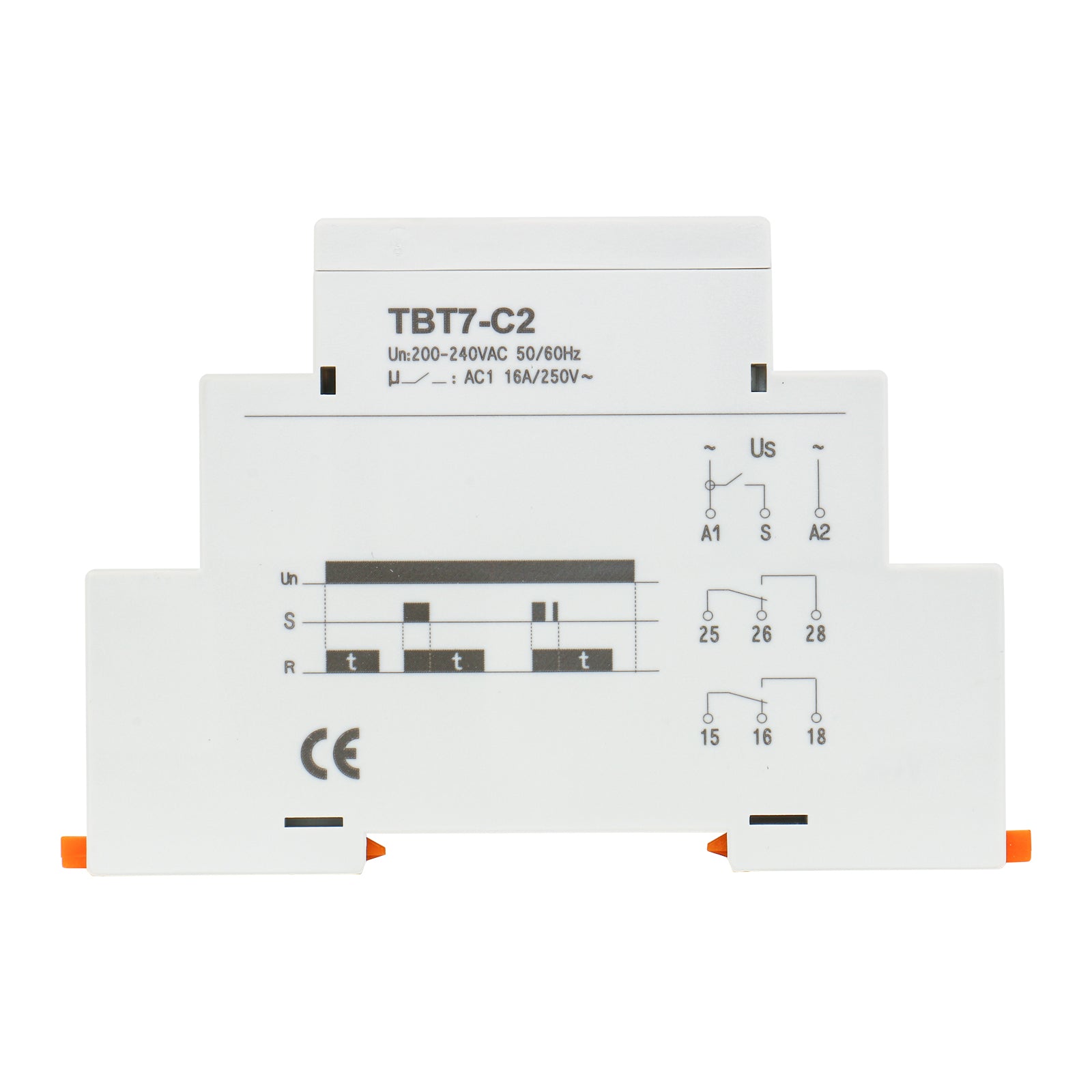

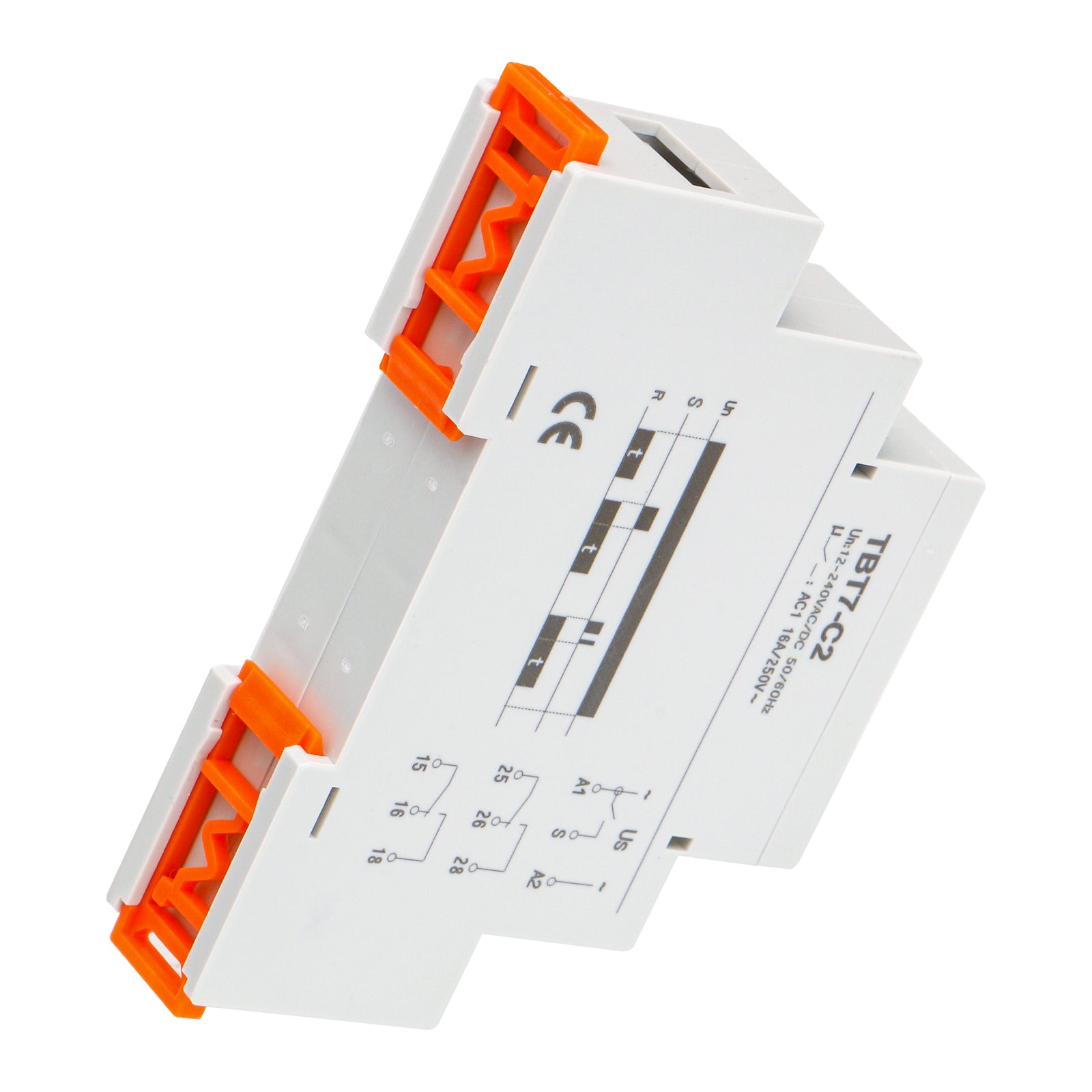

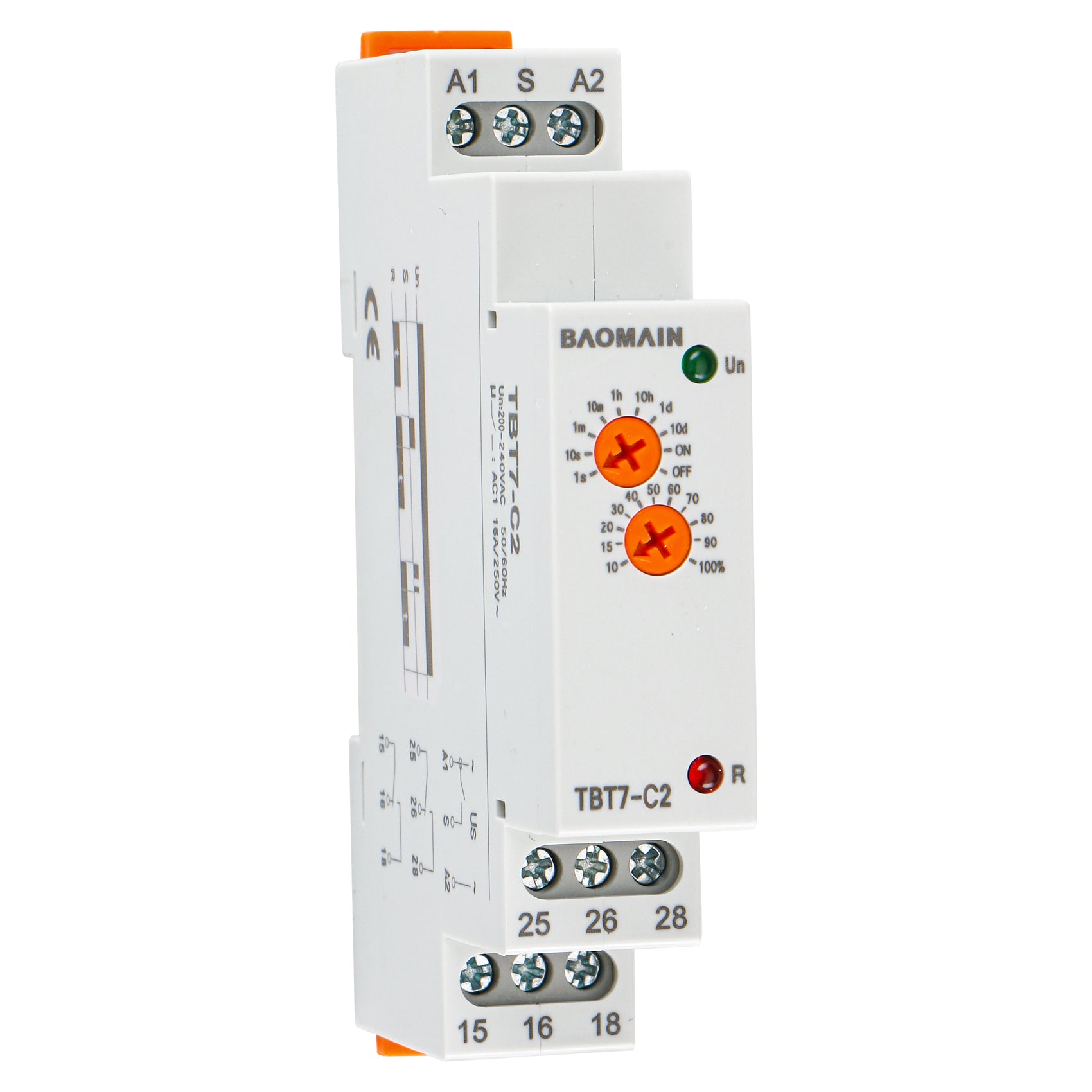

Baomain Multi-Function Time Relay, 16A Delay Off SPDT, DIN Rail Mounting Timer Relay TBT7-C2

  • $15.89
    Unit price per
Shipping calculated at checkout.


    The time relay can be used for Pump delay time after switching heating off,switching of fans.

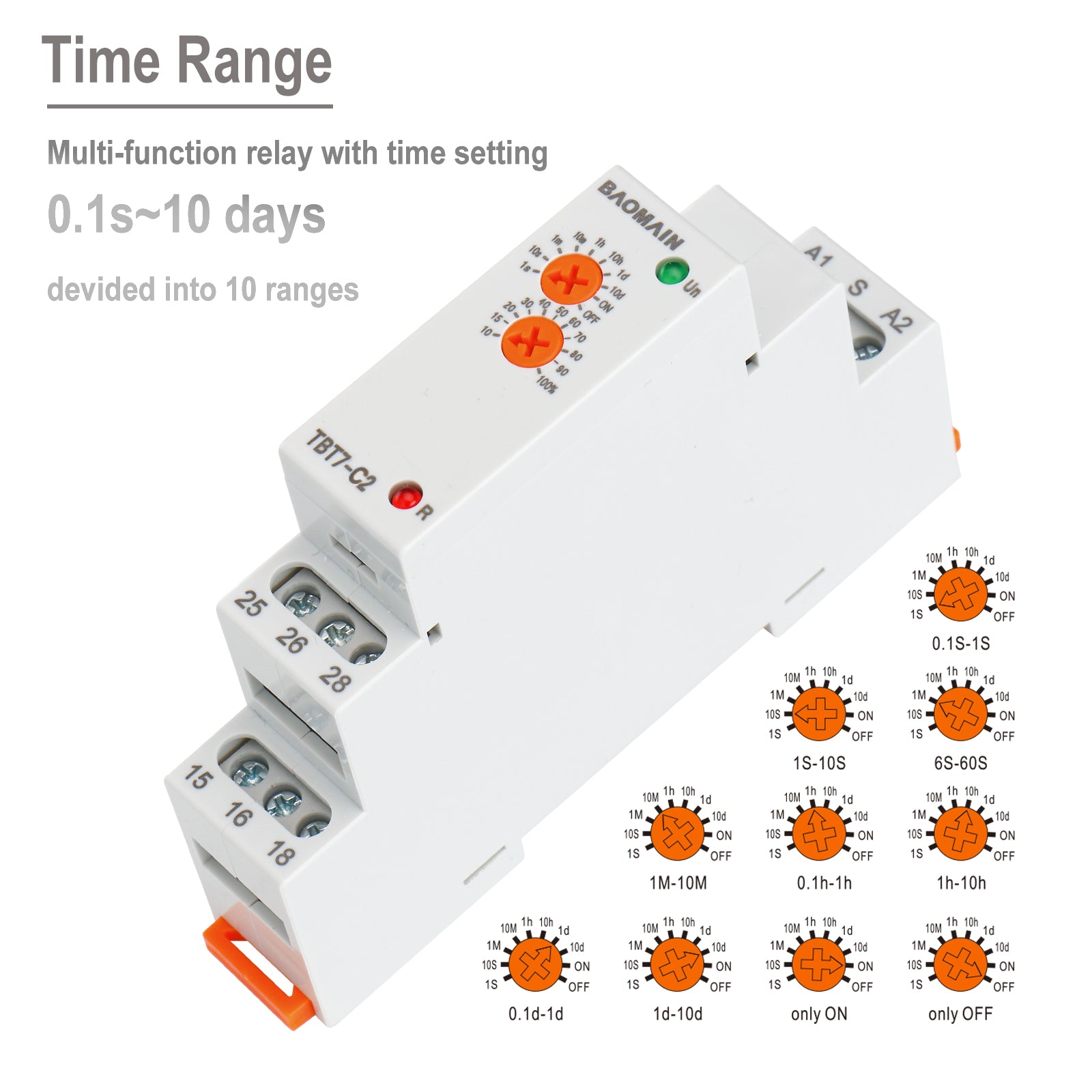

    • Time Range: 0.1s-10days,ON,OFF;
    • Function: Delay OFF
    • Voltage Range: 12V-240VAC/DC,200V-240V,50-60Hz
    • Power Input:AC max.6VA/1.3W-1.9W;
    • Bueden: AC0.09-3VA/DC0.05-1.7W

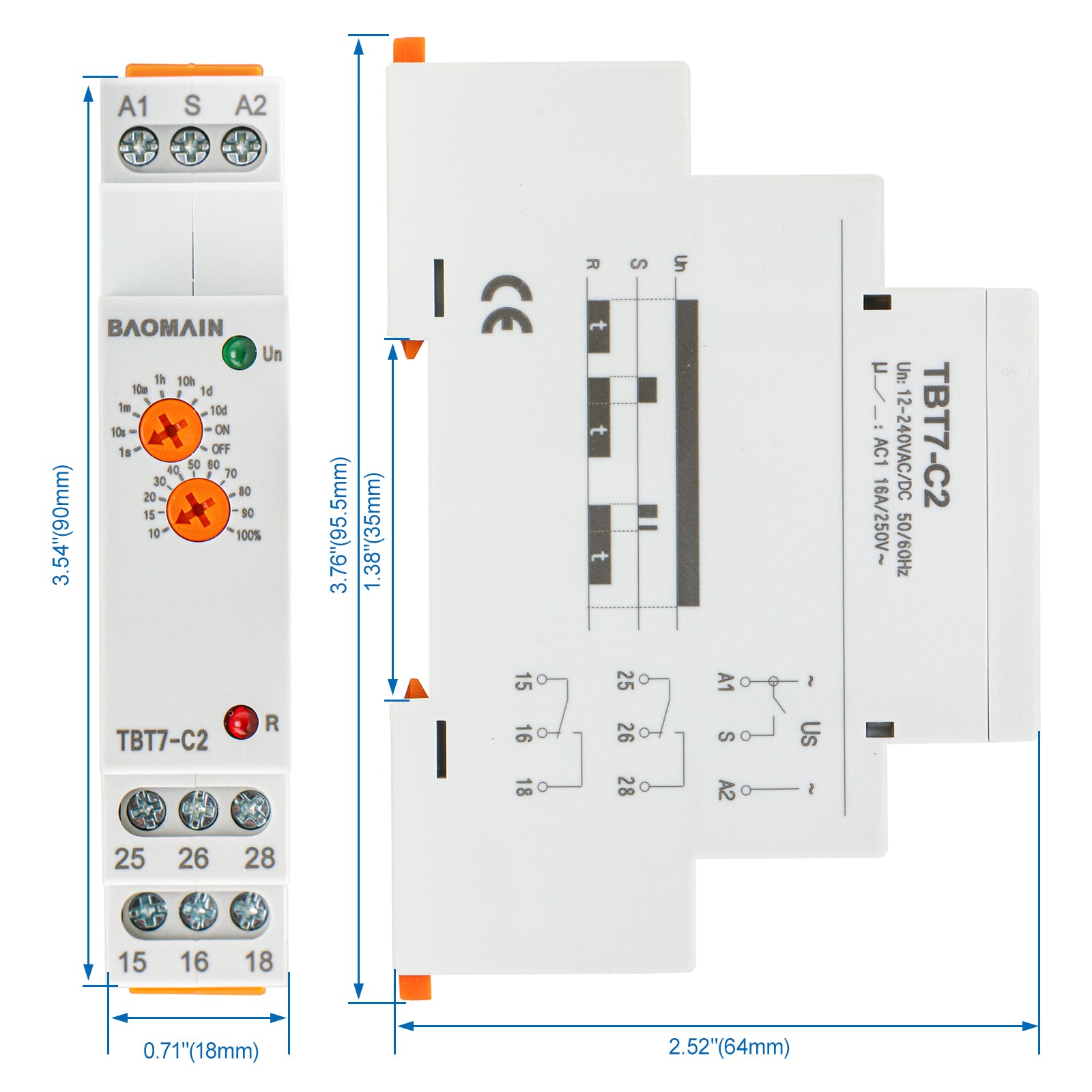

    • Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH);
    • Weight: 70g;
    • Package Includes: 1 x Time Relay, Instruction

    TECHNICAL PARAMETERS

    • Function: Delay OFF
    • Supply Terminals:A1-A2
    • Burden: AC0.09-3VA/DC0.05-1.7W
    • Supply voltage tolerance: -15%; +10%
    • Supply Indication: Green Led
    • Time setting: Potentionmeter
    • Time deviation: 10%-Mechanical setting
    • Repeat accuracy: <0.2%-Set valve stability
    • Temperature coefficient: 0.05%/°C,at=20°C(0.05%°F=at 68°F)
    • Output: 2 x SPDT; Current Rating: 2x16A (AC1)
    • Switching voltage: 250VAC/24VDC
    • Min. breaking capacity DC: 500mW
    • Mechanical Life: 1x10,000,000 cycles
    • Electrical Life(AC1): 100,000 cycles
    • Reset time: max.200ms
    • Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
    • Storage Temperature: -35°C ~ 75°C / -22°F ~ 167°F
    • Protection Degree: IP20
    • Overvoltage cathegory: III
    • Pollution degree:2
    • Installation: DIN rail mounting or Screw mounting
    • Max.cable (size): Solid wire max.1x2.5 or 2x1.5/with sleeve max. 1x2.5(AWG12)
